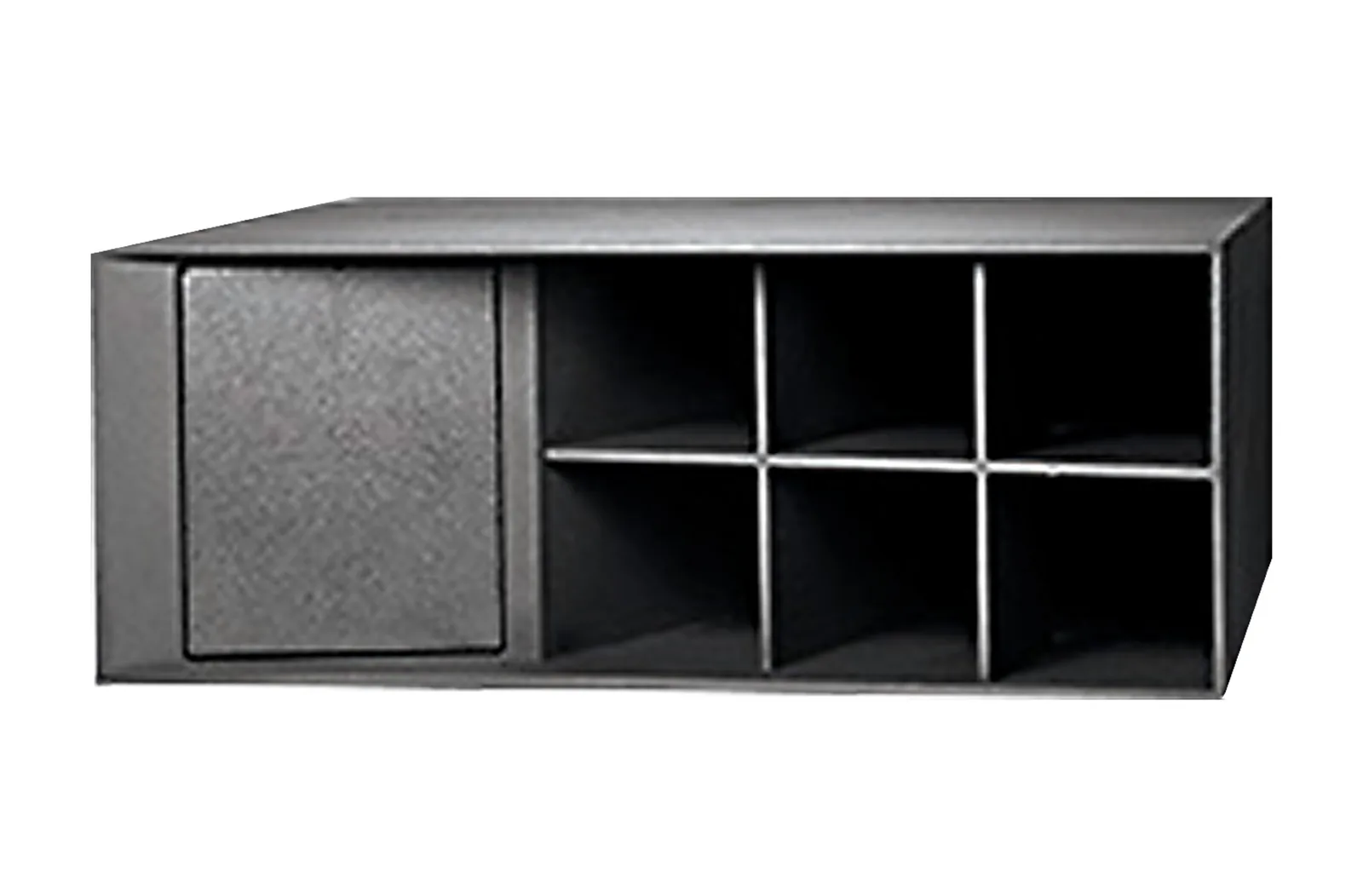

The ASH6118 is a horn-loaded subwoofer 1 x 18" 2242H SVG driver. Frequency range is 1 cabinet: 25 Hz - 250 Hz, 2 cabinets: 24 Hz - 250 Hz, 4 cabinets: 22 Hz - 250 Hz. JBL rates it at 1 cabinet: 800 W (3200 W peak), 100 hrs2 cabinets: 1600 W (6400 W, peak), 100 hrs4 cabinets: 3200 W (12800 W peak), 100 hrs. Maximum SPL at 1 m is 30 Hz - 140 Hz:1 cabinet: 133 dB-SPL, cont avg (139 dB peak)2 cabinets: 138 dB-SPL cont avg (144 dB peak)4 cabinets: 144 dB-SPL cont avg (150 dB peak). Nominal impedance is 8 ohms per cabinet. Sensitivity is 30 Hz - 150 Hz:1 cabinet: 102 dB2 cabinets: 104 dB4 cabinets: 107 dB|.

Designed to be used in multiples (2 minimum, 4 optimum) with proximity placement or with proper boundary surface loading. Maximum low frequency output & sensitivity. ASH6118 is a high power hornloaded subwoofer system comprised of one 460 mm (18 in) SVG Super Vented Gap low frequency driver.

Type	Horn-Loaded Subwoofer 1 x 18" 2242H SVG Driver
Frequency Range (-10dB)	1 cabinet: 25 Hz - 250 Hz, 2 cabinets: 24 Hz - 250 Hz, 4 cabinets: 22 Hz - 250 Hz
Frequency Response (+/-3 dB)	1 cabinet: 30 Hz - 200 Hz, 2 cabinets: 28 Hz - 200 Hz, 4 cabinets: 26 Hz - 200 Hz
Transducer Power Rating (AES)	1 cabinet:1200 W (4800 W peak), 2 hrs, 800 W (3200 W peak), 100 hrs2 cabinets: 2400 W (9600 W peak), 2 hrs1600 W (6400 W peak), 100 hrs4 cabinets: 4800 W (19200 W peak), 2 hrs3200 W (12800 W peak), 100 hrs
System Power Rating	1 cabinet: 800 W (3200 W peak), 100 hrs2 cabinets: 1600 W (6400 W, peak), 100 hrs4 cabinets: 3200 W (12800 W peak), 100 hrs
Maximum SPL (1m)	30 Hz - 140 Hz:1 cabinet: 133 dB-SPL, cont avg (139 dB peak)2 cabinets: 138 dB-SPL cont avg (144 dB peak)4 cabinets: 144 dB-SPL cont avg (150 dB peak)
System Sensitivity (1w @ 1m)	30 Hz - 150 Hz:1 cabinet: 102 dB2 cabinets: 104 dB4 cabinets: 107 dB\|
Nominal Impedance	8 ohms per cabinet
