JBL AM7212/26 12-inch 2-Way Loudspeaker with 120 degrees x 60 degrees Horn

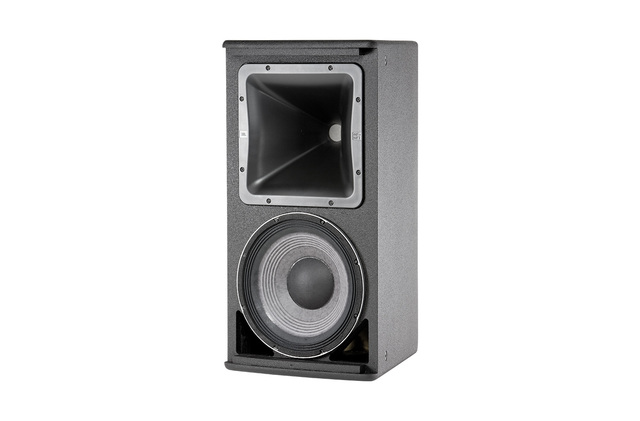

The AM7212/26 is a 12-inch 2-Way loudspeaker with 120 degrees x 60 degrees horn, part of JBL's AE Series installed range. The low-frequency section uses 1 x JBL 2262H 300 mm (12 in) Differential Drive driver with 75 mm (3 in) dual voice coil. High frequencies come from JBL 2432H, 38 mm (1.5 in) exit compression driver, 75 mm (3 in) voice coil. Nominal coverage is /64: 60 degrees x 40 degrees /66: 60 degrees x 60 degrees /95: 90 degrees x 50 degrees /00: 100 degrees x 100 degrees /26: 120 degrees x 60 degrees. Frequency range is 36 Hz - 20 kHz. JBL rates it at Passive mode: 600 W (2400 W peak), 100 hrs (IEC rated).

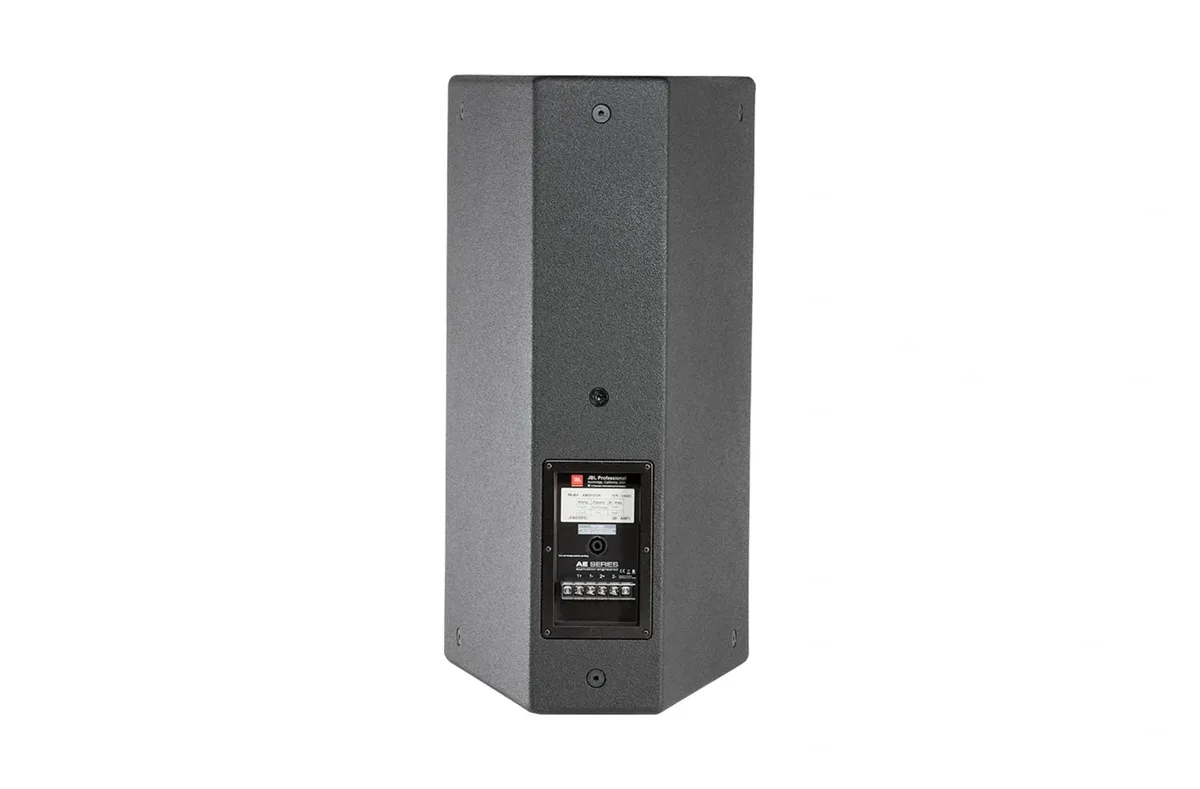

The enclosure is Trapezoidal with 15 degree side angles, 16 mm (5/8 in) exterior grade 11-ply Finnish birch plywood. Crossover: Bi-amp/Passive switchable. Rigging: 15 points (4 top, 4 bottom, 2 each side, 3 rear), M10 threaded hardware. Environmental rating: Mil-Std 810; IP-x3 per IEC529. It measures 711 x 369 x 458 mm (28 x 14.5 x 18 in). Net weight is 23.1 kg (51 lb).
