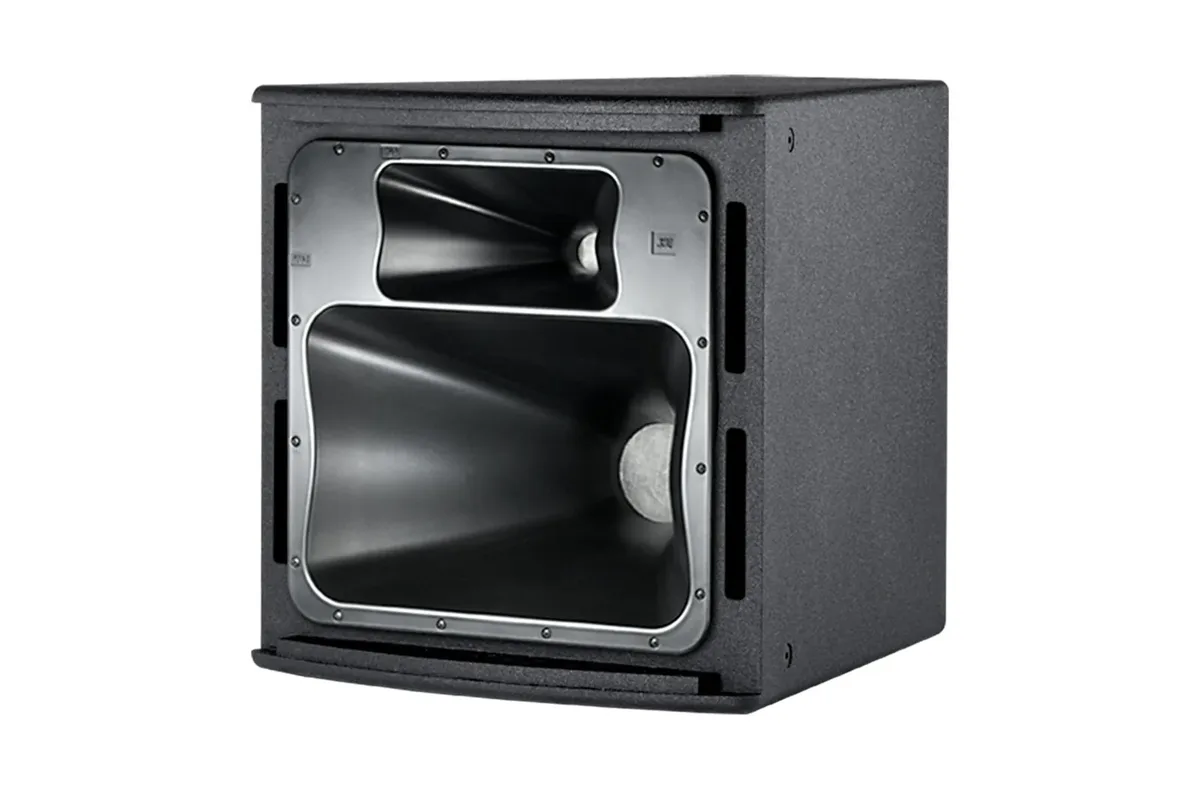

The AM7200/64 /95 is a high power mid-high frequency, part of JBL's AE Series installed range. High frequencies come from JBL 2432H, 38 mm (1.5 in) exit compression driver, 75 mm (3 in) voice coil. Nominal coverage is /64: 60 degrees x 40 degrees, rotatable waveguide/95: 90 degrees x 50 degrees, rotatable waveguide. Frequency range is 260 Hz - 20 kHz. JBL rates it at MF/HF: 200 W (800 W peak), 100 hrs. Maximum SPL at 1 m is Bi-amp mode: MF: 133 dB-SPL cont avg (139 dB peak) HF: 135 dB-SPL cont avg (141 dB peak) Passive mode: MF/HF: 133 dB-SPL cont avg (139 dB peak).

The enclosure is Trapezoidal with 15 degree side angles, 16 mm (5/8 in) exterior grade 11-ply Finnish birch plywood. The grille is Powder coated 14 gauge perforated steel, with acoustically transparent black foam backing. Finish is Black DuraFlex finish. White available upon request. Crossover: Bi-amp/Passive switchable. Rigging: 13 points (3 top, 3 bottom, 2 each side, 3 rear), M10 threaded hardware. Environmental rating: Mil-Std 810; IP-x3 per IEC529.

Type	High Power Mid-High Frequency
Frequency Range (-10dB)	260 Hz - 20 kHz
Frequency Response (+/-3 dB)	330 Hz - 18 kHz
Coverage Pattern	/64: 60 degrees x 40 degrees, rotatable waveguide/95: 90 degrees x 50 degrees, rotatable waveguide
Crossover Modes	Bi-amp/Passive switchable
Crossover Frequency	2.3 kHz
Transducer Power Rating (AES)	MF: 350 W (1400 W peak), 2 hrsHF: 100 W (400 W peak), 2 hrs
System Power Rating	MF/HF: 200 W (800 W peak), 100 hrs
Maximum SPL (1m)	Bi-amp mode: MF: 133 dB-SPL cont avg (139 dB peak) HF: 135 dB-SPL cont avg (141 dB peak) Passive mode: MF/HF: 133 dB-SPL cont avg (139 dB peak)
