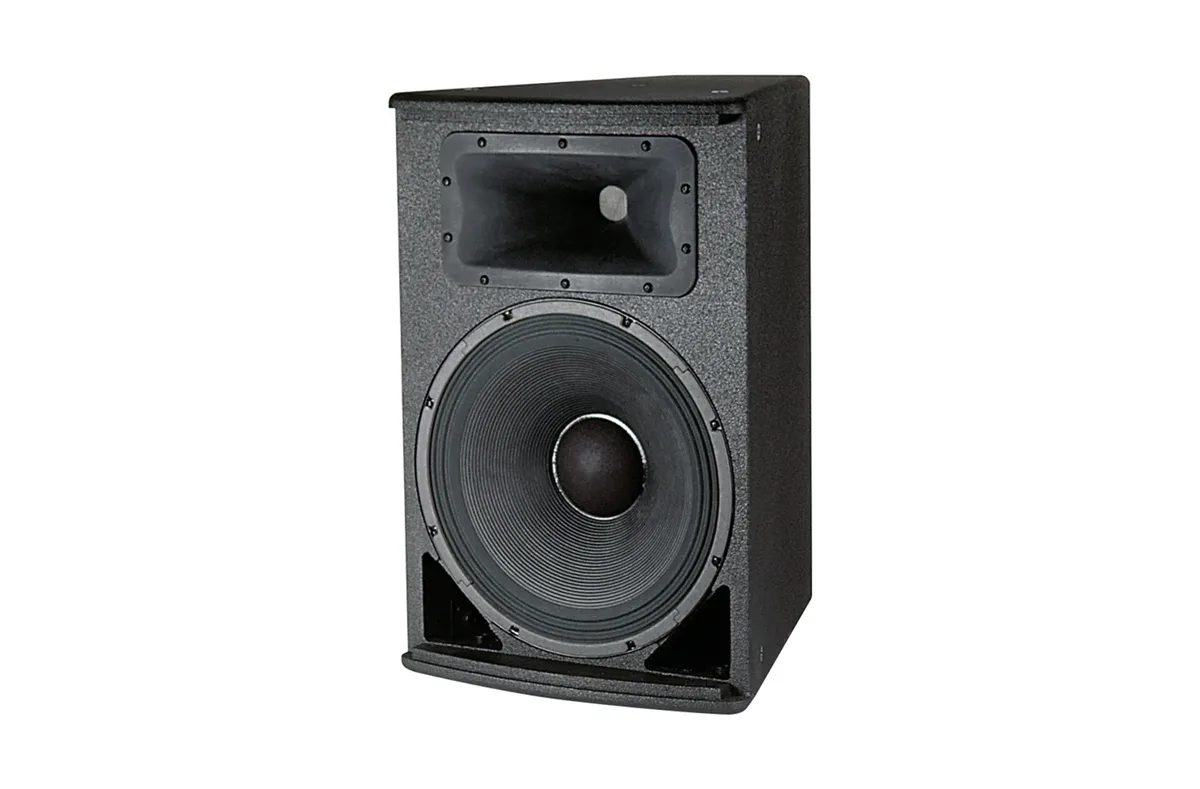

JBL AC2215/64, AC2215/95 and AC2215/00 Compact 2-Way Loudspeaker with 1 x 15" LF

The AC2215/64 /95 /00 is a compact 2-Way loudspeaker with 1 x 15" LF, part of JBL's AE Series installed range. Nominal coverage is /64: 60 degrees x 40 degrees /95: 90 degrees x 50 degrees /00: 100 degrees x 100 degrees. Frequency range is 42 Hz - 19 kHz (-10 dB). JBL rates it at Passive mode: 250 W (1000 W peak), 100 hrs. Maximum SPL at 1 m is Bi-amp mode: LF: 121 dB-SPL cont avg (127 dB peak) HF: 129 dB-SPL cont avg (135 dB peak) Passive mode: 121 dB-SPL cont avg (127 dB peak).

Crossover: Bi-amp/Passive switchable. Ordering covers AC2215/64, White, White and White; pick the one you need above and the SKU and price follow your choice. PT Progressive Transition Waveguide for good pattern control with low distortion.

Type	Compact 2-Way Loudspeaker with 1 x 15" LF
Frequency Range	42 Hz - 19 kHz (-10 dB)
Frequency Response	50 Hz - 17 kHz ( +/- 3 dB)
Coverage Pattern	/64: 60 degrees x 40 degrees /95: 90 degrees x 50 degrees /00: 100 degrees x 100 degrees
Crossover Modes	Bi-amp/Passive switchable
Passive Crossover Slopes	4th order (24 dB/oct) Linkwitz-Riley HP & LP, 2.2 kHz
Transducer Power Rating (AES)	LF: 275 W (1100 W peak), 2 hrs 250 W (1000 W peak), 100 hrs HF: 30 W (120 W peak), 2 hrs
System Power Rating	Passive mode: 250 W (1000 W peak), 100 hrs
Maximum SPL (1m)	Bi-amp mode: LF: 121 dB-SPL cont avg (127 dB peak) HF: 129 dB-SPL cont avg (135 dB peak) Passive mode: 121 dB-SPL cont avg (127 dB peak)
