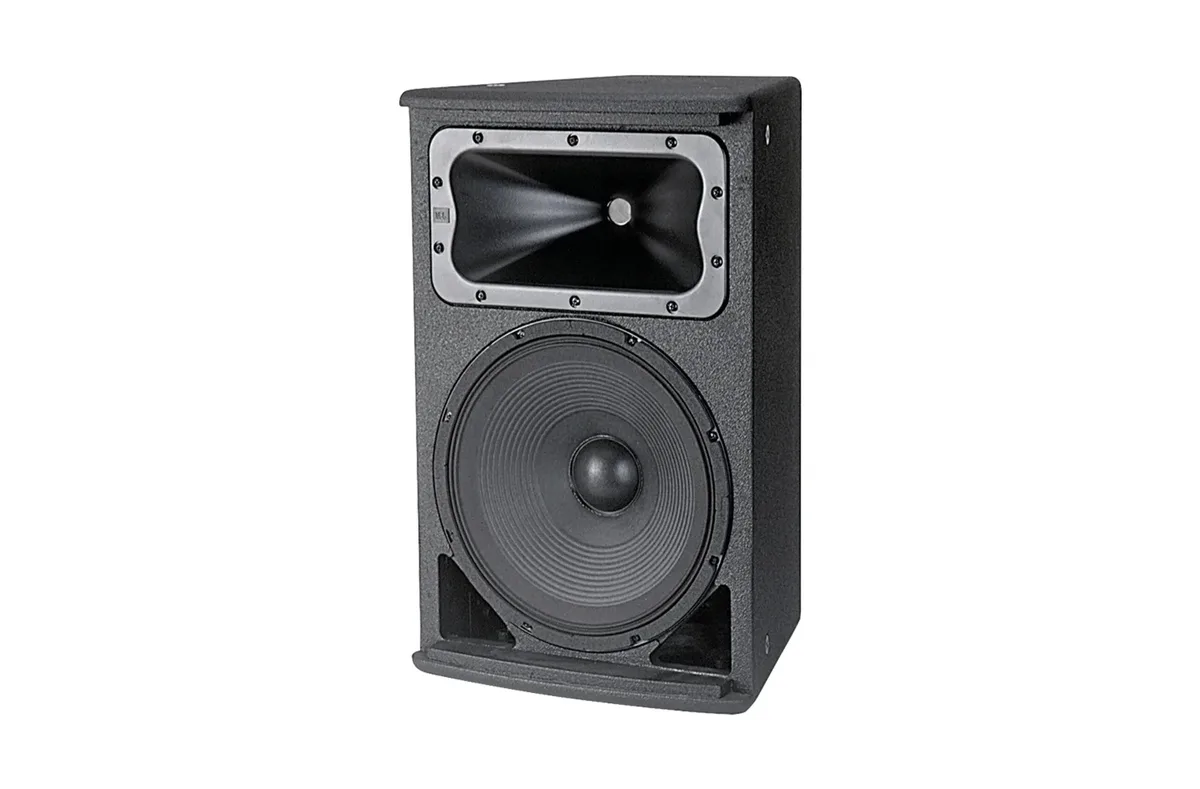

JBL AC2212/95 Compact 2-Way Loudspeaker with 1 x 12" LF

The AC2212/95 is a compact 2-Way loudspeaker with 1 x 12" LF, part of JBL's AE Series installed range. Nominal coverage is /64: 60 degrees x 40 degrees /95: 90 degrees x 50 degrees /00: 100 degrees x 100 degrees. Frequency range is 50 Hz - 19 kHz (-10 dB). JBL rates it at Passive mode: 250 W (1000 W peak), 100 hrs. Maximum SPL at 1 m is Bi-amp mode: LF: 120 dB-SPL cont avg (126 dB peak) HF: 129 dB-SPL cont avg (135 dB peak) Passive mode: 120 dB-SPL cont avg (126 dB peak).

Crossover: Bi-amp/Passive switchable. Ordering covers AC2212/95 and White; pick the one you need above and the SKU and price follow your choice. PT Progressive Transition Waveguide for good pattern control with low distortion.

Type	Compact 2-Way Loudspeaker with 1 x 12" LF
Frequency Range	50 Hz - 19 kHz (-10 dB)
Frequency Response	55 Hz - 17 kHz ( +/- 3 dB)
Coverage Pattern	/64: 60 degrees x 40 degrees /95: 90 degrees x 50 degrees /00: 100 degrees x 100 degrees
Directivity Factor (Q)	7.1
Directivity Index (DI)	8.5 dB
Crossover Modes	Bi-amp/Passive switchable
Passive Crossover Slopes	4th order (24 dB/oct) Transitional HP & LP, 1.3 kHz
Transducer Power Rating (AES)	LF: 300 W (1200 W peak), 2 hrs250 W (1000 W peak), 100 hrsHF: 50 W (200 W peak), 2hrs
