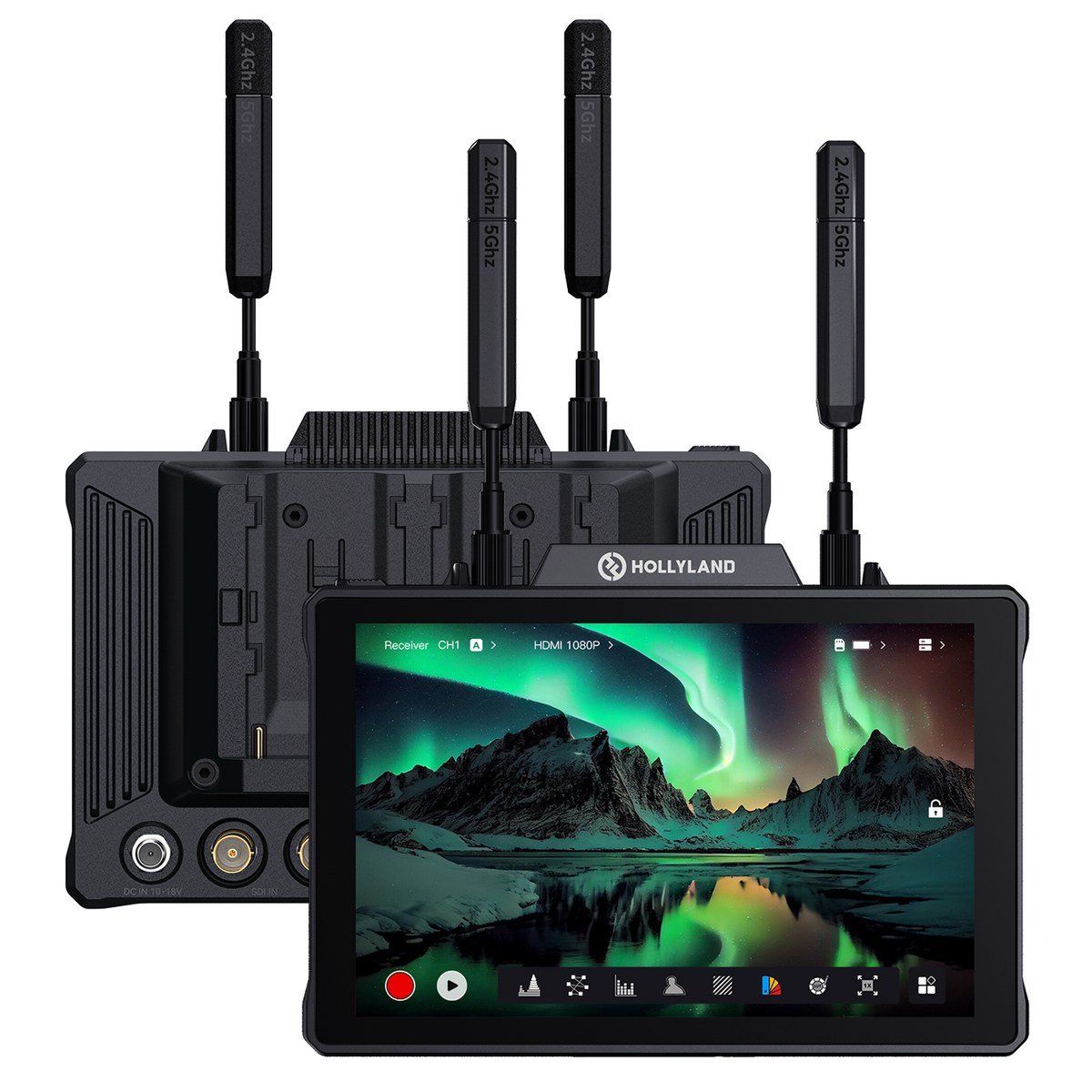

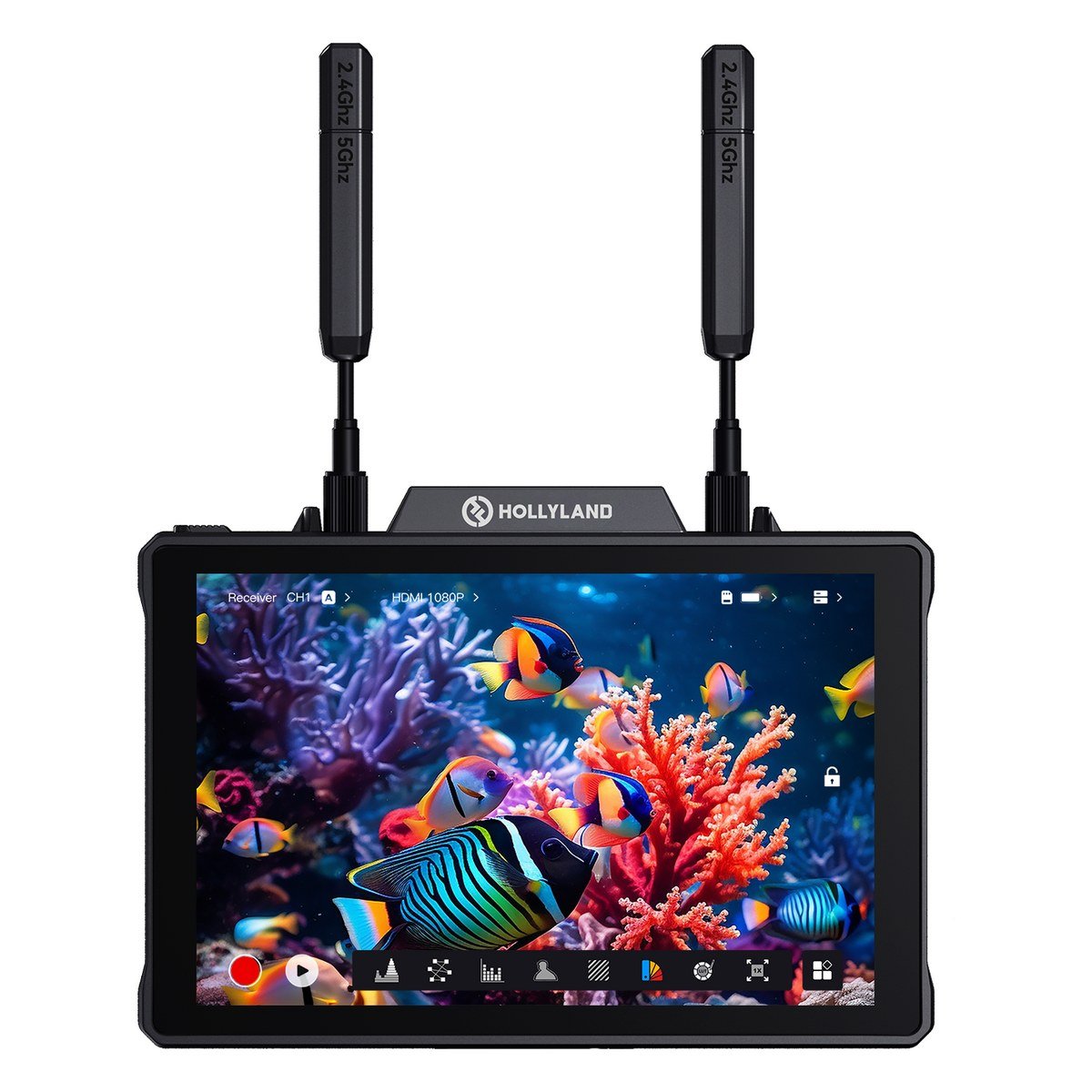

Hollyland Pyro 7 7-Inch Wireless Transceiver Monitor

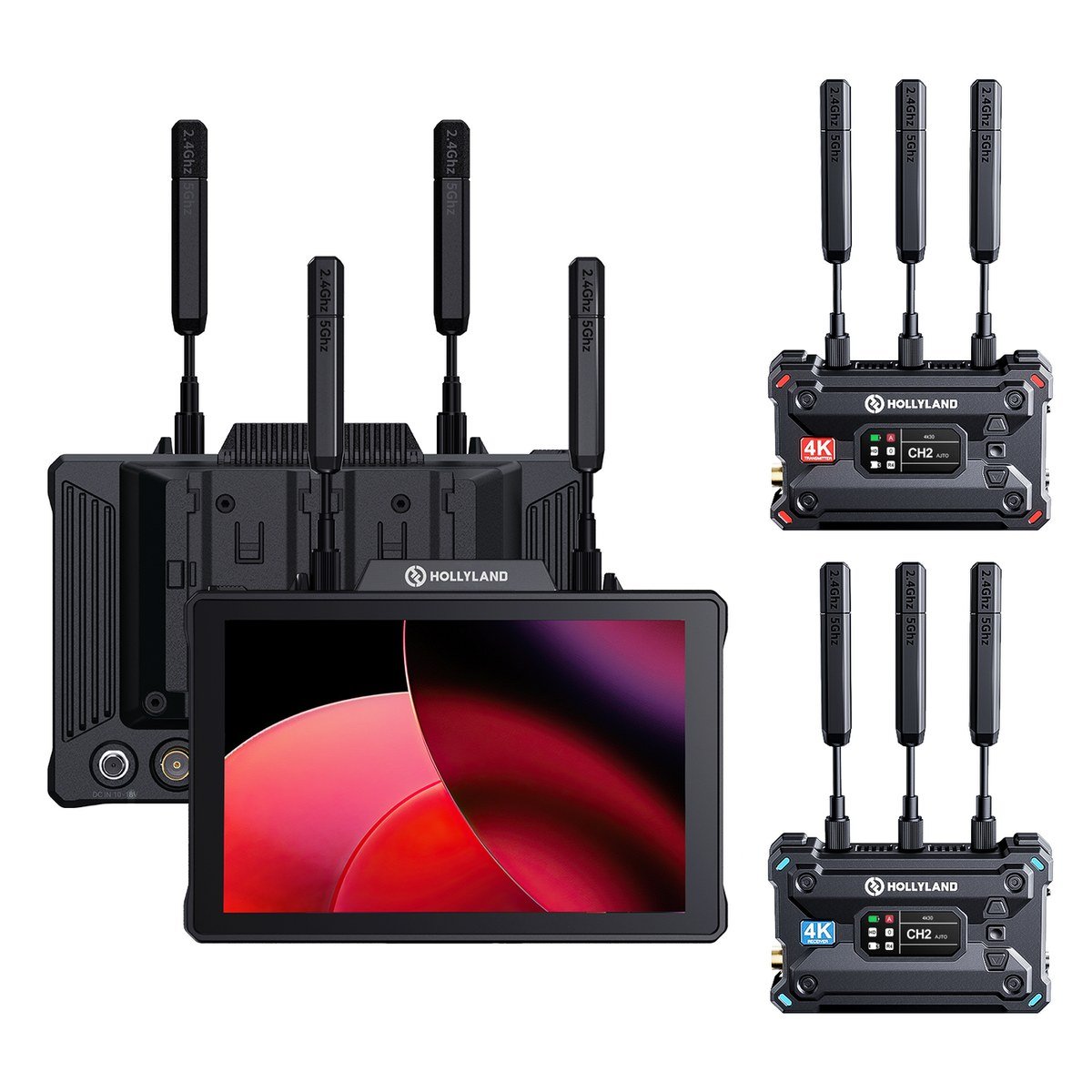

The Pyro 7 collapses the monitor and the wireless link into one box: the same unit works as a transmitter at the camera or as a receiver at the director's chair, so a two-unit kit covers both ends without separate radios hanging off each.
The panel is a 7 inch touchscreen at 1920 x 1200 and 323 PPI with 1500 nits of brightness, which is the figure that decides whether it is readable outdoors. Input and output are HDMI 1.4b and 3G-SDI on both sides, with a 3.5mm headphone jack for audio and an SD card slot alongside USB-C for firmware. The radio reaches 400m (1,300ft) line of sight at 0.05 seconds of latency across 2.4GHz and 5GHz with auto dual-band hopping, transmitting up to 4K30, and streams over UVC and RTMP. It runs on 10 to 18V DC at 2.5A and draws under 22W.
| Screen | 7 inch touchscreen, 1920 x 1200, 323 PPI, 16:9 |
|---|---|
| Brightness / Contrast | 1500 nits, 1000:1 |
| Input / Output | HDMI 1.4b and 3G-SDI in and out |
| Range | 400 m (1,300 ft) line of sight |
| Latency | 0.05 s |
| Bands | 2.4 GHz and 5 GHz with auto dual-band hopping |
| Streaming | UVC and RTMP |
| Audio | 3.5 mm headphone jack |
| Power | 10 - 18V DC at 2.5A (nominal 12V), under 22 W |
| Weight | Approx 570 g with battery plate and external antennas |
