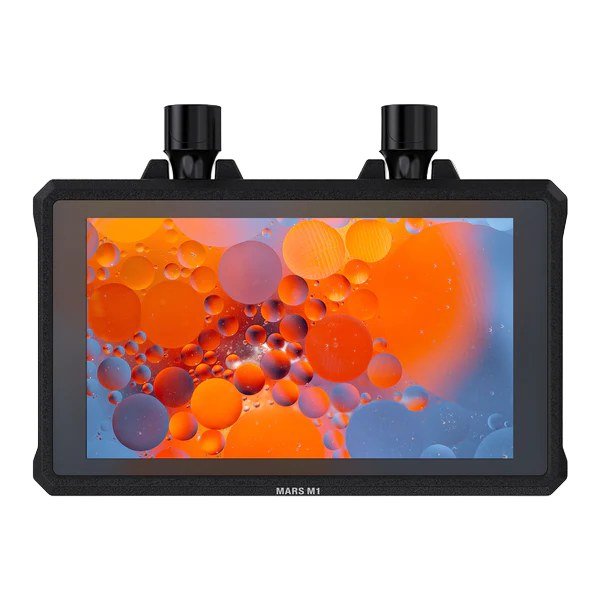

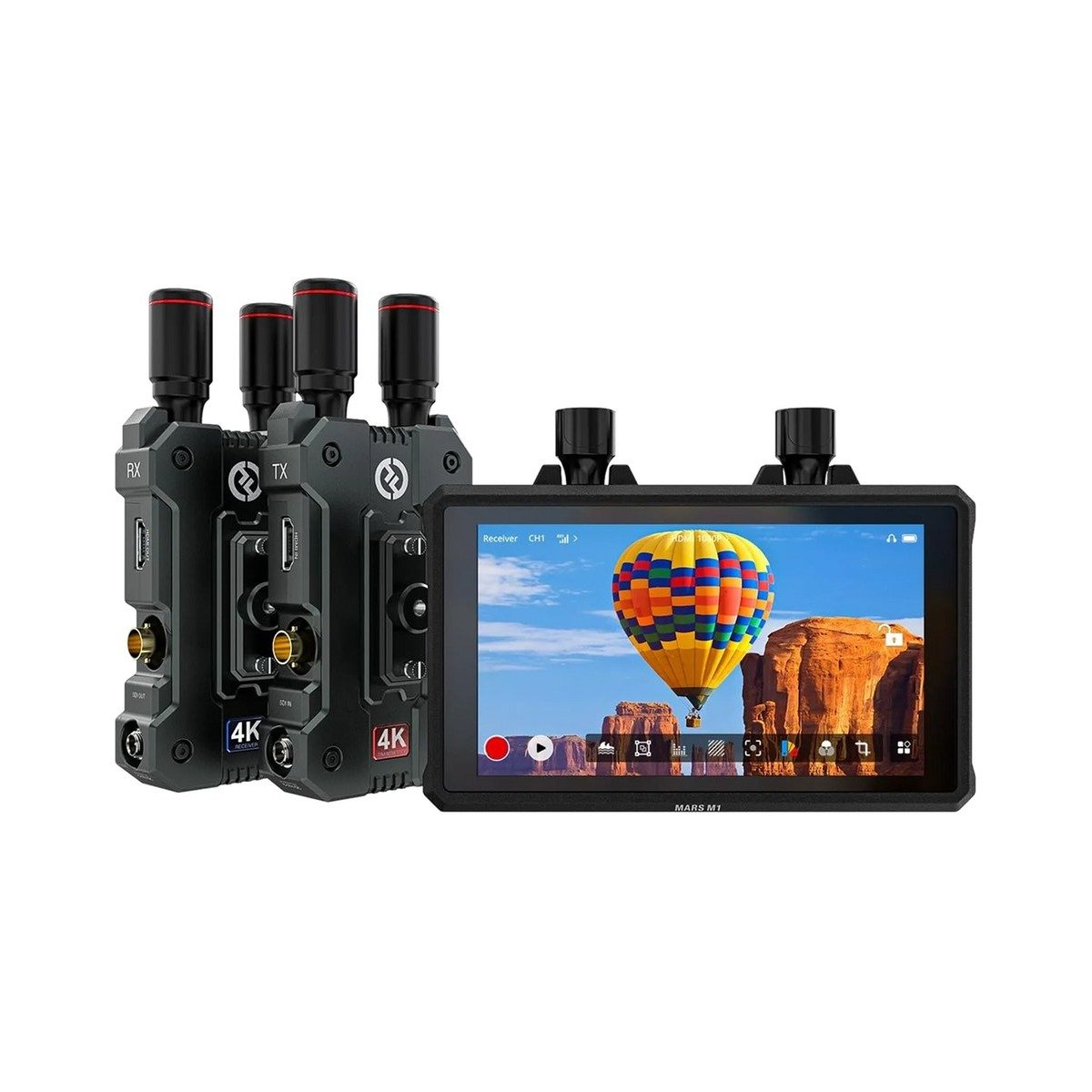

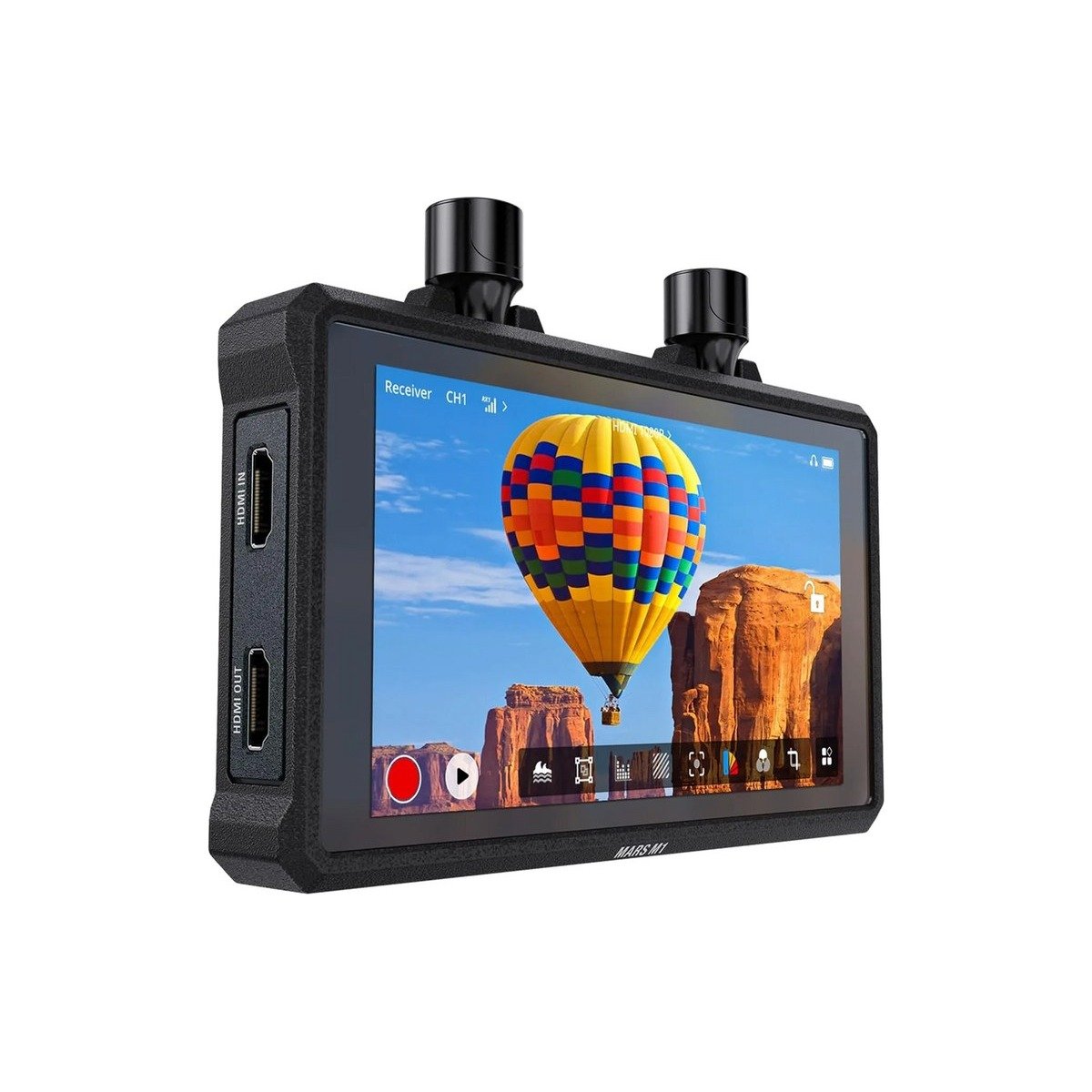

Hollyland Mars M1 Enhanced Wireless Transceiver Monitor

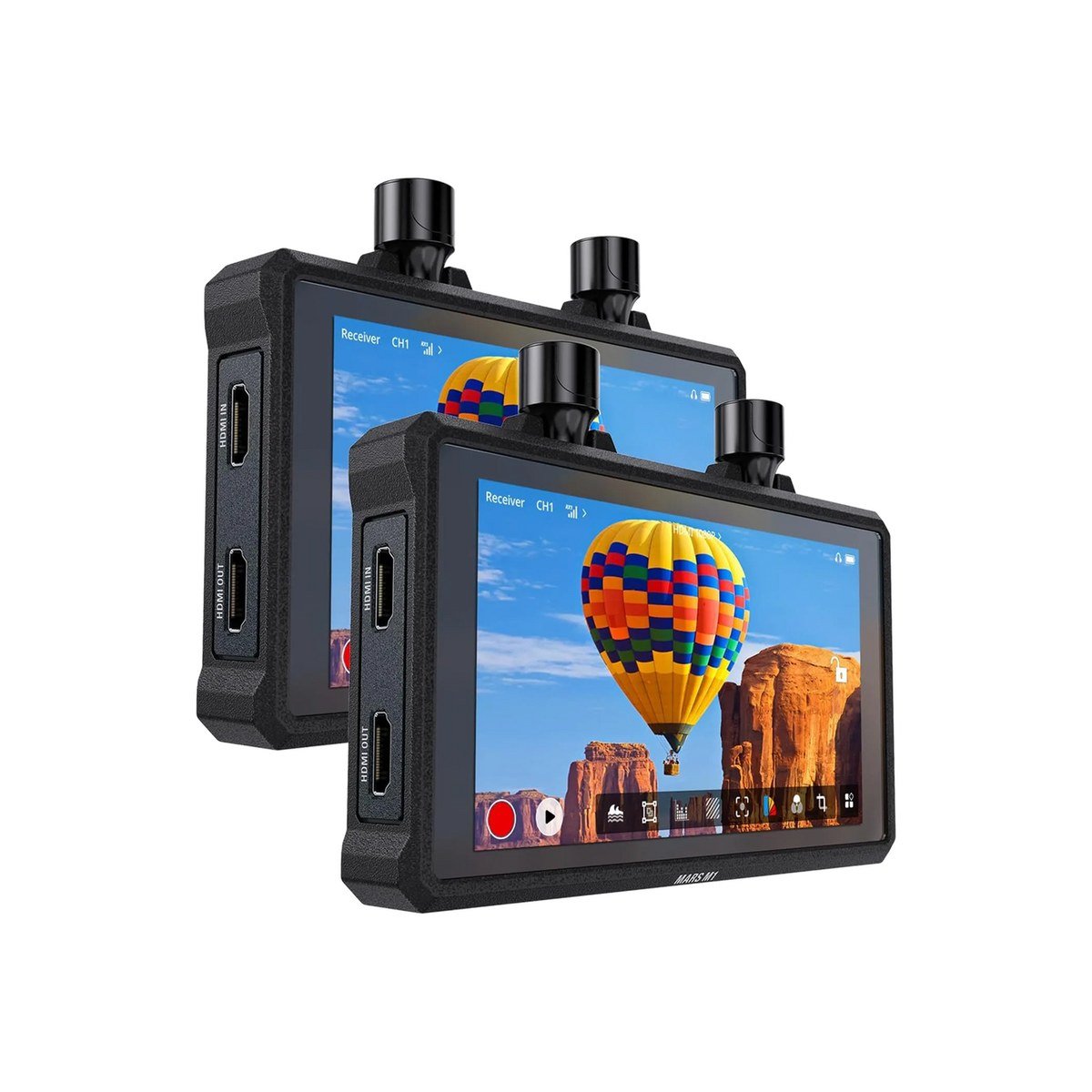

The Mars M1 Enhanced is a transmitter, a receiver and a field monitor in one unit, which is why a pair of them covers a two-position setup with nothing else in the bag. Whichever end it sits at, the operator gets a picture rather than a blinking radio.
The screen is a 5.5 inch touchscreen at 1920 x 1080 and 403 PPI with 1,000 nits and 1000:1 contrast, bright enough to hold up outside. Video comes in on HDMI 1.4b or 3G-SDI with HDMI loop-out, and there are two RP-SMA antenna connectors, a DC input and a DC output for powering an accessory, a 3.5mm headphone jack and USB-C for firmware. The link reaches 150m (450ft) line of sight at 0.08 seconds of latency.
| Function | Transmitter, receiver and monitor in one unit |
|---|---|
| Screen | 5.5 inch touchscreen, 1920 x 1080, 403 PPI, 16:9 |
| Brightness / Contrast | 1,000 nits, 1000:1 |
| Video Input | HDMI 1.4b and 3G-SDI |
| Video Output | HDMI 1.4b loop-out |
| Range | 150 m (450 ft) line of sight |
| Latency | 0.08 s |
| Antennas | Two RP-SMA male connectors |
| Power | DC in (2.0mm core socket) and DC out |
| Audio | 3.5 mm headphone jack |
