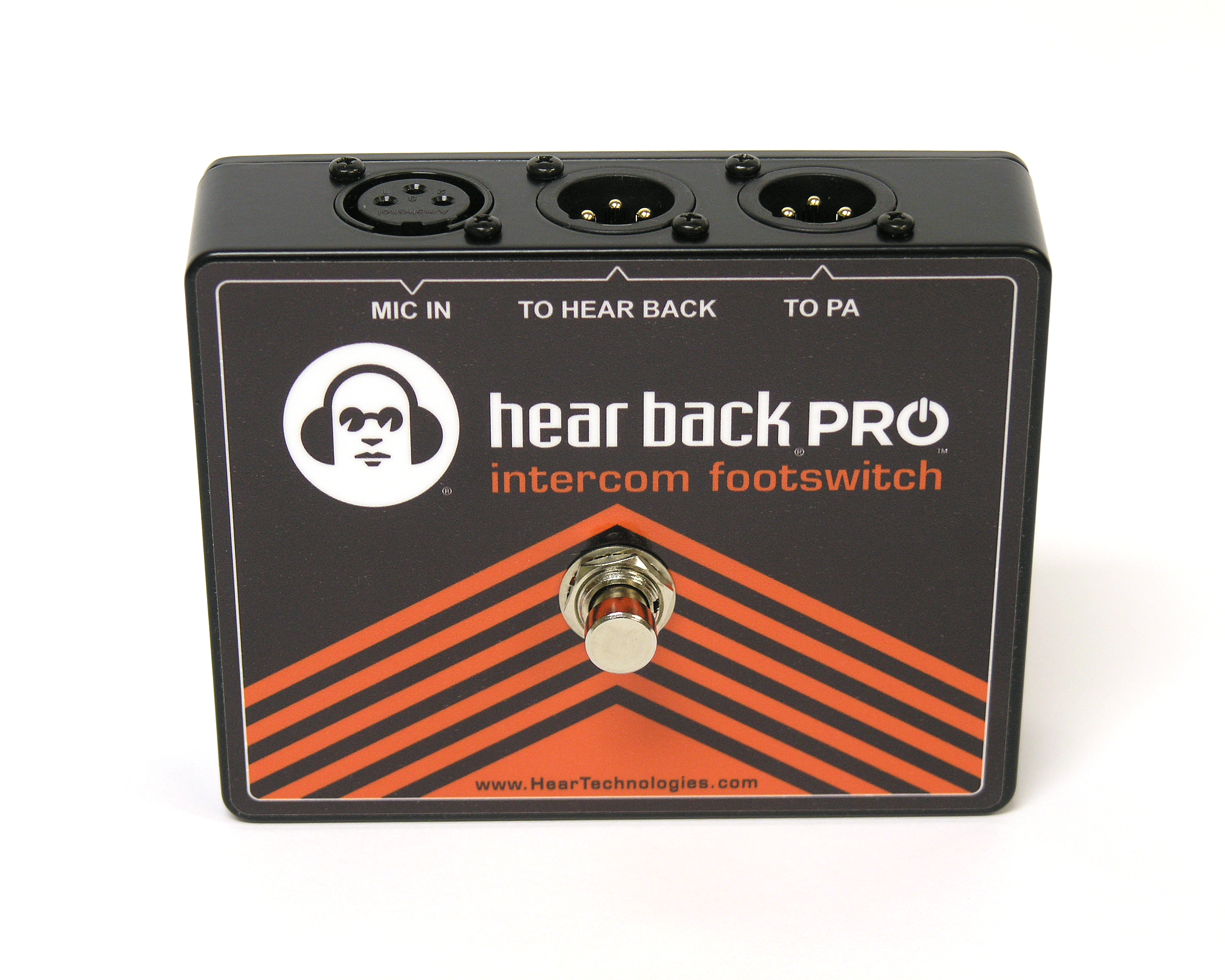

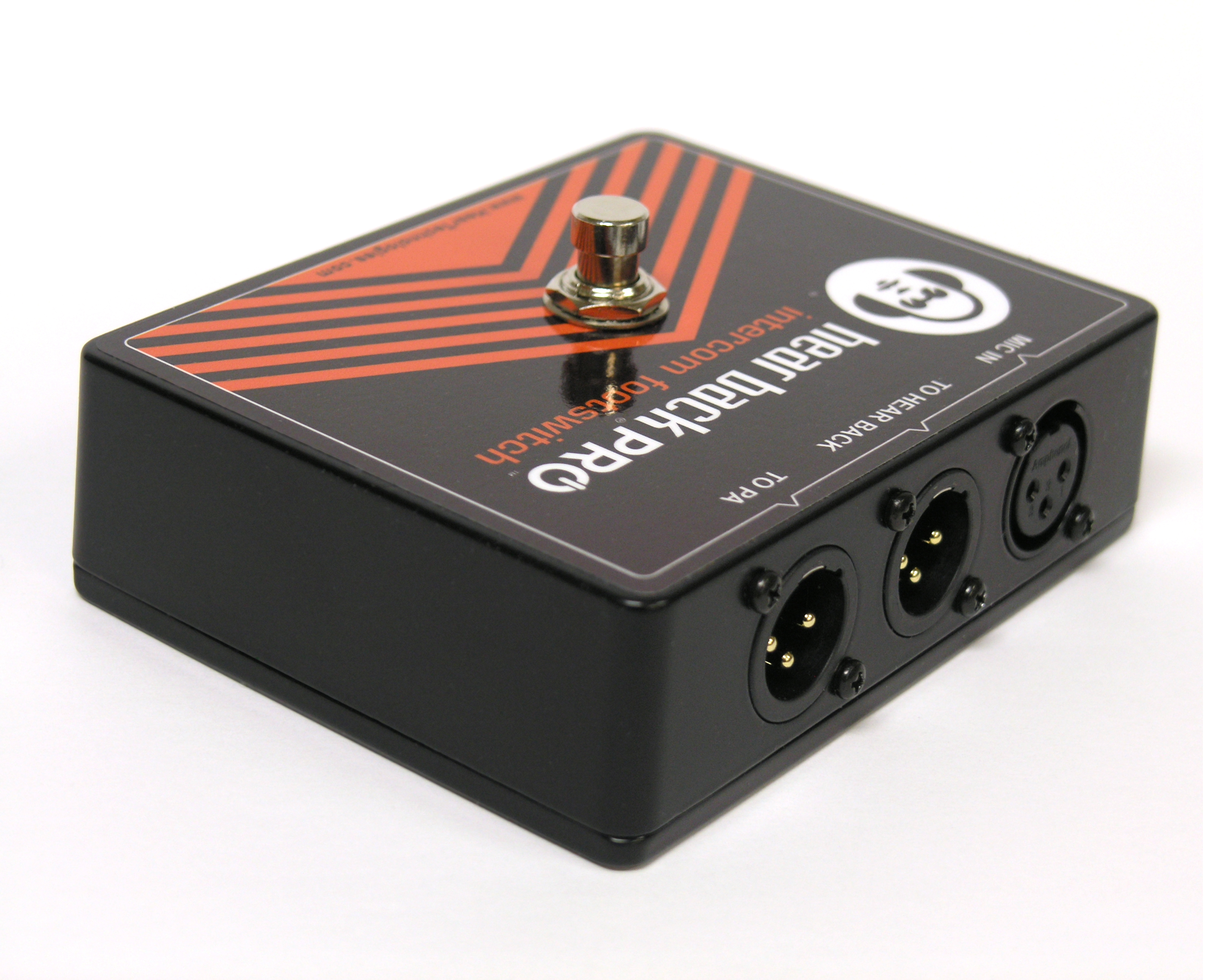

Hear Technologies PRO Intercom Footswitch

The PRO Intercom Footswitch allows a single microphone to serve as both a vocal mic over the PA and an intercom mic on a Hear Back PRO system, switching hands-free between the two with a foot press. It works in any application where a momentary A/B XLR switch is needed, not just Hear Back PRO systems.

A female XLR input takes the microphone, and two male XLR outputs connect to the PA or studio console and to a Hear Back PRO Mixer. All outputs are transformer isolated, and the PA connection passes phantom power through to the microphone with a bypass diode so condenser mics stay powered. It needs no external power or battery to operate.
