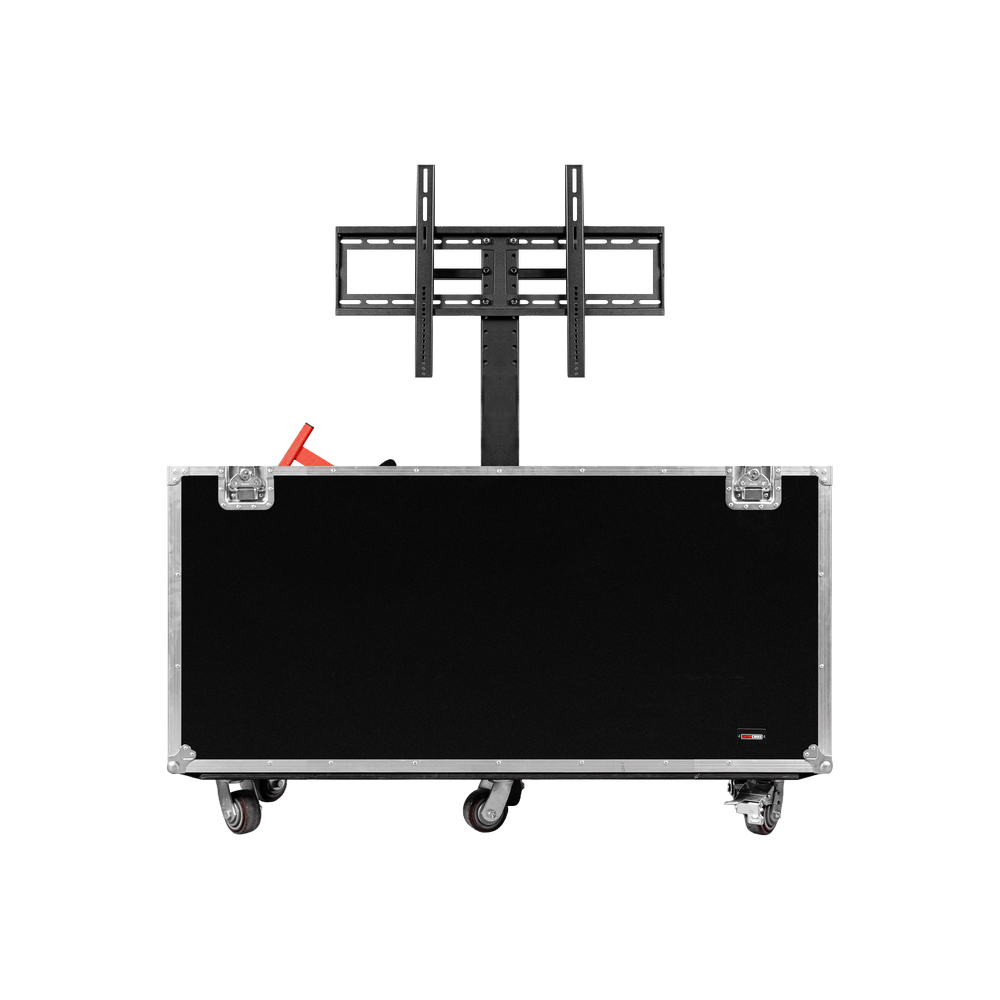

Gator EXPO P Series Piston Lift Case for LED and LCD Screens

The P Series does the same job as the electric ELIFT case without needing a power drop at the stand. A counterbalanced gas piston carries the weight of the display, so one tech raises the screen by hand to a maximum 72.14 in from the floor and locks it there. Lift ratings scale with the size class: 65 lb on the 65 in case, 85 lb on the 75 in, 105 lb on the 86 in and 150 lb on the 98 in.

The body is heavy-duty 12mm plywood with a laminated exterior and commercial-grade plated hardware, on integrated casters with recessed twist latches and spring-loaded rubber grip handles. These are heavy cases - 299.83 lb empty at 65 in, 431.2 lb at 98 in - because the lift mechanism is part of the structure.

Lift	Piston-assisted, non-electric
Maximum Bracket Height	72.14 in from the floor
65 in	Fits panels to 58.2 x 4.0 x 39.7 in - exterior 61.2 x 20.13 x 56.08 in, 299.83 lb, lift 65 lb
75 in	Fits panels to 67.6 x 4.0 x 40.6 in - exterior 70.6 x 20.13 x 56.88 in, 321.87 lb, lift 85 lb
86 in	Fits panels to 77.2 x 4.0 x 46.2 in - exterior 80.2 x 20.13 x 61.98 in, 335.1 lb, lift 105 lb
98 in	Fits panels to 87.7 x 4.0 x 53.0 in - exterior 90.7 x 23.9 x 69.27 in, 431.2 lb, lift 150 lb
Construction	12mm plywood, laminated exterior, commercial-grade plated hardware
Mobility	Integrated casters, recessed twist latches, spring-loaded rubber grip handles
