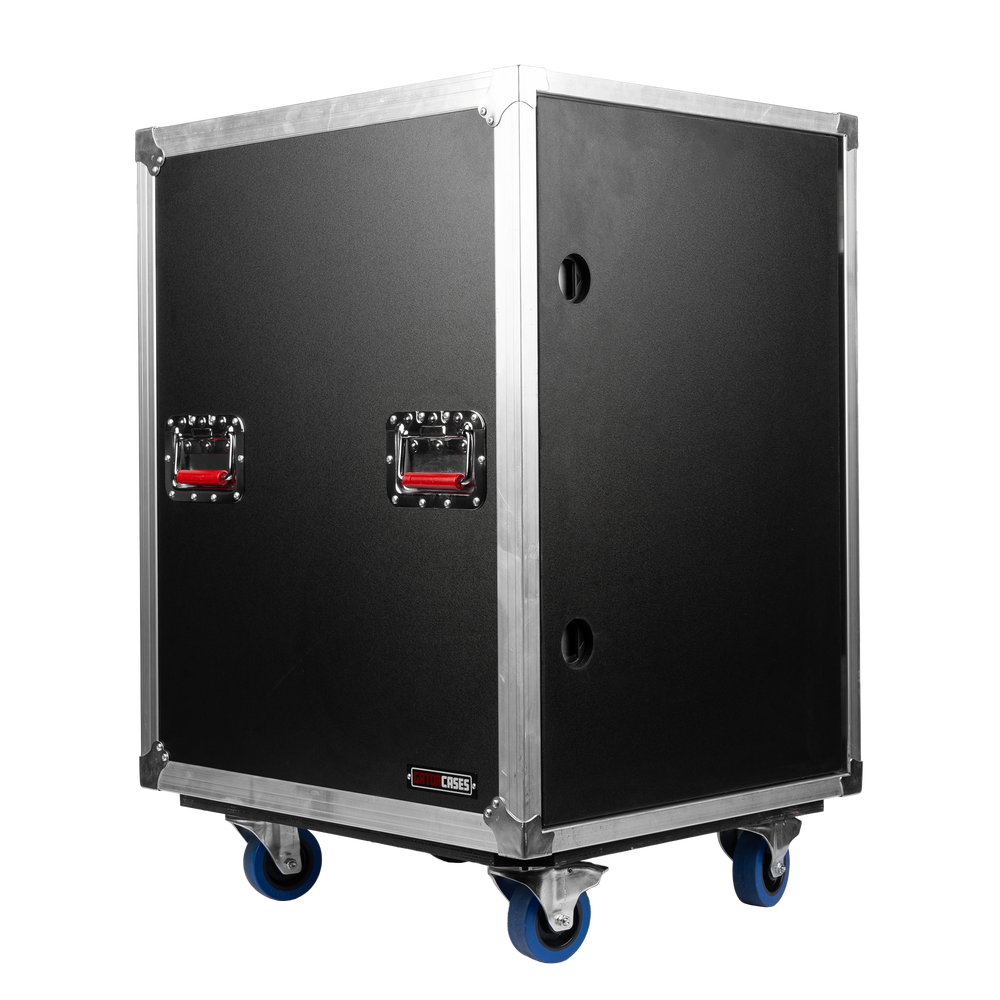

Gator EXPO Series 16U Slam Rack with Sliding Lids
The reason this rack exists is the twenty minutes a crew loses hunting for lids. Both doors slide away into the case, so front and rear access happens in seconds and there is nothing leaning against a wall to trip over or leave behind. Inside is a black powder-coated steel shock-mount frame rated to 330 lb with up to 8 in of rack-depth adjustment, giving 24 in rail-to-rail and 27.5 in of total rackable space.
The shell is 12mm black plywood with a laminated exterior and a tongue-and-groove valance for a positive seal, closed by spring-loaded recessed pull latches and moved by heavy-duty rubber grip handles and four casters, two of them locking. Exterior with wheels measures 27.56 x 23.62 x 39.25 in and the empty rack weighs 120 lb.
| Rack Space | 16U vertical, 24 in rail-to-rail, 27.5 in total rackable depth |
|---|---|
| Access | Two hideaway sliding doors, front and rear |
| Frame | Black powder-coated steel shock-mount, up to 8 in depth adjustment |
| Weight Capacity | 330 lb |
| Construction | 12mm black plywood, laminated exterior, tongue-and-groove valance |
| Latches | Spring-loaded recessed pull latches |
| Mobility | Four casters, two locking |
| Exterior Dimensions | 27.56 x 23.62 x 39.25 in with wheels - 120 lb |
