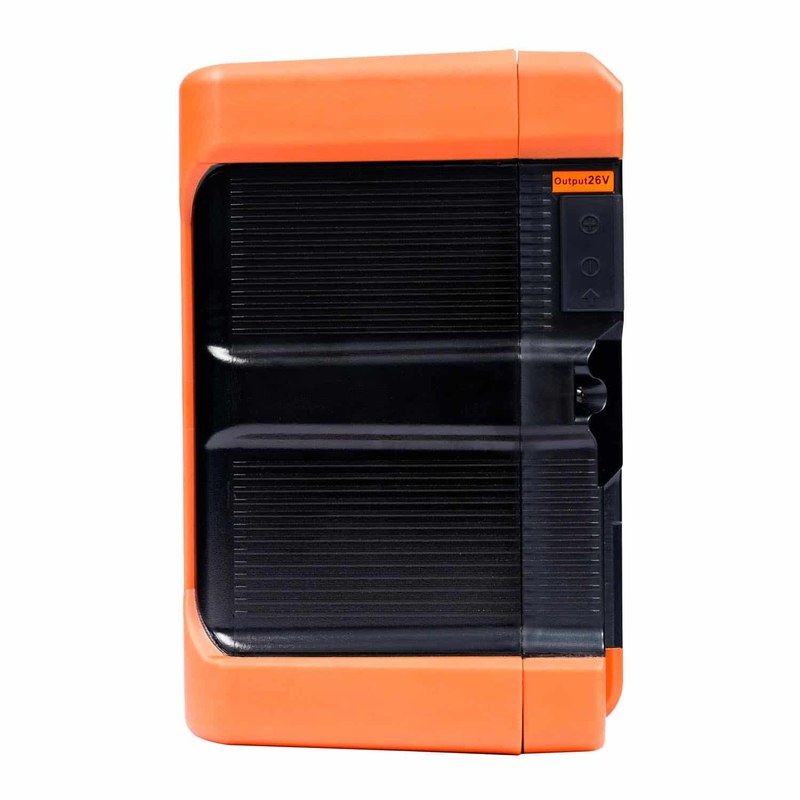

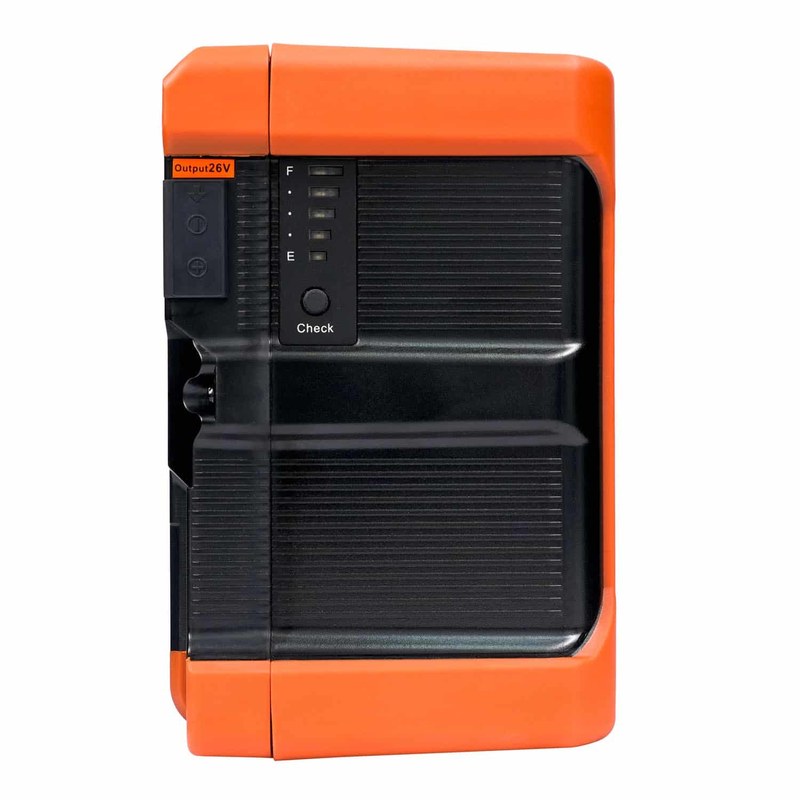

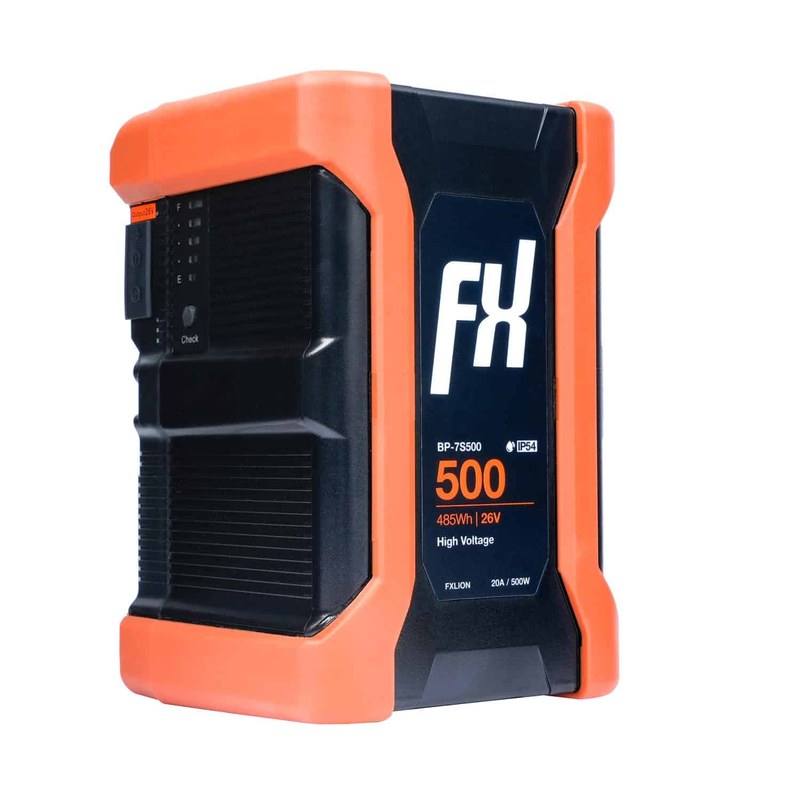

FXLION 26V / 489Wh High Power Waterproof Battery
The BP-7S500 is FXLION's 26V / 489Wh high-power waterproof battery, a V-Mount lithium pack of 19.4Ah built for 500W-class equipment: large LED fixtures, 24V cinema cameras and other film and television gear that can run straight from a battery. The main output delivers 25.2V at 20A (500W), and the integrated shell and output terminal design keeps the pack compact for its capacity.
Nominal voltage is 25.2V (rated) / 29.4V (fully charged). Two D-Tap outputs rated 25.2V / 10A power accessories alongside the main load. An intelligent protection chip guards against overcharge, over-discharge, temperature extremes and over-current, the housing is rated IP54, and the pack works from -20 to 55 degC. It measures 161.7 x 104.7 x 105.5 mm and weighs 2506 g.
- Dimensions161.7(L)mmx104.7(W)mmx105.5(H)mm
- Capacity19.4Ah / 489Wh
- Battery Output25.2V / 20A (500W)
- D-Tap Output25.2V / 10A
- Weight2'506g
| Capacity | 19.4Ah / 489Wh |
|---|---|
| Voltage | 25.2V (rated) / 29.4 (fully charged) |
| Mount | V-Mount |
| Working Temperature | -20 degC to 55 degC |
| Battery Output | 25.2V / 20A (500W) |
| D-Tap Output | 25.2V / 10A |
| Dimensions | 161.7(L)mmx104.7(W)mmx105.5(H)mm |
| IP Rating | IP54 |
| Weight | 2'506g |
| Included | 1 x Battery, (, BP-7S500, ) |
| Manufacturer Part Number | BP-7S500 |
| Protection | Overcharge, over-discharge, temperature, over-current |
