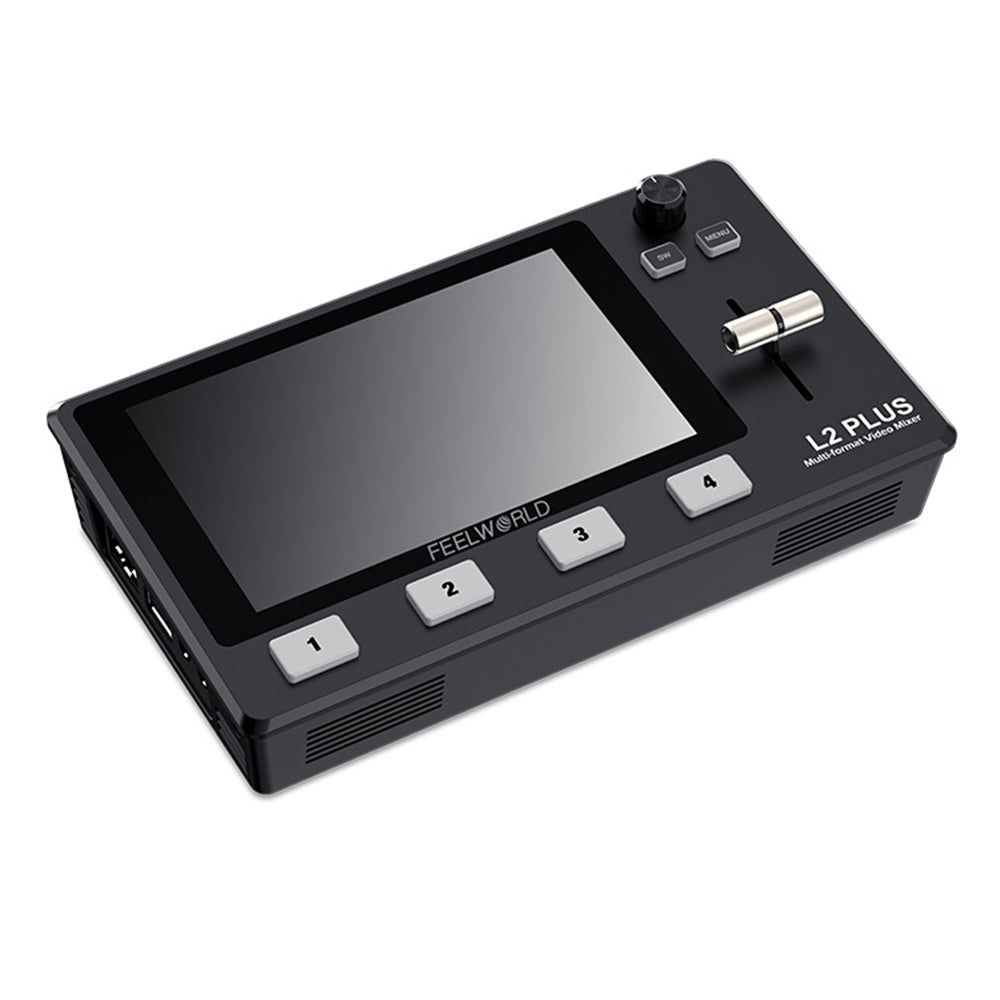

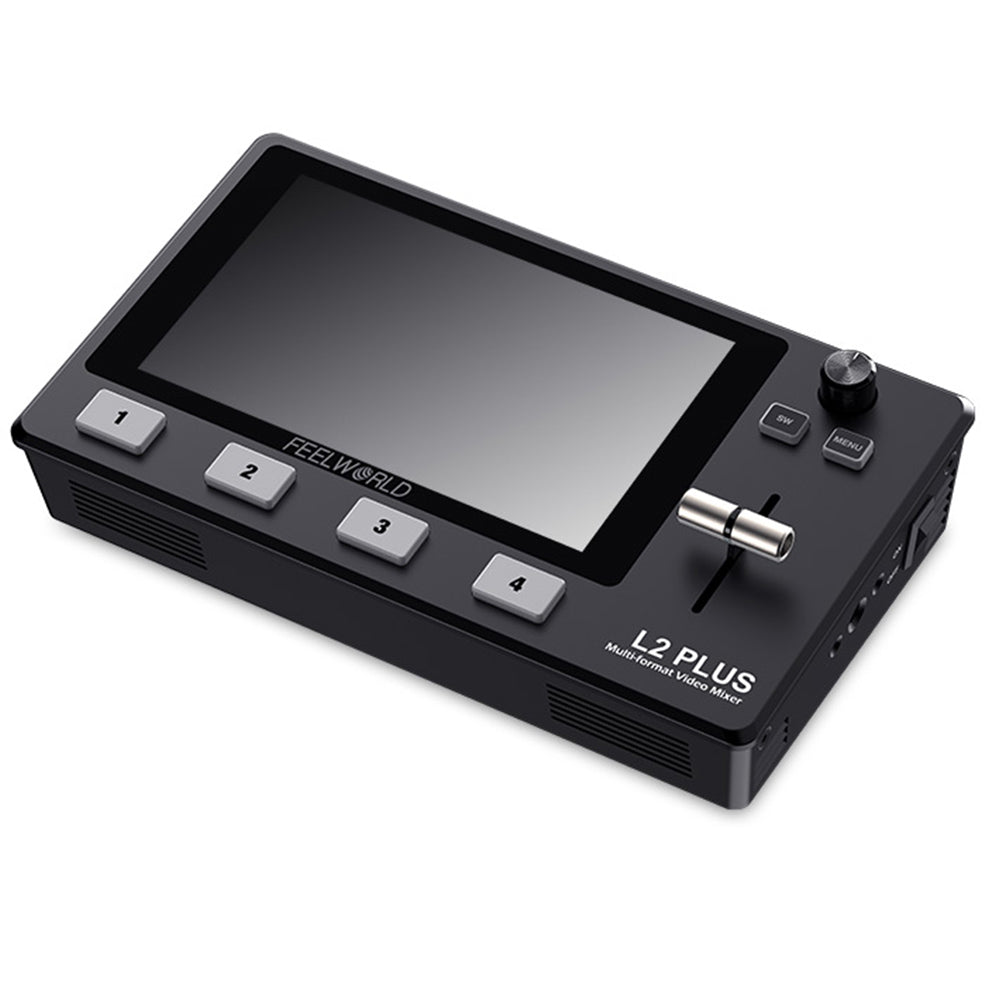

Feelworld L2 PLUS Four-Input Video Switcher with 5.5-Inch Touchscreen

The L2 PLUS is a four-input HDMI switcher with the multiview built into the lid. Its 5.5-inch touchscreen shows all four sources plus preview and program at once, so a single operator can cut a multi-camera show without a separate monitor on the table. Tapping a source switches it; a long press blows program up to full screen. A T-bar, a knob, and four illuminated source buttons sit alongside the screen for anyone who would rather not work by touch.

Program leaves over HDMI or over USB 3.0 as a UVC webcam source, which is what makes it plug and play with OBS, Zoom, Teams, or a browser-based platform, and the HDMI output can carry either program or the six-picture preview to a house display. A hardware chroma keyer handles green or blue screen work and a logo overlay layer builds lower thirds. VISCA PTZ control drives up to eight cameras with position and zoom presets stored on the switcher, and a 3.5 mm microphone input with AFV or line mode mixes an interview mic into the program. Fifteen transitions, nine picture-in-picture layouts, LAN control from the XPOSE desktop app, and Wi-Fi control from the phone app round it out. Inputs and outputs run to 1080p60.

Screen5.5 in touchscreen, six-picture multiview
Input4 x HDMI-A, 1 x 3.5 mm audio in
Output1 x HDMI-A, 1 x USB 3.0 Type-A, 1 x 3.5 mm audio out
ResolutionIn and out up to 1080p60; USB streaming to 1920 x 1080 60
KeyingChroma key plus logo overlay
Camera ControlVISCA PTZ, up to 8 cameras with presets
PowerDC 12V / 2A, 21W max
Size and Weight191 x 110 x 43 mm, 610 g
