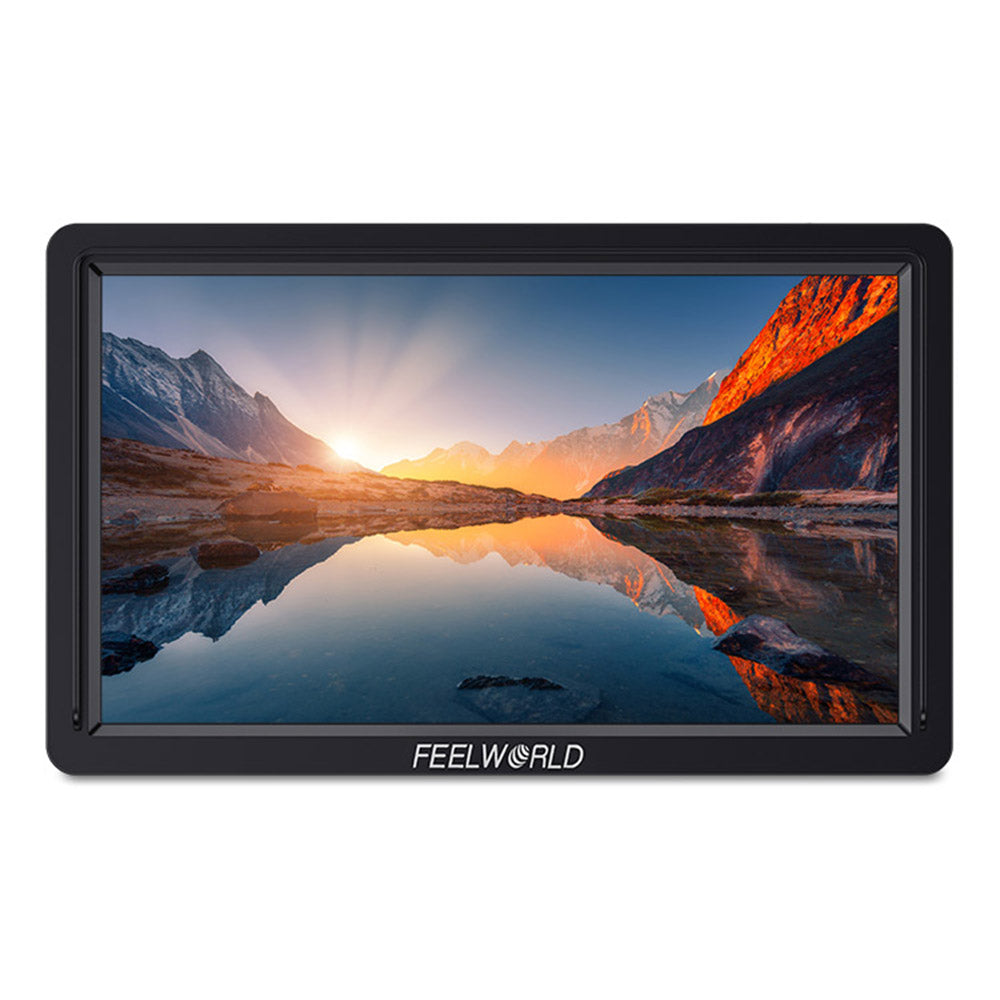

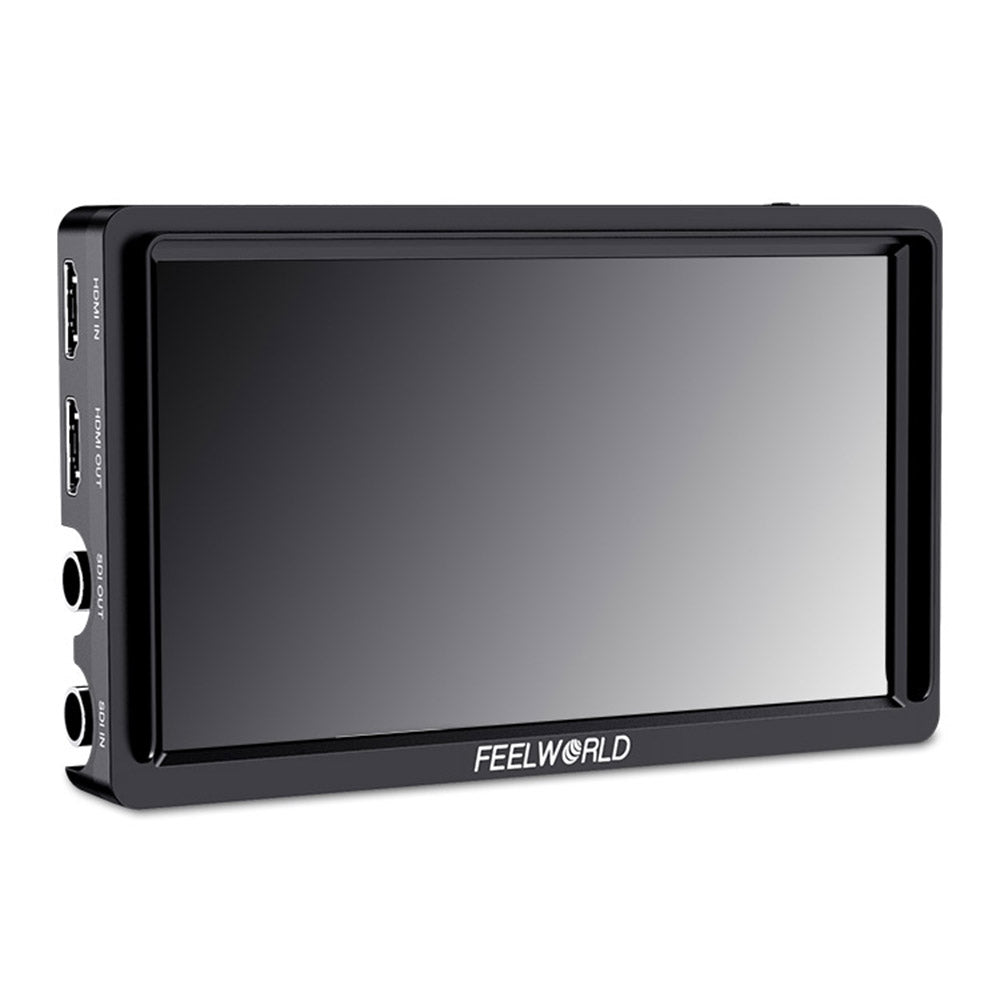

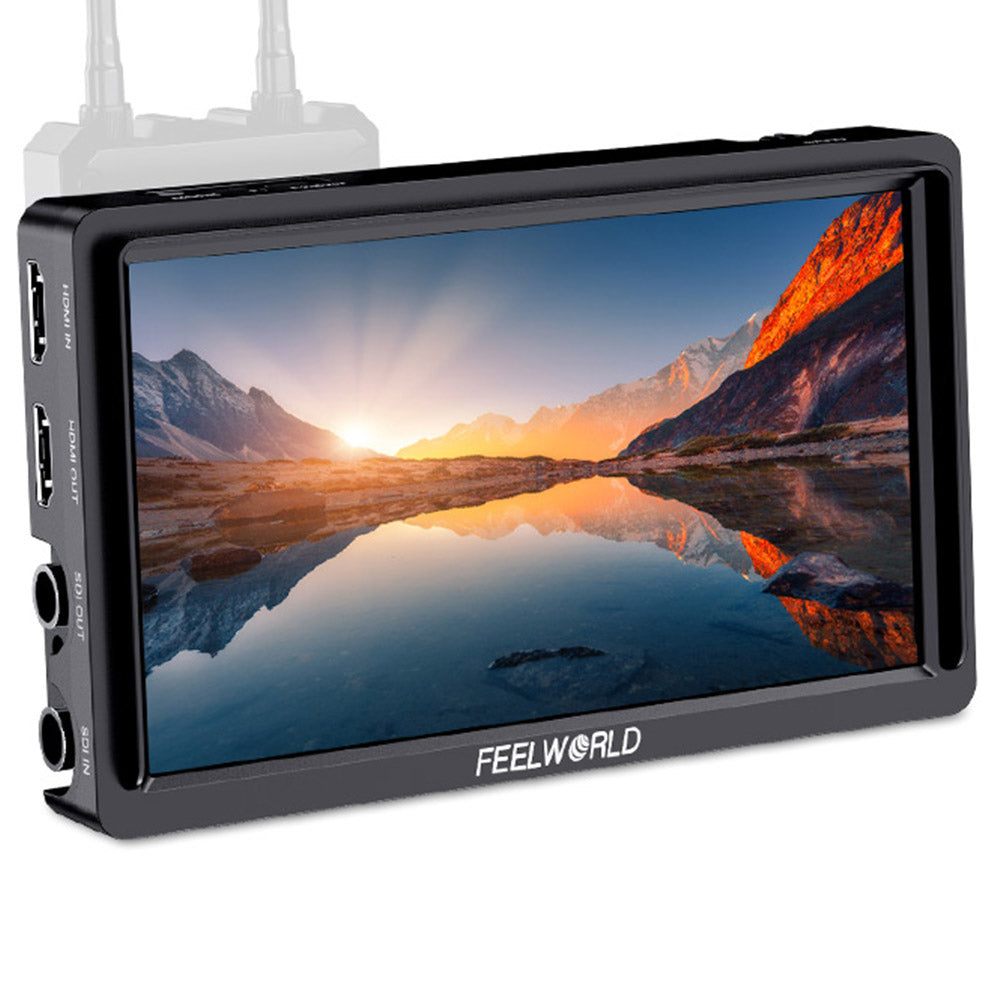

Feelworld FW568S 6-Inch SDI and HDMI Field Monitor
The FW568S is the affordable way to get SDI onto a small camera. A 6-inch 1920 x 1080 IPS panel takes both 3G-SDI and HDMI in and loops both back out, which means it sits equally well behind a broadcast camera and a mirrorless body, and it can bridge the two on a set that mixes them.
Brightness is 450 nits, so this is an indoor and shaded-exterior monitor rather than a full-sun one, and the price reflects that trade. It ships with the F970 external power and install kit for its own battery plate, and a barrel DC output can run the camera off the same pack through a camera-specific adapter. USB-C at 5V/2A is an alternate power path.
| Screen | 6 in IPS, 1920 x 1080, 16:9 |
|---|---|
| Brightness | 450 cd/m2 |
| Contrast Ratio | 1000:1 |
| Viewing Angle | 80/80 (L/R), 80/80 (U/D) |
| Inputs | 1 x 3G-SDI, 1 x HDMI, 1 x USB-C 5V |
| Outputs | 1 x 3G-SDI, 1 x HDMI, DC barrel out for camera power |
| SDI Formats | 720p, 1080i and 1080p up to 60 Hz |
| Audio | 3.5mm stereo headphone |
