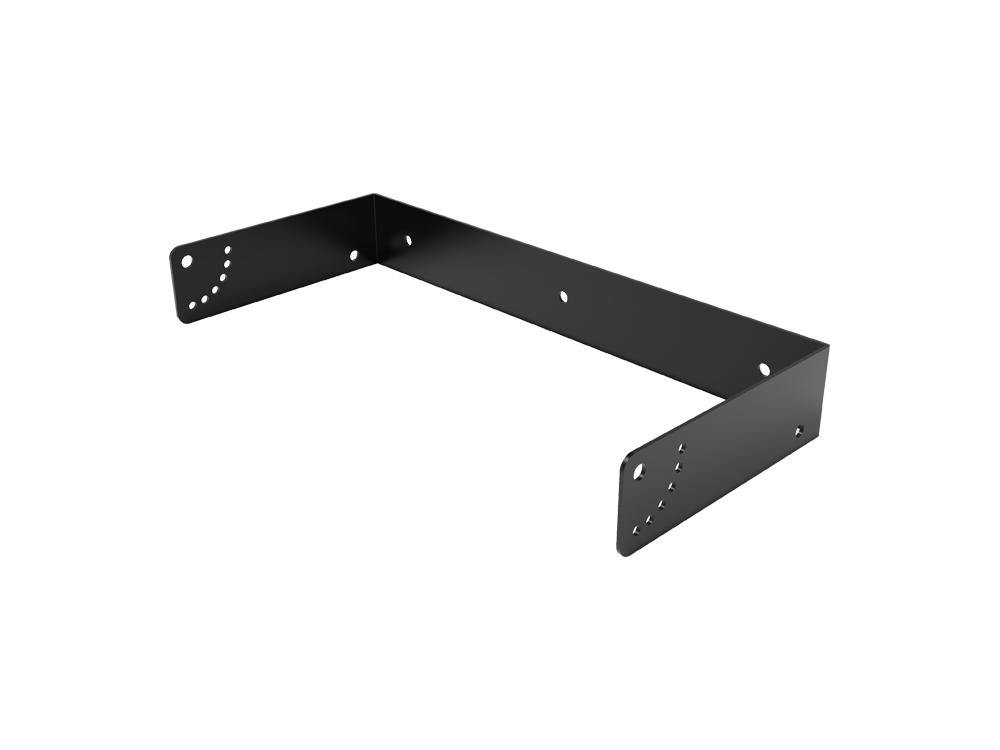

FBT VN-U 115 Horizontal Wall Bracket
The VN-U 115 is FBT's horizontal wall bracket for the Ventis 115 and 115A, the 15-inch two-way point source in the Ventis range. It is a wall metal bracket that holds the cabinet on its side against a wall, measuring 736 x 70 x 283 mm and weighing 2.5 kg, the longest of the Ventis wall brackets.
Genuine FBT hardware, ordered against the manufacturer part number rather than a generic equivalent, so it fits the cabinet it was designed around. FBT lists it under factory code 40724, and specifies the Ventis cabinets for wall installation only with FBT mounts, following the user manual and local suspension rules. The same accessory list includes the VN-C 115 nylon cover.
- Dimensions736 x 70 x 283 mm (28.97 x 2.75 x 11.14 in)
- Weight2.50 kg (5.51 lb)
- MaterialMetal
- TypeHorizontal Wall Bracket
- FBT Code40724
| Part Number | VN-U 115 |
|---|---|
| Type | Horizontal Wall Bracket |
| FBT Code | 40724 |
| Fits | VENTIS 115, VENTIS 115A |
| Manufacturer | FBT Elettronica SpA, Recanati, Italy |
| Dimensions | 736 x 70 x 283 mm (28.97 x 2.75 x 11.14 in) |
| Weight | 2.50 kg (5.51 lb) |
| Material | Metal |
