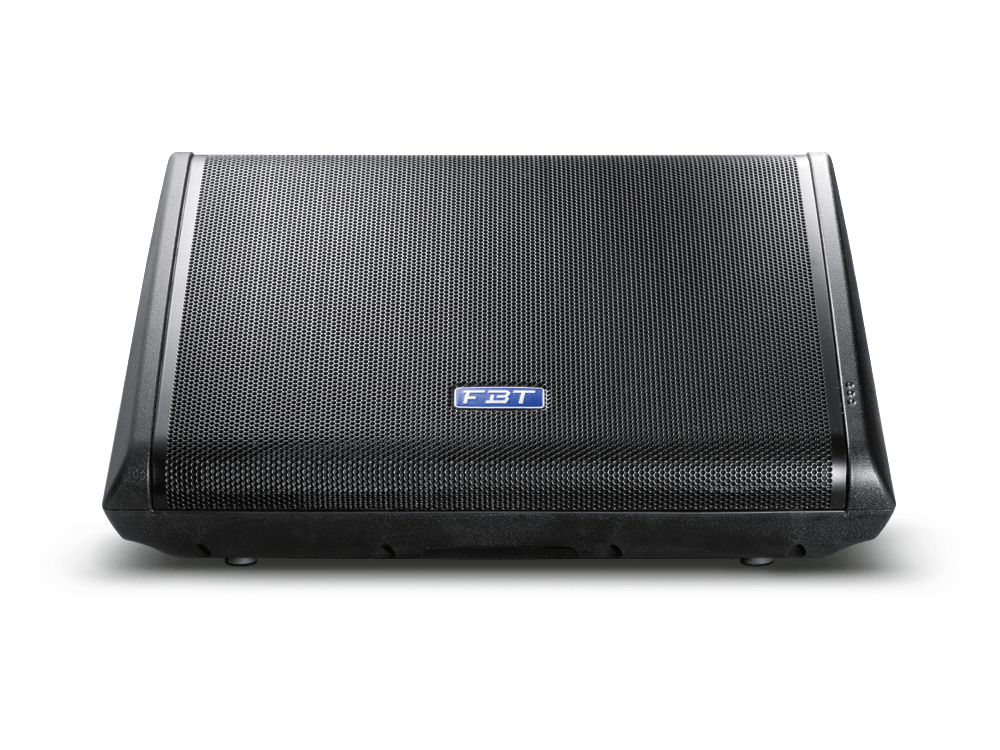

FBT STAGEMAXX 12MA Active Stage Monitor 12 Inch

FBT builds the STAGEMAXX 12MA as active stage monitor 12 inch. It is a 2 way coaxial design with a 400 /100W RMS built-in amplifier. Frequency response is 60Hz - 20kHz -6dB with a maximum SPL of 124 / 130dB and 90 deg conical HxV dispersion. The low frequency driver is a 12 in - 2.5 in coil and the high frequency driver a 1 in - 1.7 in coil.

Inputs are on XLR with loop with a 22 Kohm input impedance. Mains draw is 450 VA. The supplied power cord is 5 m / 16.4ft. It measures 550 x 289 x 392 mm / 21.6 x 11.3 x 15.4 inch and weighs 14.6 kg / 32.1 lb.

  • Frequency response60Hz - 20kHz -6dB
  • Low Frequency Woofer12 in - 2.5 in coil
  • High Frequency driver1 in - 1.7 in coil
  • Configuration2 way coaxial
  • Built-in amplifier LF/HF400 /100W RMS
Configuration2 way coaxial
Built-in Amplifier LF/HF400 /100W RMS
Built-in Amplifier Peak LF/HF800 / 200W
Frequency Response60Hz - 20kHz -6dB
Low Frequency Woofer12 in - 2.5 in coil
High Frequency Driver1 in - 1.7 in coil
Maximum SPL Cont/Peak124 / 130dB
Dispersion90 deg conical HxV
FBT StageMaxX Stage Monitor Overview
