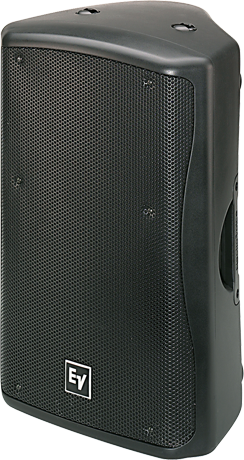

Electro-Voice ZX5-90 Passive Loudspeaker
The ZX5-90 is the 90° x 50° coverage version of the ZX5, a 15 inch two-way cabinet that gets used as mains, as fill and as a floor monitor without changing anything but its angle. The forced-air-cooled woofer and the 2 inch ND2 titanium neodymium compression driver give it the sensitivity to be driven by a modest amplifier and still fill a room.

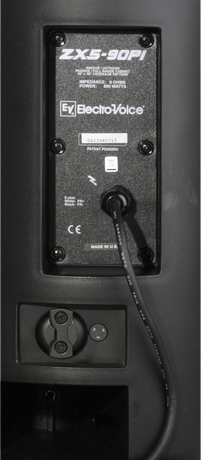

The enclosure is weatherized and flyable, so the same model that tours in a truck also goes on a bracket under a canopy. Color choices are black and white; the PI versions add the weather-resistant install treatment for permanent outdoor mounting. Pick the 90° x 50° horn here or the other pattern if the room is a different shape.
| Coverage (nominal -6 dB) | 90° x 50° |
|---|---|
| Frequency response (-3 dB) | 58 - 18000 Hz |
| Frequency range (-10 dB) | 39 - 20000 Hz |
| Sensitivity 1 W / 1 m | 98 dB |
| Maximum SPL (calculated) | 132 dB |
| LF transducer | 15-inch DVX3150A |
| HF transducer | 2-inch ND2 |
| Crossover frequency | 1500 Hz |
| Power handling (continuous / peak) | 600 W continuous, 2400 W peak |
| Enclosure material | High Impact Polystyrene Composite |
| Net weight | 22.2 kg |
