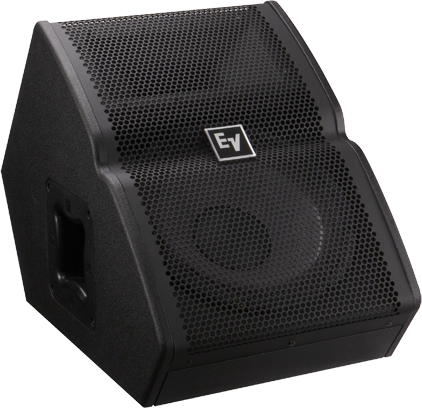

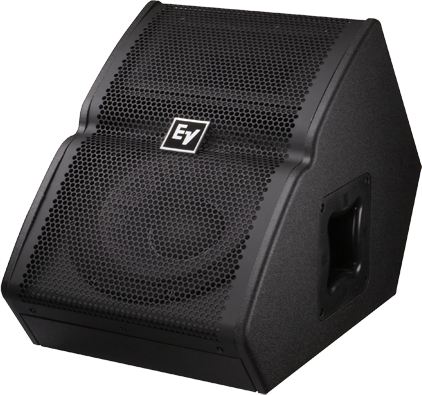

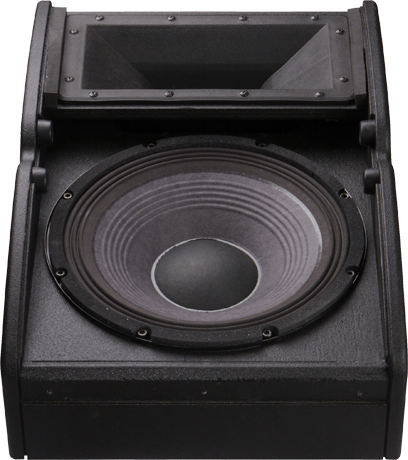

Electro-Voice TX1122FM 12-Inch Two-Way Passive Floor Monitor

The FM in the model name stands for floor monitor, and the TX1122FM is exactly that - a wedge-shaped Tour X cabinet with an SMX2121 12-inch woofer and a DH3 titanium compression driver on a 90 by 50 degree constant-directivity horn. Sensitivity is 99 dB and it handles 500 W continuous, so it stays clean at the volumes a wedge actually gets pushed to.

Signal Synchronized Transducers align the woofer and driver so the two arrive together at the performer, which matters more on a wedge than anywhere else. The cabinet is plywood and MDF finished in EVCoat, with recessed handles and parallel Neutrik NL4 connectors for looping a second wedge on the same mix.

Type	12-inch two-way passive floor monitor
Frequency response (-3 dB)	70 - 20,000 Hz
Coverage (H x V)	90 x 50 degrees, constant directivity
Maximum SPL	132 dB at 1 m
Power handling	500 W continuous / 2,000 W peak
Nominal impedance	8 ohms (minimum 6.4 ohms)
Sensitivity	99 dB, 1 W at 1 m
Transducers	SMX2121 12-inch woofer; DH3 1.25-inch titanium compression driver
Crossover frequency	1,600 Hz, 24 dB per octave

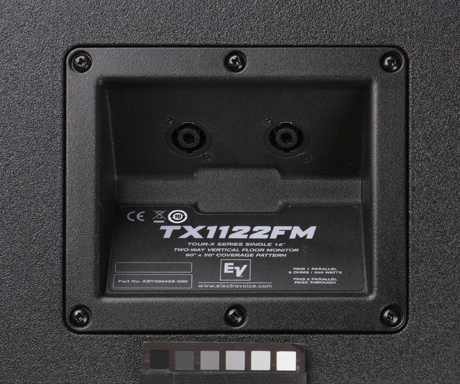

Connectors	Parallel Neutrik NL4 Speakon
Enclosure	Plywood and MDF with EVCoat finish
Dimensions (H x W x D)	440 x 364 x 573 mm
Net weight	19.8 kg
