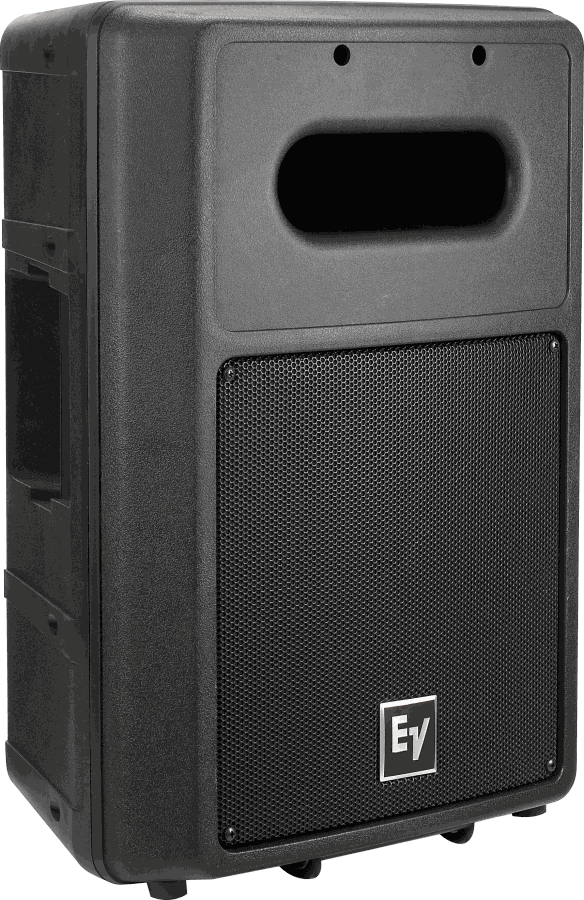

Electro-Voice Sb122 Subwoofer Loudspeaker
The Sb122 is a compact passive bass module built to add low end under Electro-Voice Sx and Zx Series speakers. Its EVS12SB cast-frame 12-inch woofer shares the motor and suspension design of the EVS18S used in EV's larger systems, with nearly two inches of peak-to-peak excursion, in a light composite cabinet with a large vent.
An integral low-pass filter lets you wire the Sb122 in parallel with a full-range speaker on one amplifier channel, with no extra amp or processor. The filter is transparent below 160 Hz, so the sub also works in biamp rigs without disabling it; EV recommends a 40 Hz high-pass (subsonic) filter there. Two Neutrik Speakon NL4 jacks handle connection, and a pole socket on top takes a small full-range box such as the Zx1 or Sx80 on the optional ASP-1 pole.
| LF Transducer | EVS12SB, 12 in (305mm) |
|---|---|
| Frequency Response (-3 dB) | 52 Hz - 145 Hz (half space) |
| Frequency Range (-10 dB) | 43 Hz - 200 Hz (half space) |
| Sensitivity (1 W / 1 m) | 99 dB |
| Max Calculated SPL | 131 dB |
| Power Handling | 400 W continuous, 1,600 W peak |
| Impedance | 8 ohms |
| Recommended Crossover, Biamp | 80 Hz - 160 Hz |
| Connectors | (2) Neutrik Speakon NL4 |
| Enclosure Material | Composite |
| Dimensions (H x W x D) | 23.1 x 16.9 x 12.3 in (586 x 429 x 312 mm) |
| Net Weight | 33 lbs (15.0 kg) |
