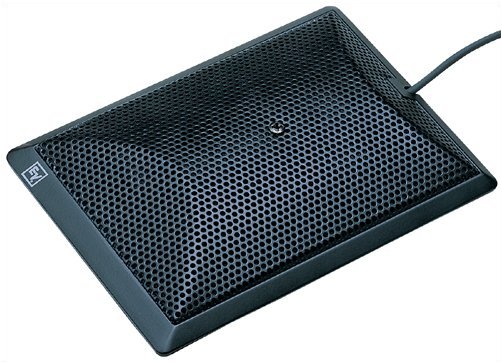

Electro-Voice RE90B Condenser (Back-Electret) Microphone

The Electro-Voice RE90B is a low-profile boundary condenser that sits on a conference table, lectern or stage floor. Its half-cardioid pattern favors the talker and suppresses room noise for higher gain before feedback, and internal equalization offsets the boundary baffle effect so voices sound flat and natural rather than bass-heavy.

EV's RF Shield technology keeps phone and RFI buzz out of the signal. The zinc die-cast body rests on a rubber pad that isolates it from table knocks, and the cable can be routed through the tabletop for a hidden, permanent install. It runs on 9-52 V phantom power and weighs 376 g with its 10 ft cable and male XLR.

Element Type, back electret
Polar PatternHalf- (cardioid in hemisphere above mounting surface)
Frequency Response80 Hz to 15,000 Hz
SensitivityOpen Circuit Voltage, 1 kHz: 25 mV/Pascal
Signal-to-Noise Ratio>100 dB
Nominal Impedance200 Ohms
Power9-52 VDC phantom
ColorNonreflecting black or white
Net Weight12.6 oz (376 g) with 10 ft cable and male connector
