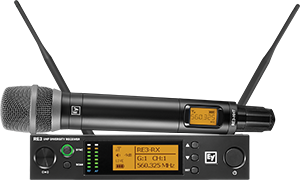

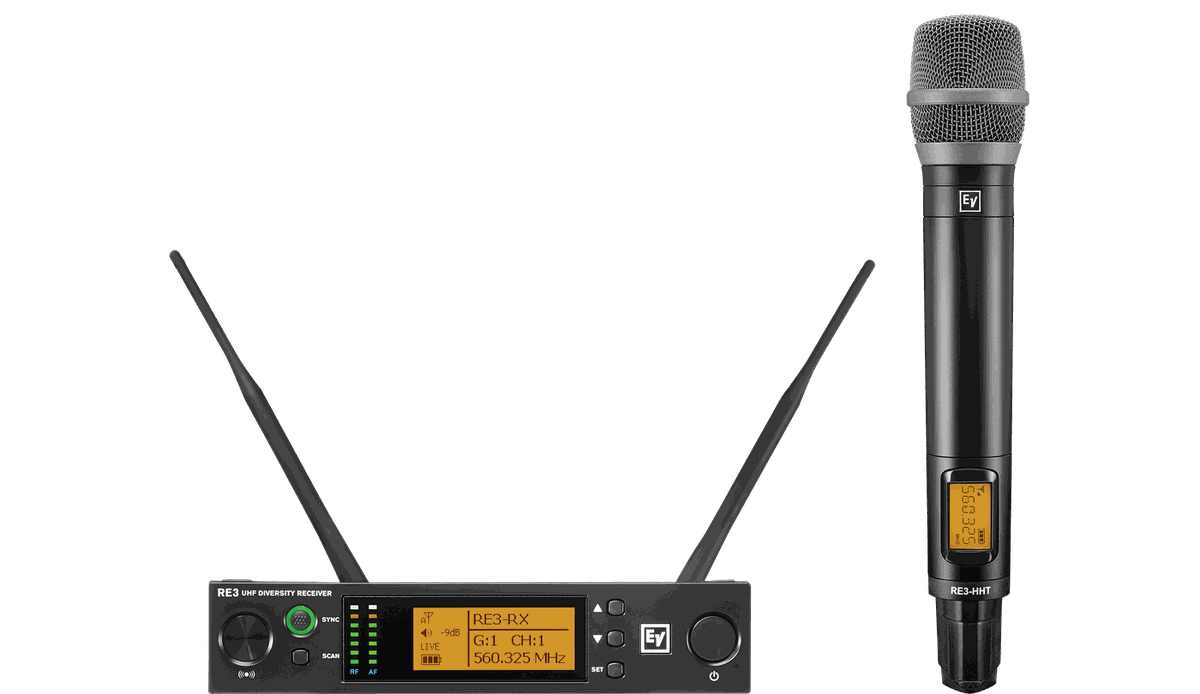

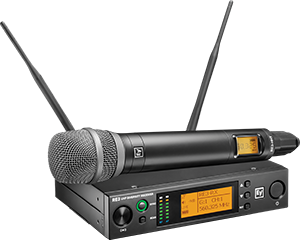

Electro-Voice RE3-RE520 Wireless Handheld Set

The RE3-RE520 is the RE3 handheld wireless set supplied with the RE520-RC3 wireless head. The RE520 is Electro-Voice's condenser capsule for lead vocals: tight at the bottom, natural through the mids and detailed on top, with a supercardioid pattern that keeps the wedge and the rest of the stage out of it.

The head threads onto the handheld transmitter and also fits many other brands' handheld bodies, so a rack that is already standardised on another transmitter can still use the capsule. Setup uses the RE3 clear-frequency scan and infrared sync from the receiver. Order the band that suits your area: 5L and 5H each tune 36 MHz with 1440 selectable frequencies, 6M covers 653 to 663 MHz with 400.

Type	RE3 UHF handheld wireless set
Capsule	RE520-RC3 condenser head, supercardioid
Head compatibility	Threads onto Electro-Voice handheld transmitters and many other brands
Band 5L	488 - 524 MHz, 36 MHz tuning bandwidth, 1440 selectable frequencies
Band 5H	560 - 596 MHz, 36 MHz tuning bandwidth, 1440 selectable frequencies
Band 6M	653 - 663 MHz, 10 MHz tuning bandwidth, 400 selectable frequencies
Transmit output power	10 and 50 mW (5L, 5H); 10 and 20 mW (6M)
Setup	Clear-frequency scan and infrared sync from the RE3-RX receiver
