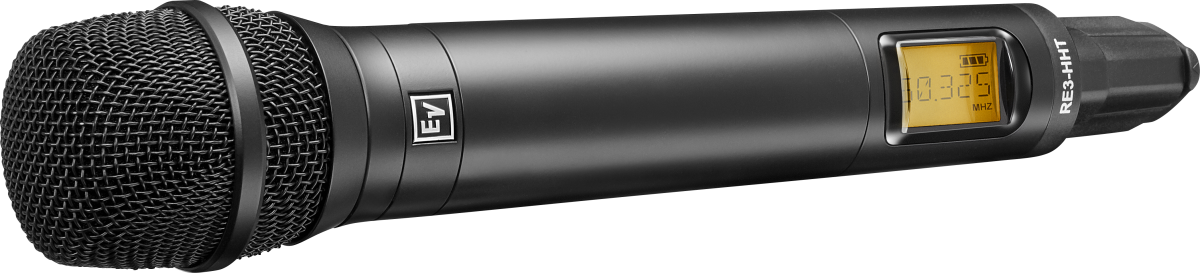

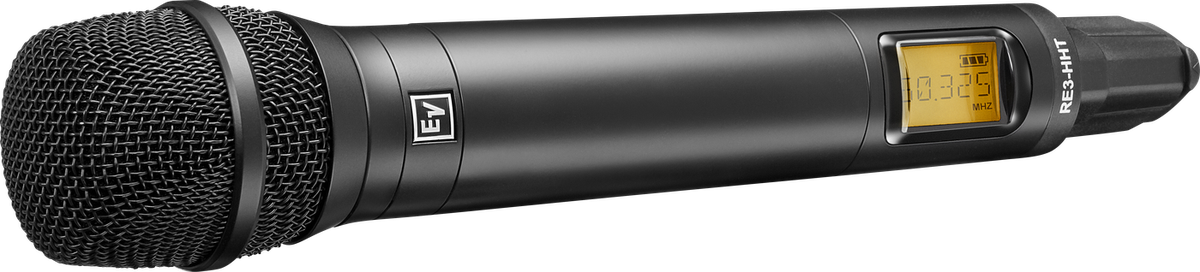

Electro-Voice RE3-HHT420 Wireless Handheld Transmitter
The RE3-HHT420 is the RE3 handheld transmitter fitted with the RE420 condenser cardioid head. The RE420 is a condenser: rich, detailed and full-bodied, with the warmth that suits a solo voice in a quieter room. It is the transmitter half of the system: pair it with an RE3-RX diversity receiver, or add it as a second or third handheld on a rack that already has one.
The body is metal, the head threads on, and RF output is switchable between a low and a high setting so a crowded room and an empty one can be handled differently. Setup runs off the RE3 clear-frequency scan and the infrared sync that copies the receiver's channel across. Order the band that suits your area: 5L and 5H each tune across 36 MHz with 1440 selectable frequencies, and 6M covers the 10 MHz gap at 653 to 663 MHz with 400. Runs on two AA cells.
| Type | RE3 UHF handheld transmitter |
|---|---|

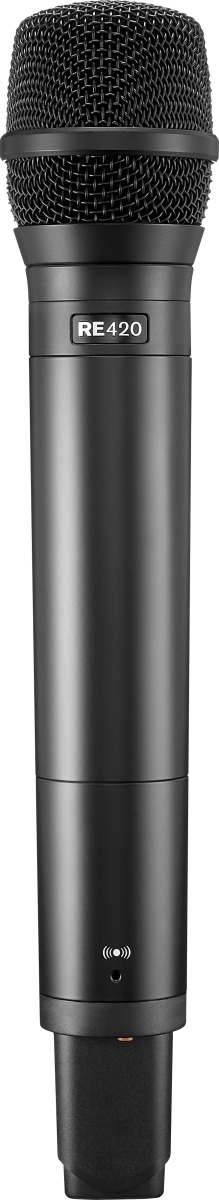

| Capsule | RE420 condenser cardioid head |
| Band 5L | 488 - 524 MHz, 36 MHz tuning bandwidth, 1440 selectable frequencies |
| Band 5H | 560 - 596 MHz, 36 MHz tuning bandwidth, 1440 selectable frequencies |
| Band 6M | 653 - 663 MHz, 10 MHz tuning bandwidth, 400 selectable frequencies |
| Transmit output power | 10 and 50 mW (5L, 5H); 10 and 20 mW (6M) |
| Transmitter body | Metal, threaded head coupling, selectable low/high RF power |
| Setup | Clear-frequency scan and infrared sync from the RE3-RX receiver |

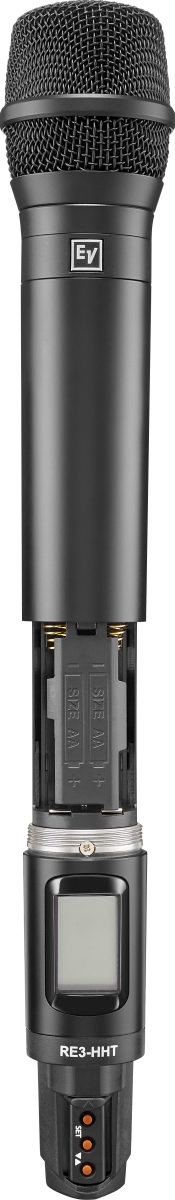

| Batteries | 2 x AA |
