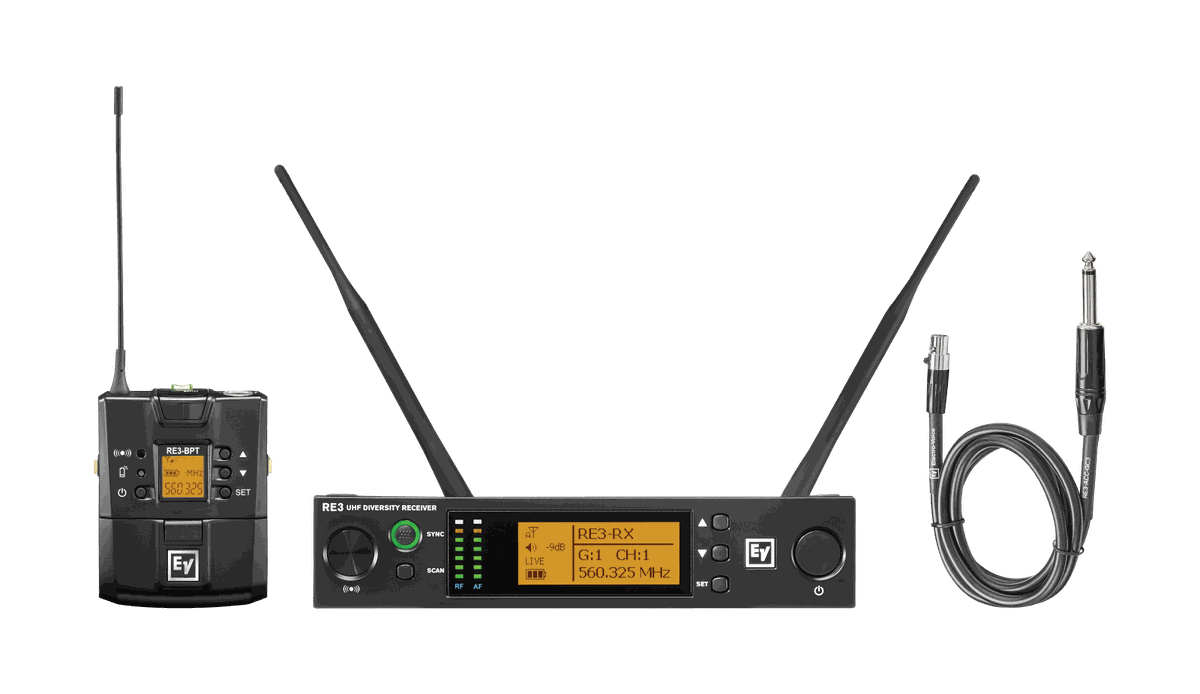

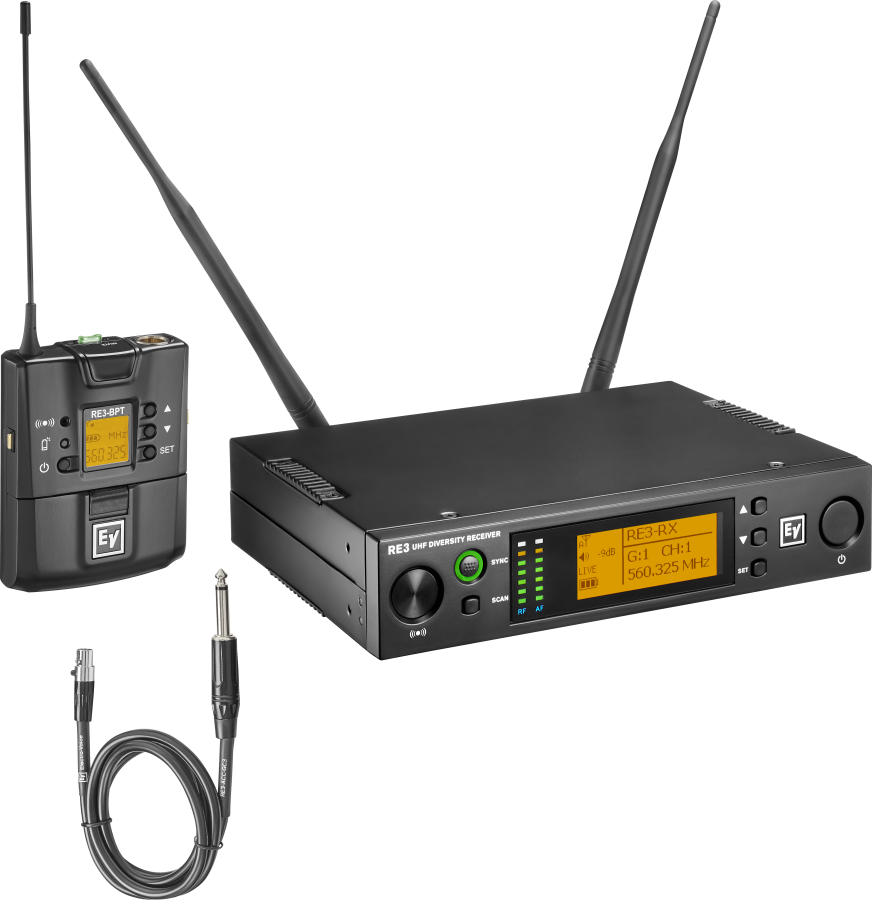

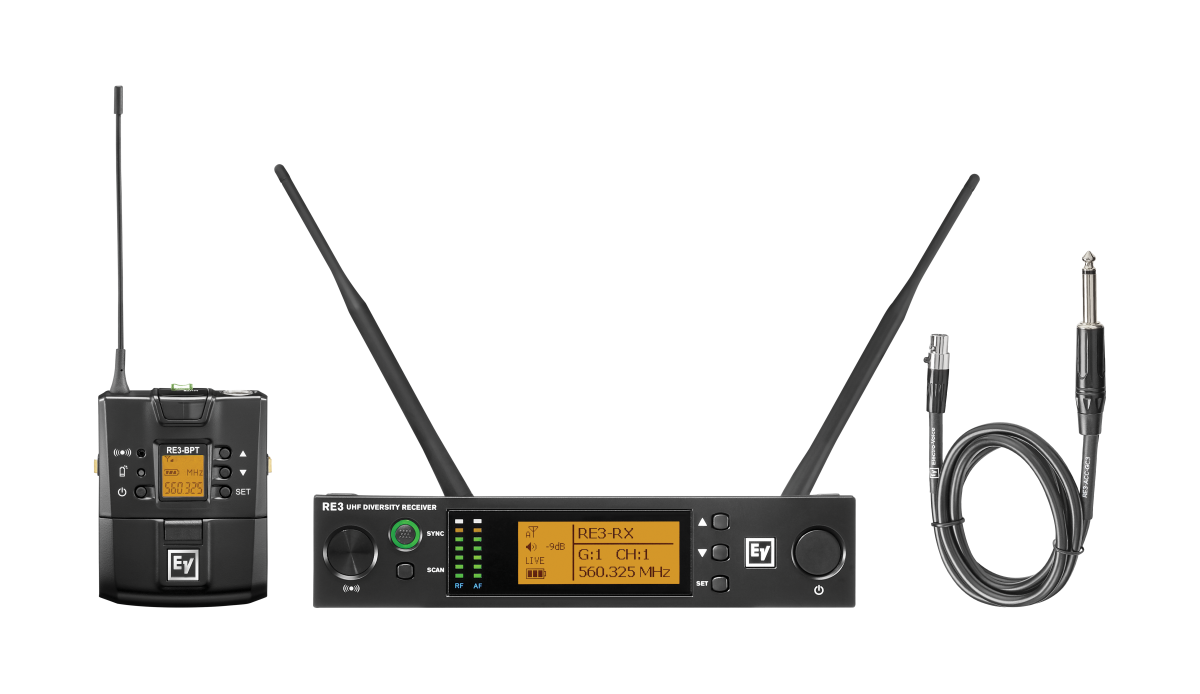

Electro-Voice RE3-BPGC Wireless Instrument System

This is the instrument version of the RE3 bodypack set: instead of a microphone it ships with the GC3 cable, which takes a quarter-inch jack from a guitar, bass or any line-level source into the RE3-BPT transmitter. It is the cheapest way into the RE3 platform and the one that puts a player on the front of the stage instead of on the end of a lead.

The transmitter has a metal body, selectable low and high RF power, and a magnetic latch for the battery door. The RE3-RX receiver runs true diversity, scans for an open frequency and syncs the pack over infrared. Bands are ordered individually - 5L and 5H tune across 36 MHz with 1440 channels, 6M covers 653 to 663 MHz.

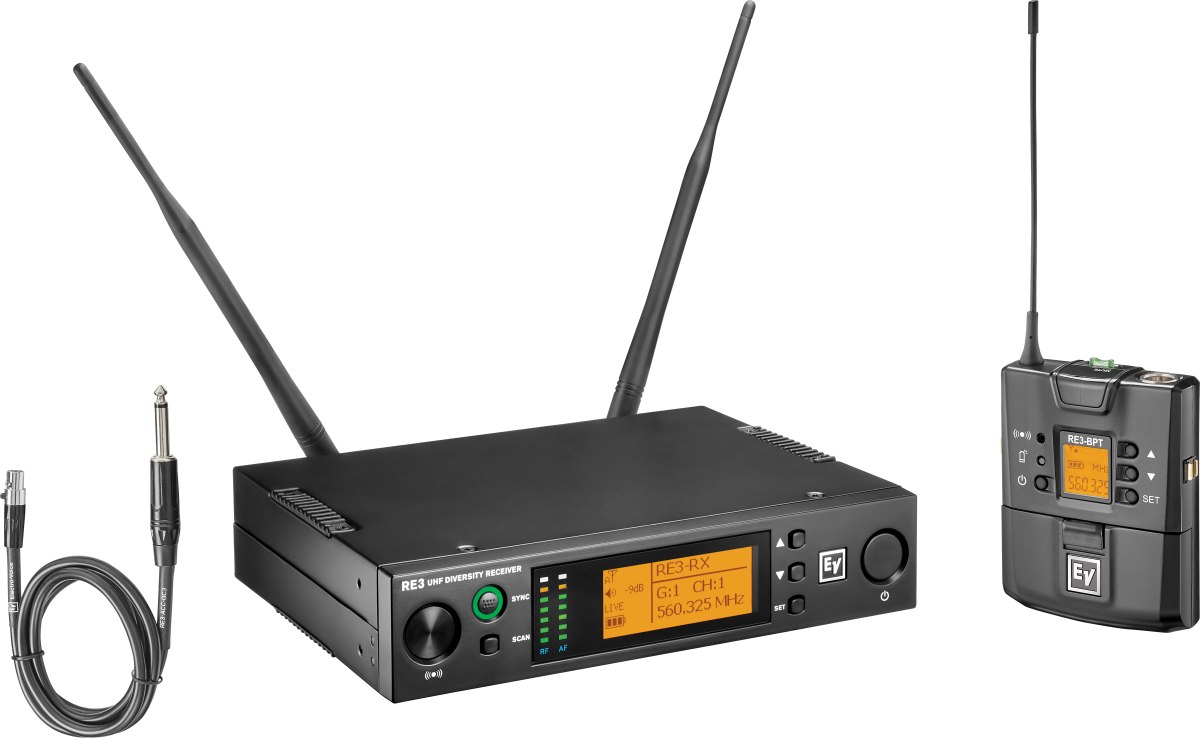

System	RE3-RX diversity receiver and RE3-BPT bodypack transmitter
Input cable	GC3 instrument cable, 1/4-inch jack
Band 5L	488 - 524 MHz, 36 MHz tuning bandwidth, 1440 channels, 10/50 mW
Band 5H	560 - 596 MHz, 36 MHz tuning bandwidth, 1440 channels, 10/50 mW
Band 6M	653 - 663 MHz, 10 MHz tuning bandwidth, 400 channels, 10/20 mW
Receiver features	True diversity, frequency scan, infrared sync, LCD display

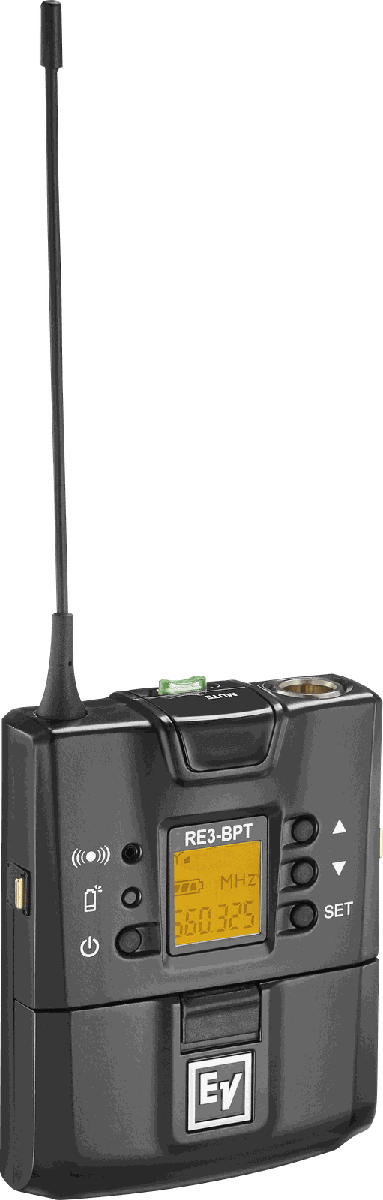

Transmitter	Metal body, selectable low/high RF power, magnetic battery latch
Batteries	2 x AA (supplied)
Also supplied	Two antennas, universal power supply, rack mounting hardware
