Electro-Voice R300-L Wireless System

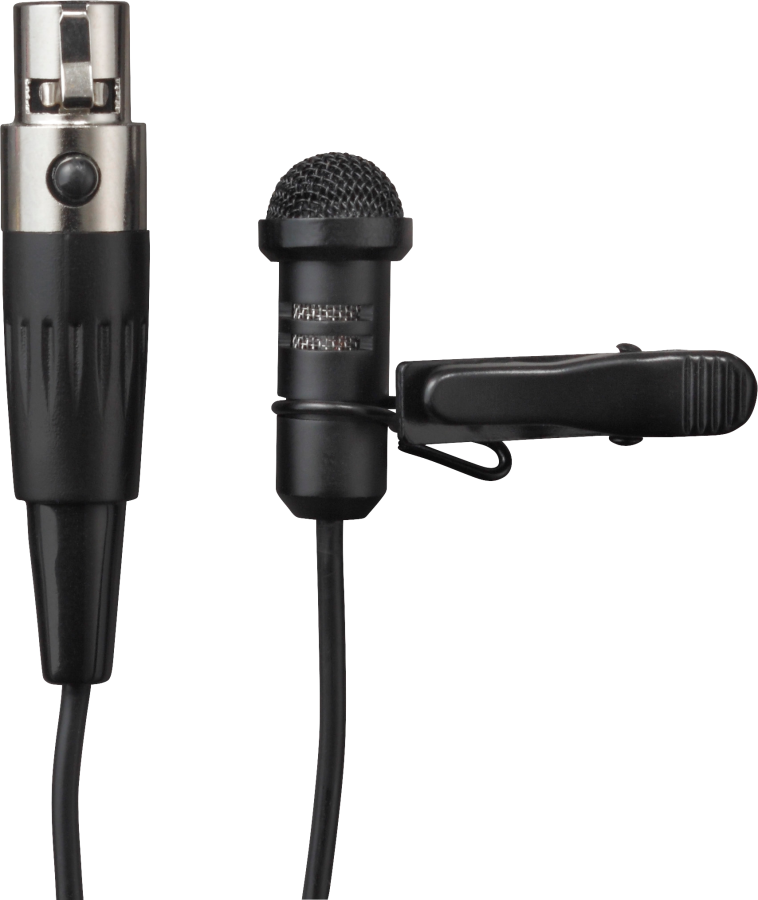

The R300-L is the lavalier configuration of the R300 UHF wireless family: a metal receiver chassis and the BP-300 metal bodypack transmitter, supplied with the ULM18 directional lavalier microphone. It is the set for rooms that need one reliable channel rather than a managed multi-channel rack.
ClearScan finds the clearest channel in the band by itself and EZsync copies it to the transmitter in one step, which keeps setup out of the hands of whoever happens to be running the room that night. True antenna diversity and tone-code squelch keep the link quiet. Two AA alkaline cells run the transmitter for about 14 hours. The receiver takes an optional rack mount. This listing is band C.
| Microphone supplied | ULM18 directional lavalier microphone |
|---|---|
| Transmitter | BP-300 metal bodypack transmitter |
| Receiver type | Synthesized PLL |
| Diversity | True Antenna |
| Number of channels | 32 Per Band, 8 Simultaneous |
| Audio frequency response | 80 Hz - 18kHz +/- 2dB |
| Dynamic range | greater than 95 dB |
| Signal-to-noise ratio (A-weighted) | greater than 100 dB |
| Transmitter RF output | 8 mW Typical |
| Battery life | 14 Hours with (2) AA alkalines typical |
| Outputs | 1/4 inch unbalanced, 3-Pin XLR balanced |
| Antennas | Flexible TNC 1/2 Wave |
| Squelch | Tone code plus Amplitude |
| Power supply | 12 VDC, 500 mA max |
