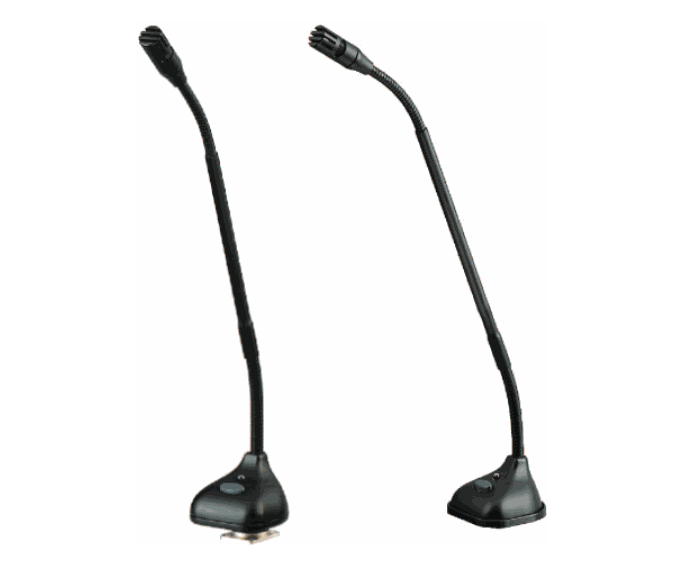

Electro-Voice PC PLUS-12 Condenser, Back-Electret Microphone

The PC PLUS-12 is a dual condenser, back-electret microphone. Frequency response runs 50Hz to 20,000Hz (see chart).

Color is non-reflecting black. Sensitivity is open circuit voltage, 1kHz: 5.6mV/Pascal. Clipping level (1% THD) is >127dB SPL. Equivalent noise is <26dB SPL “A” weighted, (0 dB=20 microPascals).

Color	Non-reflecting black
Shipping weight	PC Plus-12: 201 grams (7.1oz), PC Plus-18: 210 grams (7.4oz)
Generation element	Dual condenser, back-electret
Frequency response	50Hz to 20,000Hz (see chart)
Switches and controls	Top mounted momentary push button, Push on/off, or PTT/PTM selector, Power up on/off selector, High pass enable, 4-position polar pattern selector
Sensitivity	Open circuit voltage, 1kHz: 5.6mV/Pascal
Clipping level (1% THD)	>127dB SPL
Equivalent noise	<26dB SPL “A” weighted, (0 dB=20 microPascals)
