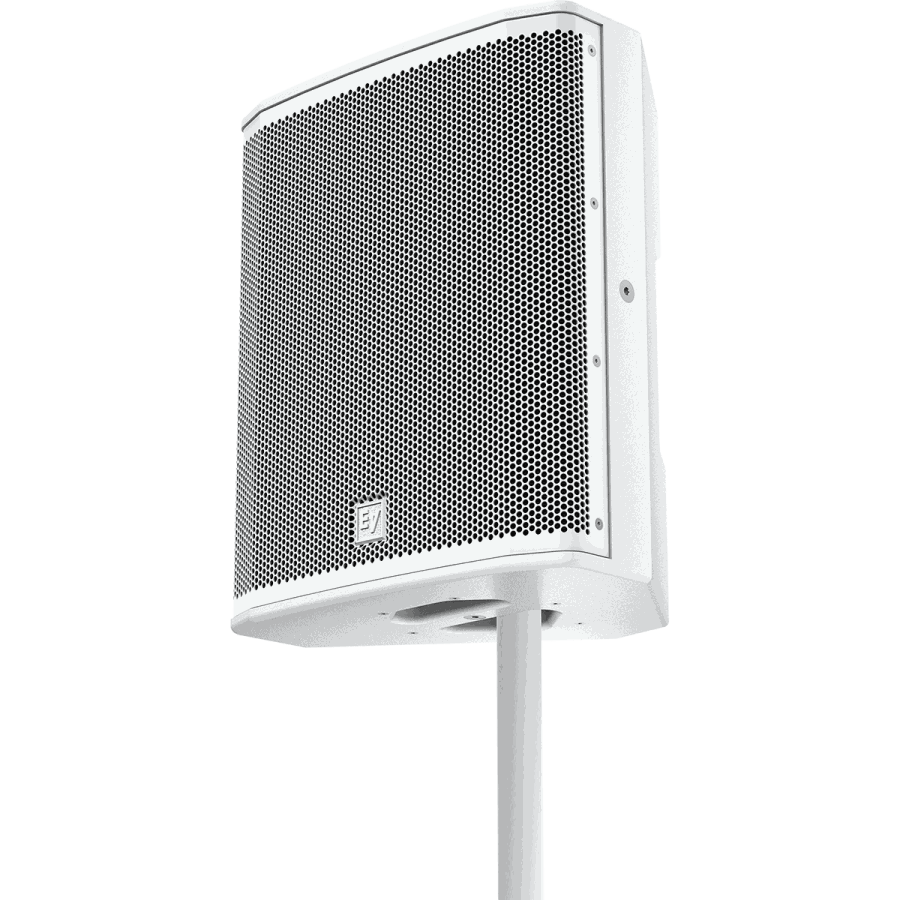

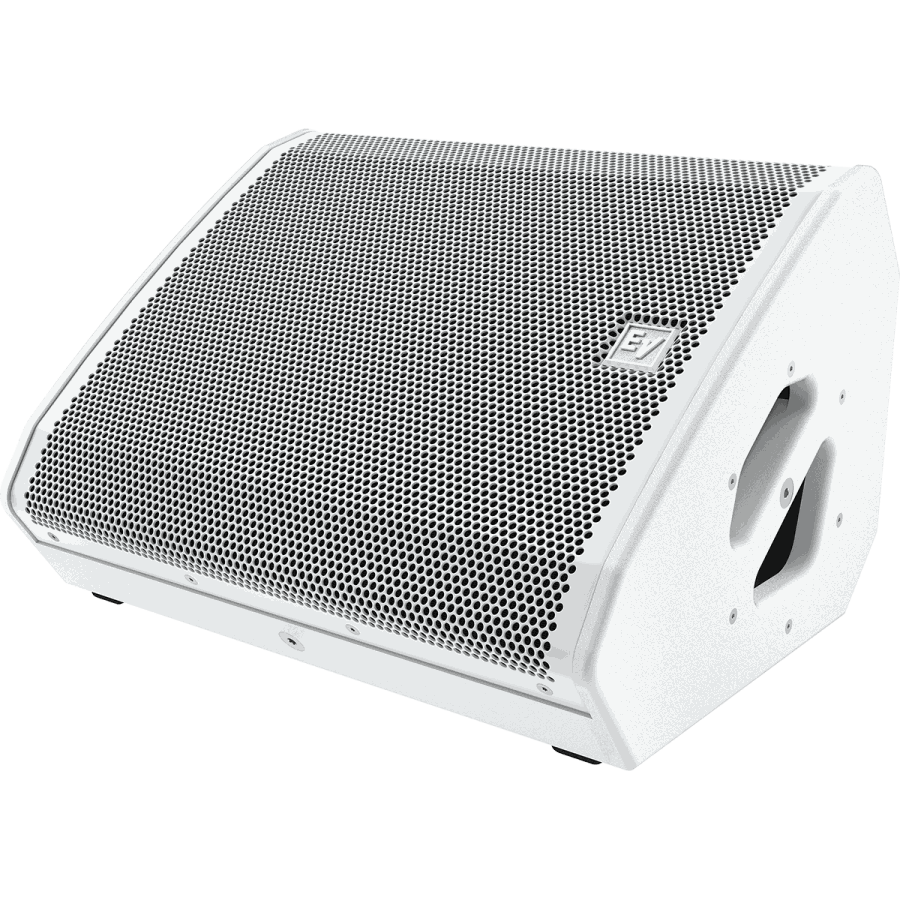

Electro-Voice MFX-12MC 12-inch Two-Way Coaxial Monitor
The MFX-12MC is part of the Electro-Voice installed sound range.
The cabinet is 12-18-mm baltic plywood with EVCoat. It connects by neutrik NL4 input with NL4 pass through. Rigging is four M10 suspension points located to work with truss clamps, wall mounts, flying brackets and a full range of mounting accessories. It measures 500 mm x 420 mm x 298 mm (19.7 in x 16.5 in x 11.7 in) and weighs 19 kg (41.9 lb). The grille is 1.5-mm zinc plated steel with corrosion resistant coating. Color is black (RAL 9005) or white (RAL 9003).
| Enclosure | 12-18-mm Baltic plywood with EVCoat |
|---|---|
| Grille | 1.5-mm zinc plated steel with corrosion resistant coating |
| Color | Black (RAL 9005) or white (RAL 9003) |
| Connectors | Neutrik NL4 input with NL4 pass through |
| Suspension | Four M10 suspension points located to work with truss clamps, wall mounts, flying brackets and a full range of mounting accessories |
| Dimensions (H x W x D) | 500 mm x 420 mm x 298 mm (19.7 in x 16.5 in x 11.7 in) |
| Net weight | 19 kg (41.9 lb) |
| Shipping weight | 21.2 kg (46.7 lb) |
