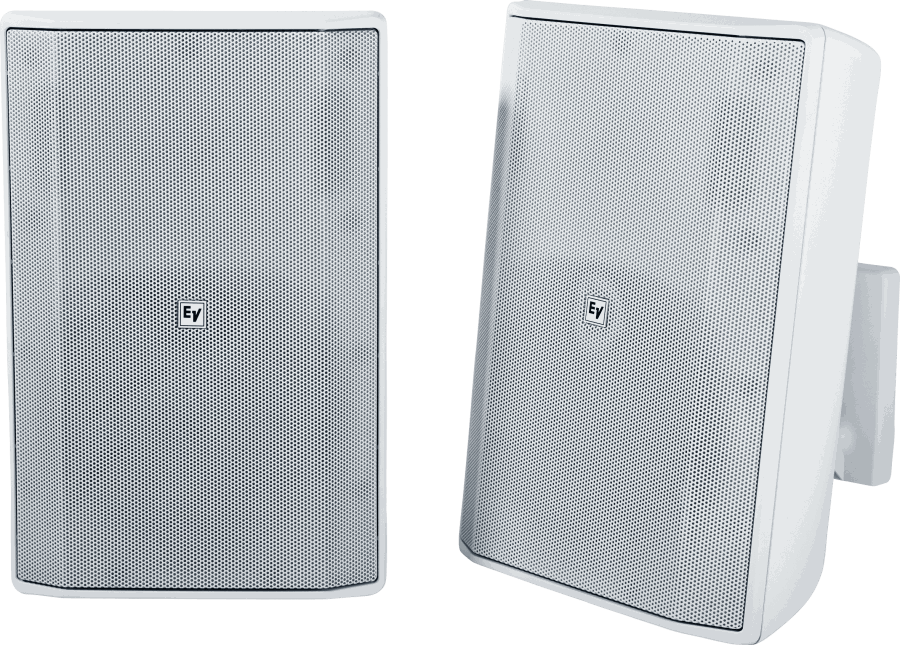

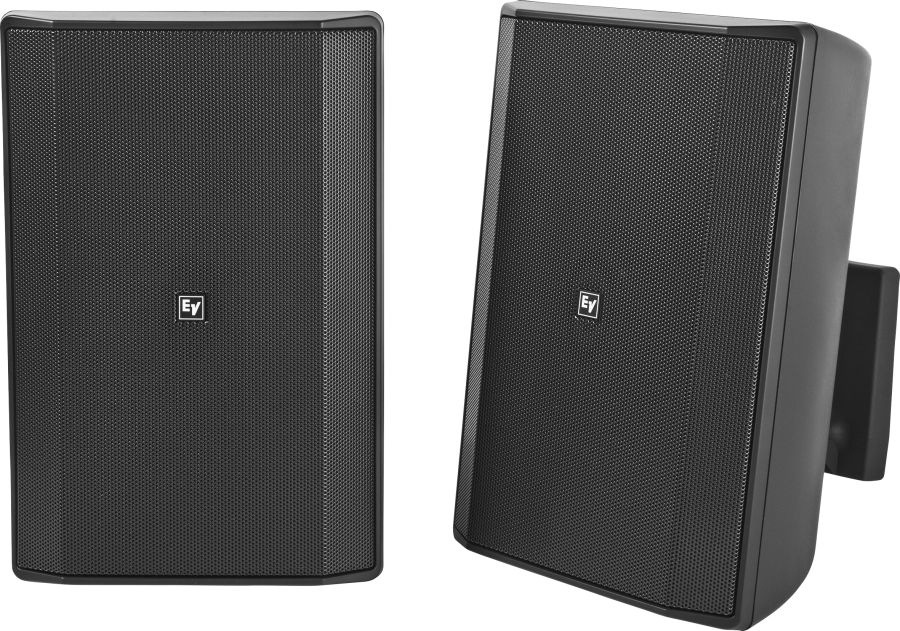

Electro-Voice EVID-S8.2 8-Inch Two-Way Surface-Mount Loudspeaker (Supplied as a Pair)

The EVID-S8.2 is the biggest of the EVID surface-mount cabinets: an 8-inch woofer and a 1-inch tweeter covering 90 by 90 degrees, rated 90 W continuous into 8 ohms and good for 116 dB peak. It is supplied as a pair, which is how these get specified - one either side of a bar, a lobby or a covered terrace.

The bracket is part of the design rather than an add-on, and gives 90 degrees of horizontal rotation and 45 degrees of vertical, so aiming is done on the wall rather than on paper. Wiring lands on a removable four-pin Euroblock. The cabinet is rated IP54, so covered outdoor positions are fair game. The T versions carry a 70/100 V transformer for constant-voltage distribution systems; the plain versions are low-impedance only.

Type	8-inch two-way surface-mount loudspeaker (supplied as a pair)
Frequency response (-3 dB)	70 Hz - 20 kHz
Coverage (nominal, -6 dB)	90 x 90 degrees
Maximum SPL	110 dB continuous / 116 dB peak (calculated at 1 m)
Power handling	90 W continuous / 360 W peak
Nominal impedance	8 ohms (minimum 6 ohms)
Transducers	8-inch (203 mm) woofer; 1-inch (25 mm) tweeter
Connector	Removable locking 4-pin Euroblock, max 12 AWG
Weather rating	IP54 per IEC-60529
Mount	Bracket with 90 degrees horizontal and 45 degrees vertical rotation
Dimensions (H x W x D)	390 x 250 x 223 mm
Net weight	5.1 kg each
T versions	70 V / 100 V transformer fitted for constant-voltage systems
