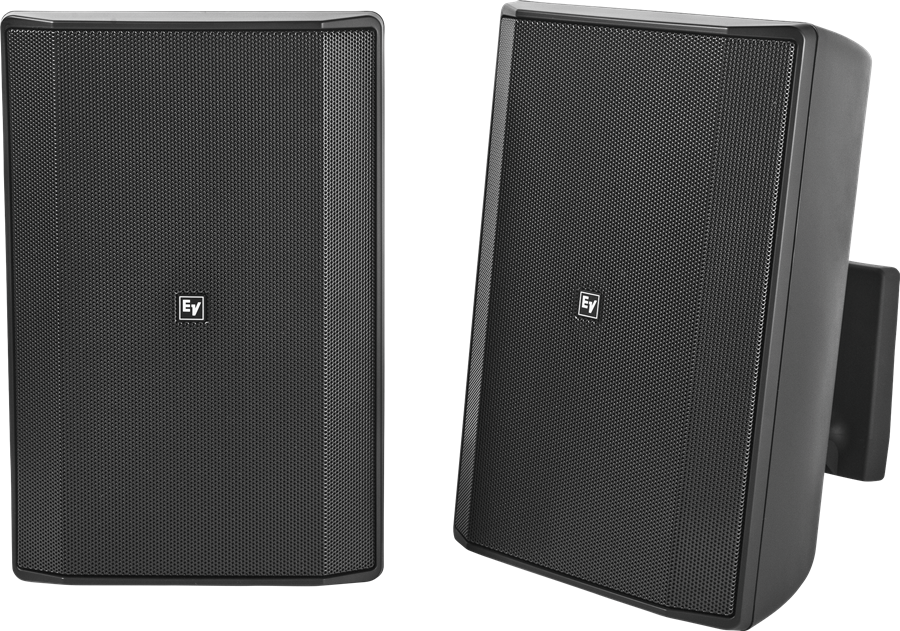

Electro-Voice EVID-S8.2T 70V Surface-Mount Loudspeaker

The EVID-S8.2T tops the EVID-S surface line with an 8 inch woofer and a 1 inch high-frequency transducer, built for zones that need real output on a 70V or 100V line rather than another small box. The 60 W transformer steps down to 30, 15, or 7.5 W taps, or bypasses to 8 ohms for a direct amplifier run.

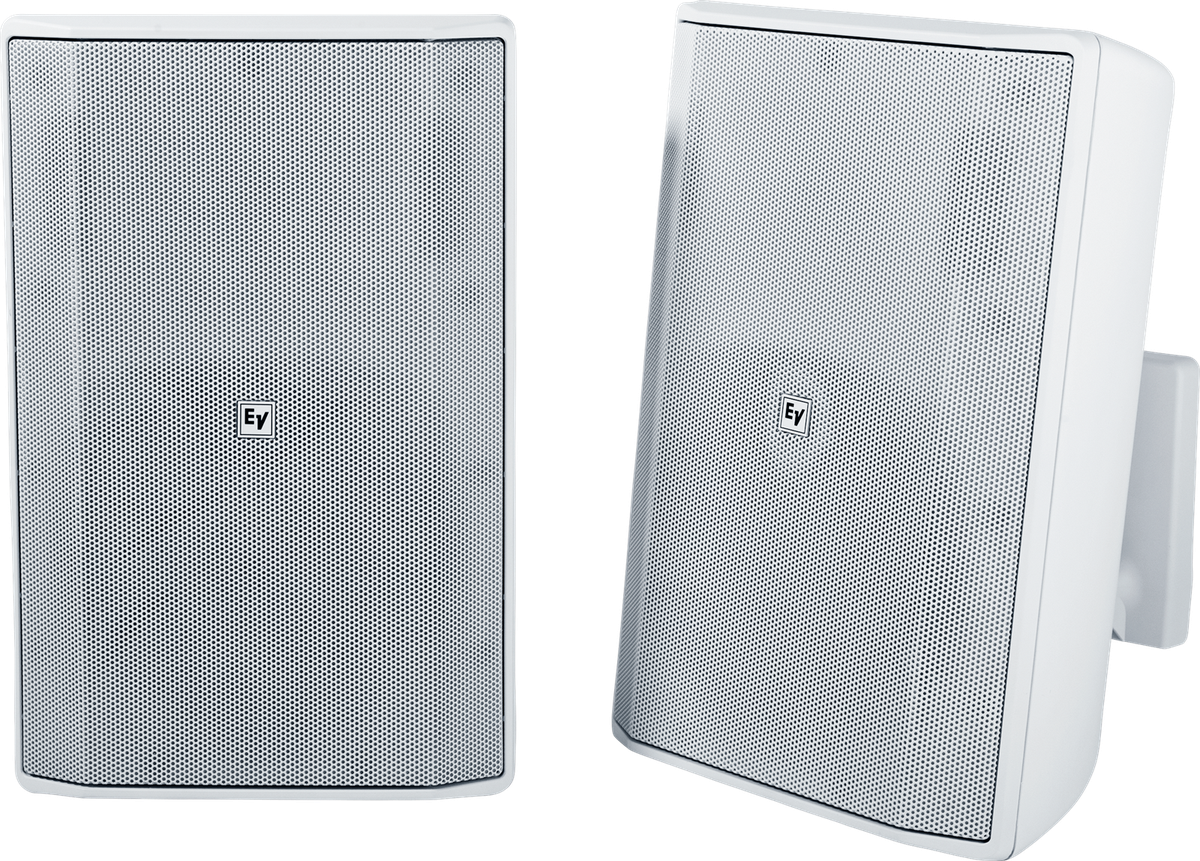

The cabinet carries the same IP54 rating and rotating bracket as the rest of the S-series, so it mounts flush to a wall or tilts down from a ceiling edge without a separate hardware kit. It ships in black or white and can be field-painted for a closer match to the room.

Driver complement8 in (203 mm) woofer, 1 in (25 mm) HF transducer
Frequency response (-3 dB)70 Hz - 20 kHz
Transformer taps7.5 W (70V only), 15 W, 30 W, 60 W, or 8 ohm bypass
Power handling90 W continuous / 360 W peak
Maximum SPL110 dB (1 m, calculated), 116 dB peak
Coverage90 degrees nominal (-6 dB), horizontal and vertical
Dimensions (H x W x D)390 mm x 250 mm x 223 mm
Environmental ratingIP54 per IEC-60529
