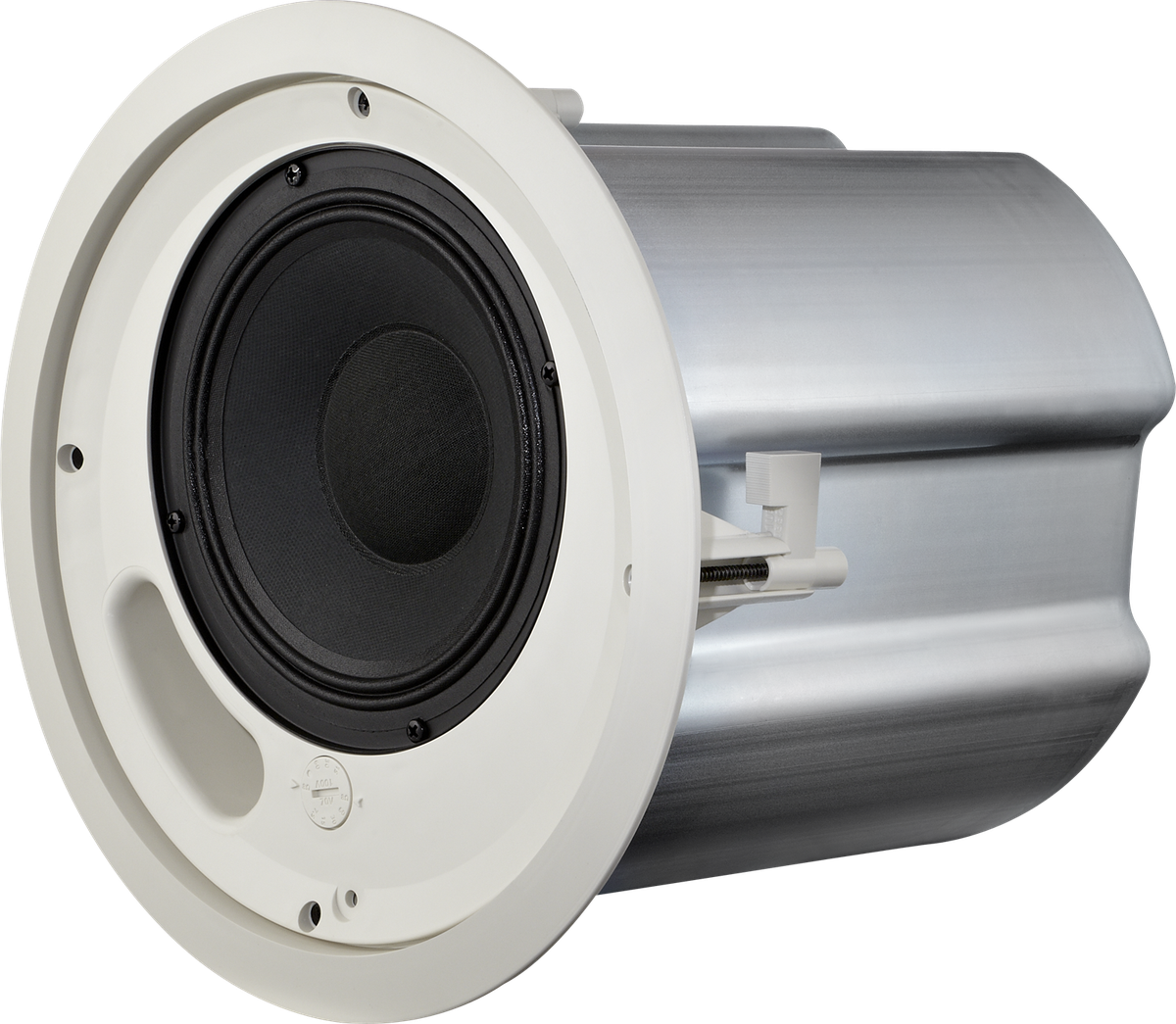

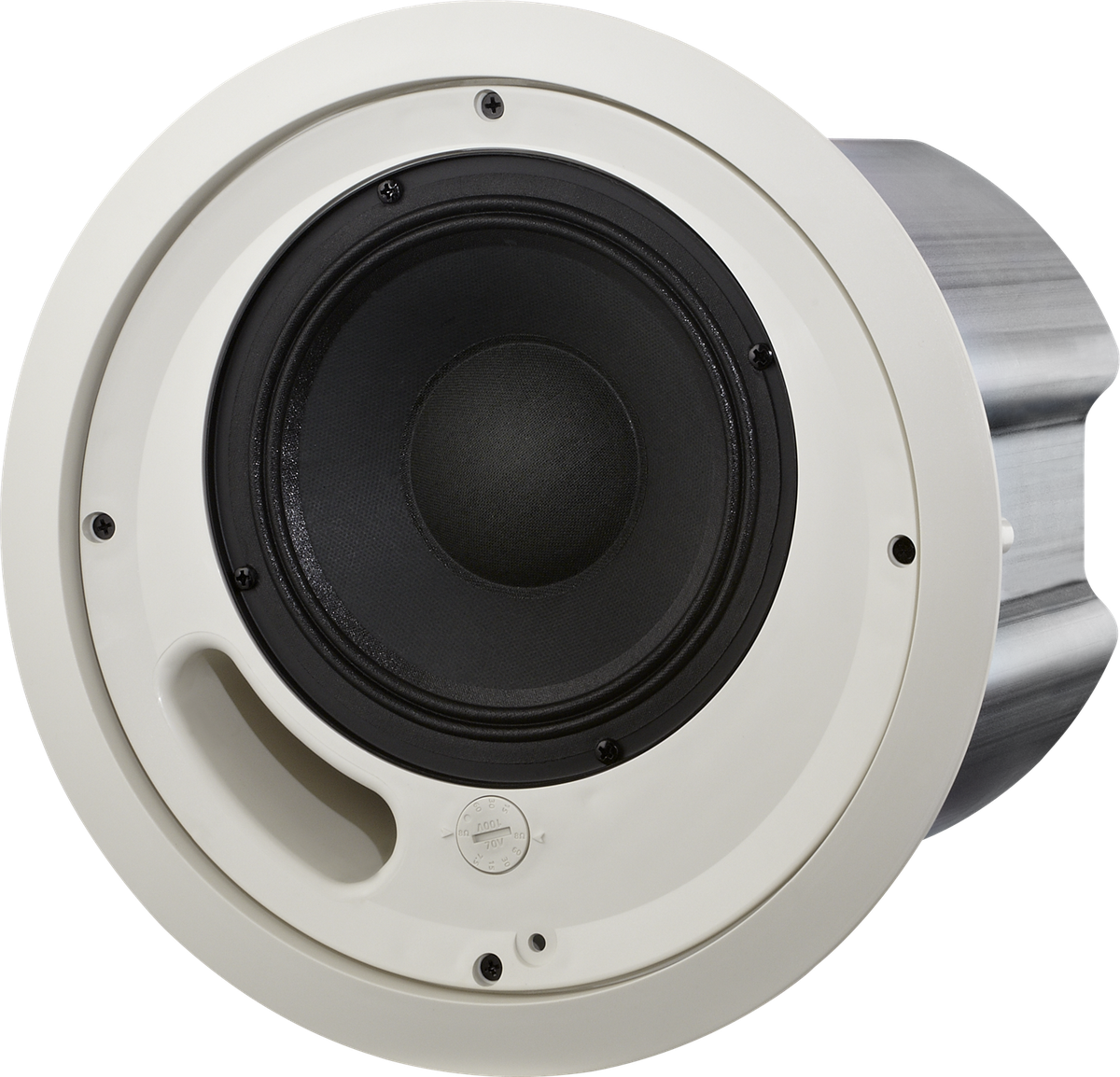

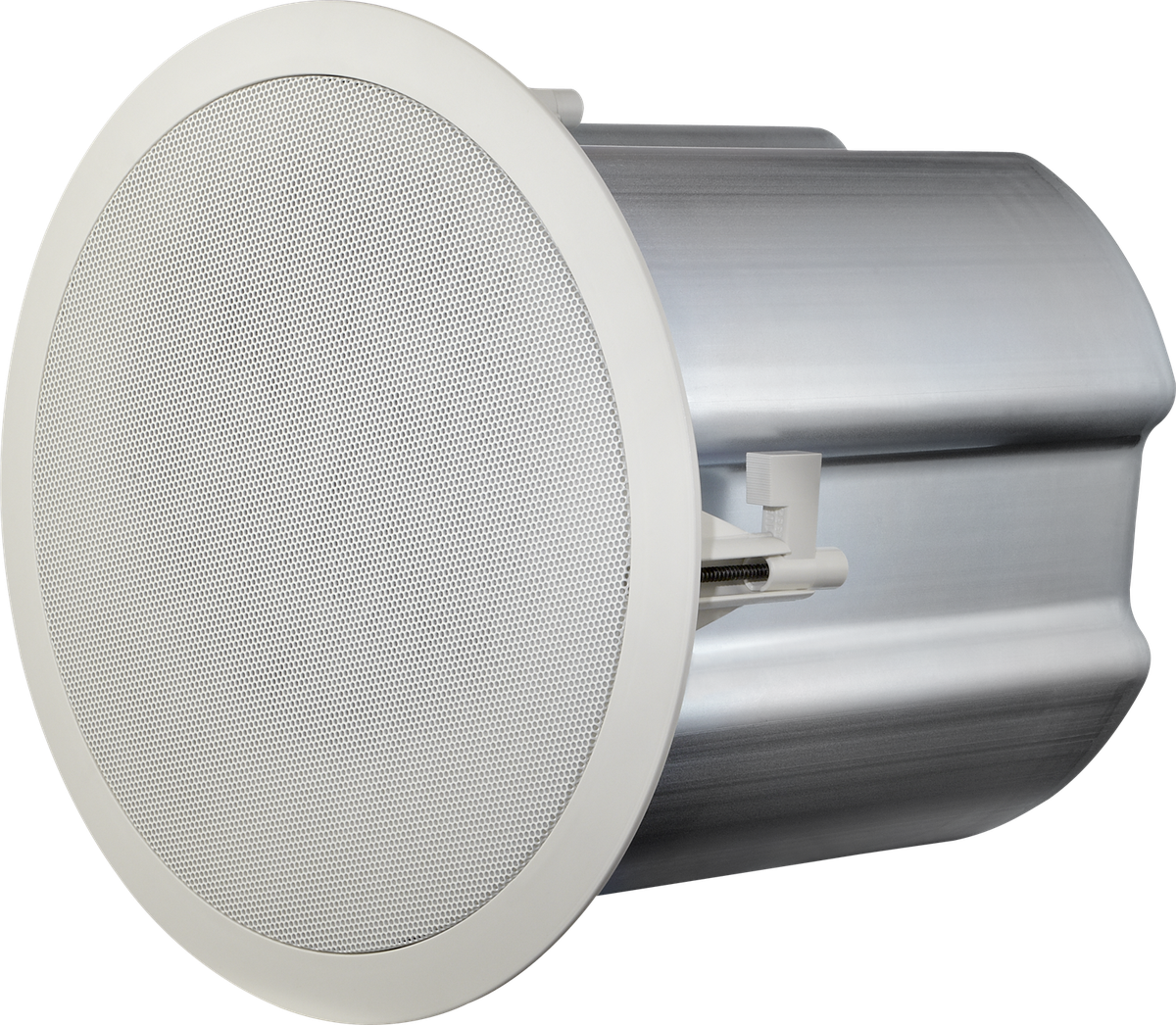

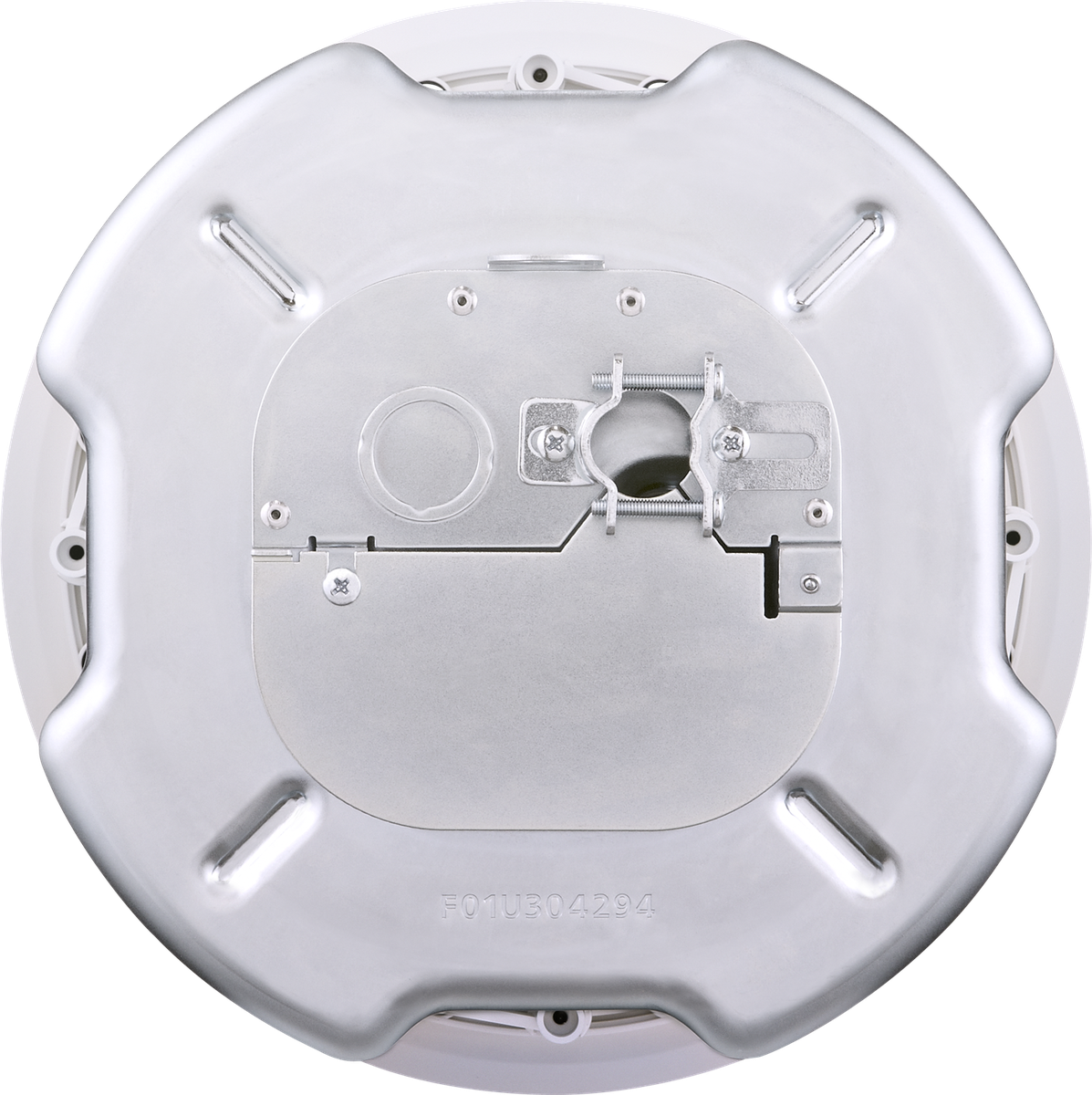

Electro-Voice EVID-PC6.2 Two-Way Ceiling Loudspeaker Enclosure

The EVID-PC6.2 is part of the Electro-Voice installed sound range. It pairs a 165 mm (6.5 in) with a 35 mm compression driver.

The cabinet is ABS plastic (UL94V-O) baffle, steel, back can. It connects by removable locking 4-pin (phoenix), 2.5 mm (12 AWG) max wire size. Net weight is 7.0 kg (15.4 lb). The grille is color matched steel grille with, fabric. Power Handling is 200 W program, 100 W pink noise.

LF Transducer165 mm (6.5 in)
HF Transducer35 mm Compression Driver
EnclosureABS Plastic (UL94V-O) Baffle, steel, back can
GrilleColor matched steel grille with, fabric
ConnectorsRemovable locking 4-pin (Phoenix), 2.5 mm (12 AWG) max wire size
Net Weight7.0 kg (15.4 lb)
Frequency Range (-10 db)50 Hz – 20 kHz
Power Handling200 W Program, 100 W Pink Noise
Dispersion100°
Sensitivity87 dB
Impedance10 ohms
Dimensions260 mm x 280 mm (10.2 in x 11.0 in)
