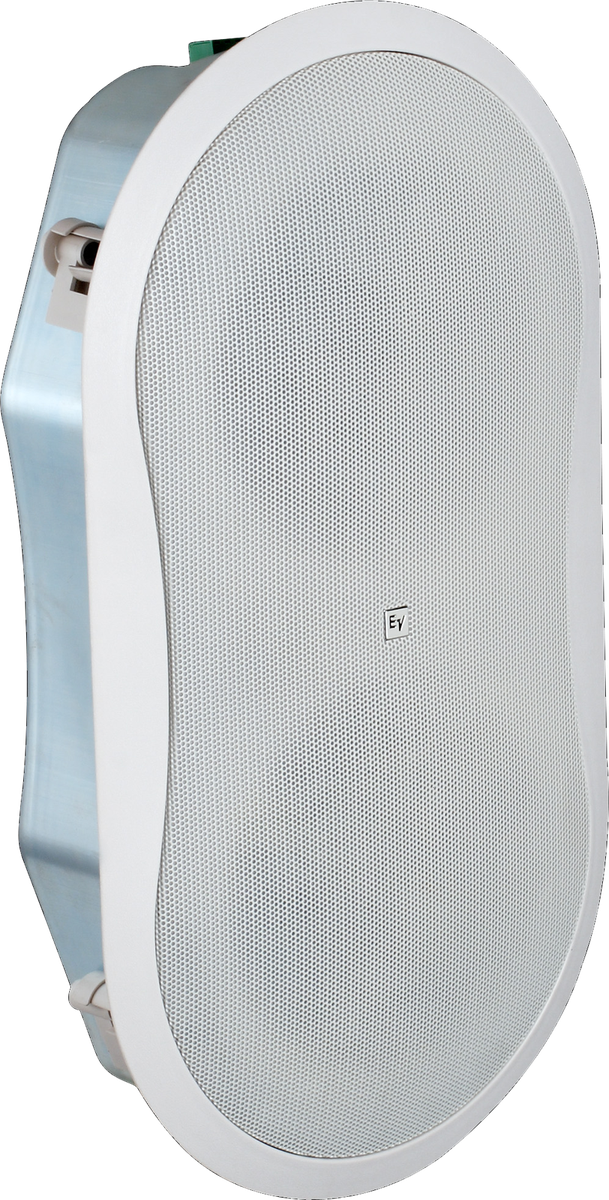

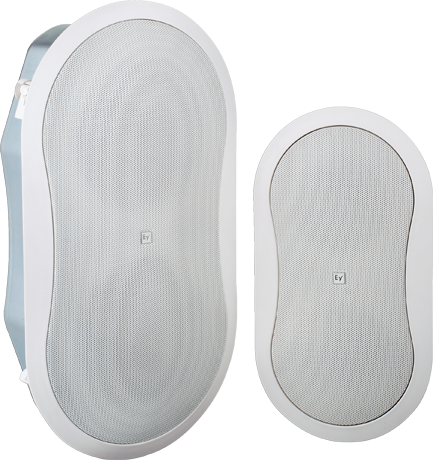

Electro-Voice EVID FM6.2 Flush-Mount Loudspeaker
The EVID FM6.2 is the shallow one. It is a 6 inch two-way flush-mount cabinet with a tuned passive radiator doing the low-end work that a bigger box would need depth for, so it fits walls and ceilings that will not take a deep enclosure. A 1 inch titanium dome tweeter carries the top, and full-bandwidth overload protection keeps an over-driven zone from costing you a driver.
One model covers 70 V, 100 V and 8 ohm operation, selected on a front-panel switch, so a single part number stocks for both distributed and low-impedance jobs. The enclosure is fully sealed, which matters when the ceiling void is shared with the room next door. Zinc-plated metal construction, white finish.
| Frequency range (-10 dB) | 52 - 20000 Hz |
|---|---|
| Sensitivity 1 W / 1 m | 90 dB |
| Maximum SPL (calculated) | 115 dB |
| LF transducer | 6 inch with 6 inch passive radiator |
| HF transducer | 1 inch Titanium dome tweeter |
| Coverage (horizontal) | 120° |
| Coverage (vertical) | 120° |
| Power handling (continuous / peak) | 75 W continuous, 300 W peak |
| Transformer taps | 7.5, 15, 30, 60 w at 70 v |
| Enclosure material | Zinc Plated Metal |
| Input connections | 4-pin Phoenix |
| Net weight | 5.8 kg |
