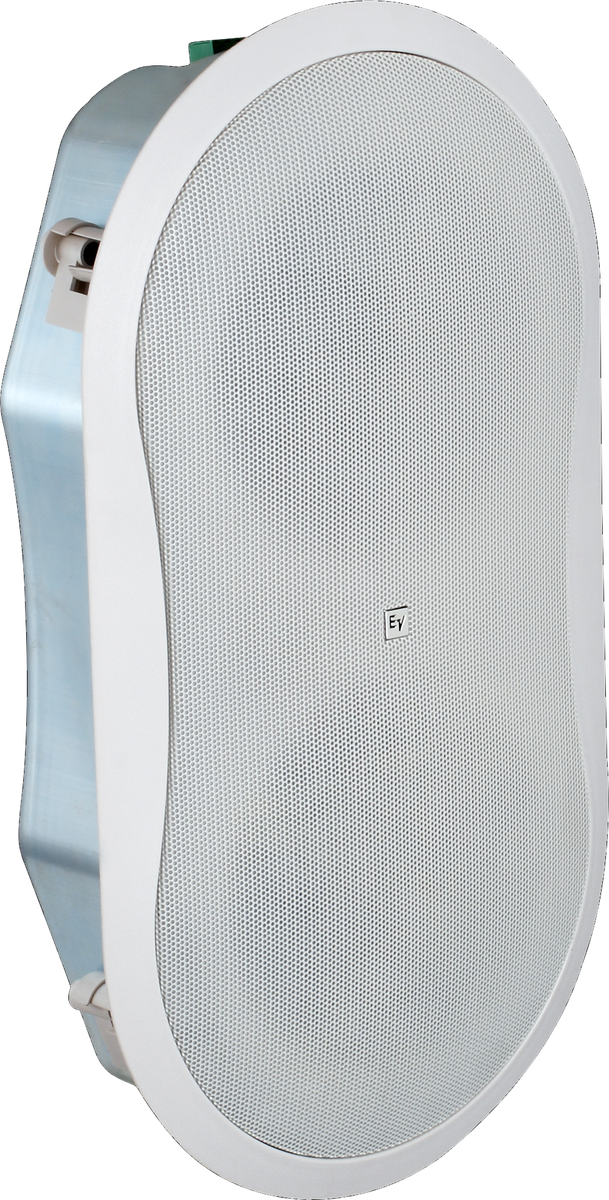

Electro-Voice EVID FM4.2 Flush-Mount Loudspeaker

The EVID FM4.2 is the shallow one. It is a 4 inch two-way flush-mount cabinet with a tuned passive radiator doing the low-end work that a bigger box would need depth for, so it fits walls and ceilings that will not take a deep enclosure. A 1 inch titanium dome tweeter carries the top, and full-bandwidth overload protection keeps an over-driven zone from costing you a driver.

One model covers 70 V, 100 V and 8 ohm operation, selected on a front-panel switch, so a single part number stocks for both distributed and low-impedance jobs. The enclosure is fully sealed, which matters when the ceiling void is shared with the room next door. Zinc-plated metal construction, white finish.

Frequency range (-10 dB)52 - 20000 Hz
Sensitivity 1 W / 1 m87 dB
Maximum SPL (calculated)110 dB
LF transducer4 inch with 4 inch passive radiator
HF transducer1 inch Titanium dome tweeter
Coverage (horizontal)150°
Coverage (vertical)150°
Power handling (continuous / peak)50 W continuous, 200 W peak
Transformer taps1.75, 3.75, 7.5, 15, 30 at 70 v
Enclosure materialZinc Plated Metal
Input connections4-pin Phoenix
Net weight2.9 kg
