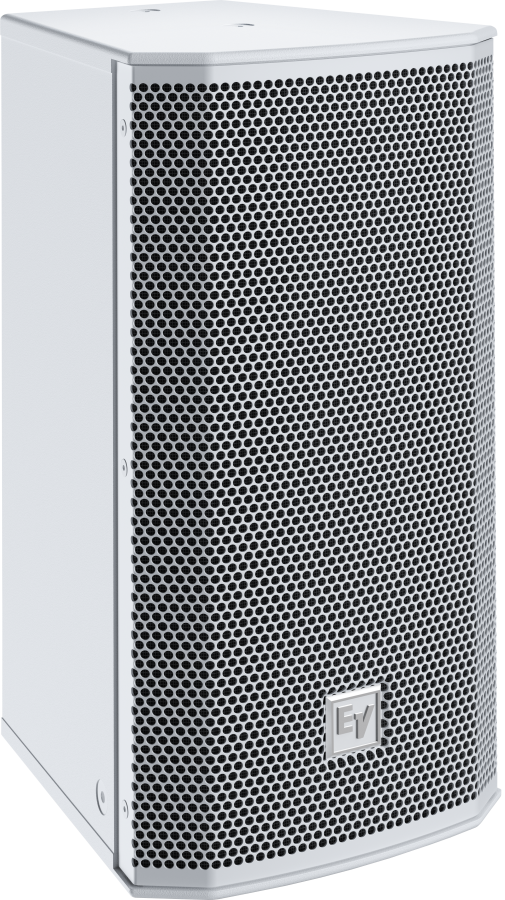

Electro-Voice EVC-1082-00

The EVC-1082-00 is part of the Electro-Voice installed sound range.

The cabinet is 15mm weather-resistant plywood with EV coat. It connects by dual four-pin 10 AWG (6 mm) Phoenix/Euro block screw-terminals. Rigging is eight M10 suspension points, optional U bracket or pan/tilt wall mount. The grille is 18 GA cold-rolled steel with rotatable logo (18 GA stainless steel with hydrophobic cloth on PI models). Color is black or white. Rotatable coverage is 100° x 100°. Pick the version you need above: Black; White; Black, PI weather-resistant; White, PI weather-resistant.

Enclosure	15mm weather-resistant plywood with EV Coat
Grille	18 GA cold-rolled steel with rotatable logo (18 GA stainless steel with hydrophobic cloth on PI models)
Color	Black or White
Connectors	Dual four-pin 10 AWG (6 mm) Phoenix/Euro Block screw-terminals
Environmental Specs	IEC 60529, IP44 (IP55 for PI versions)
Suspension	eight M10 Suspension Points, optional U Bracket or pan/tilt wall mount
Rotatable coverage	100° x 100°
Frequency Response (-3 dB)	75Hz-20k
