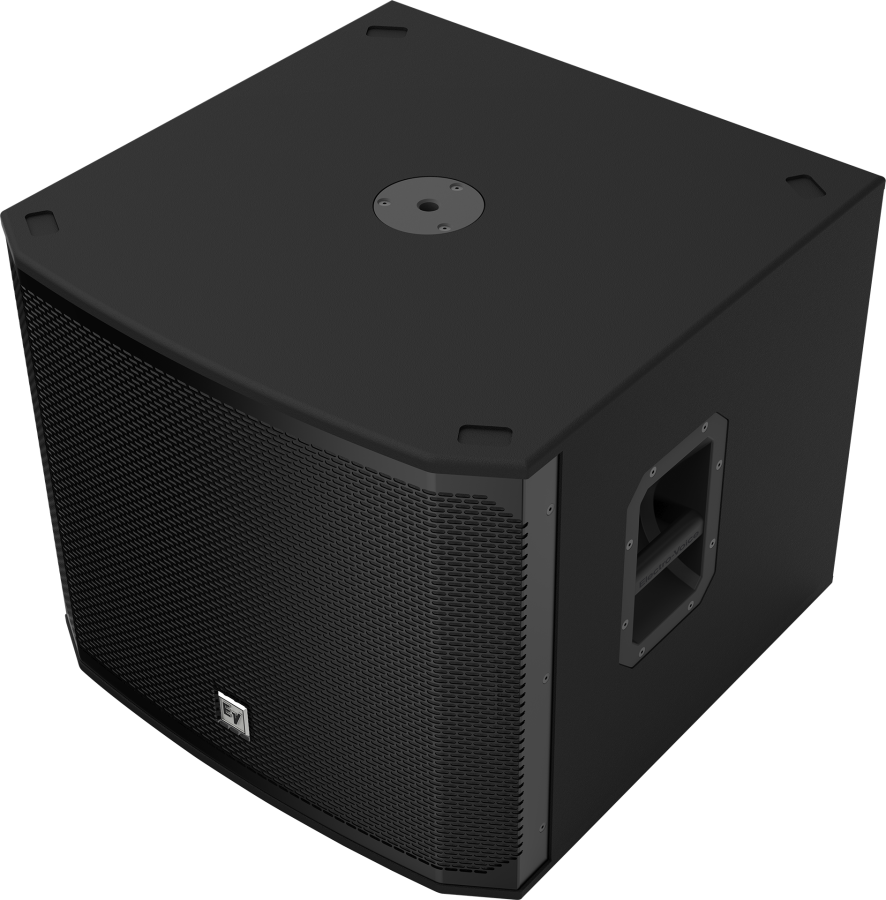

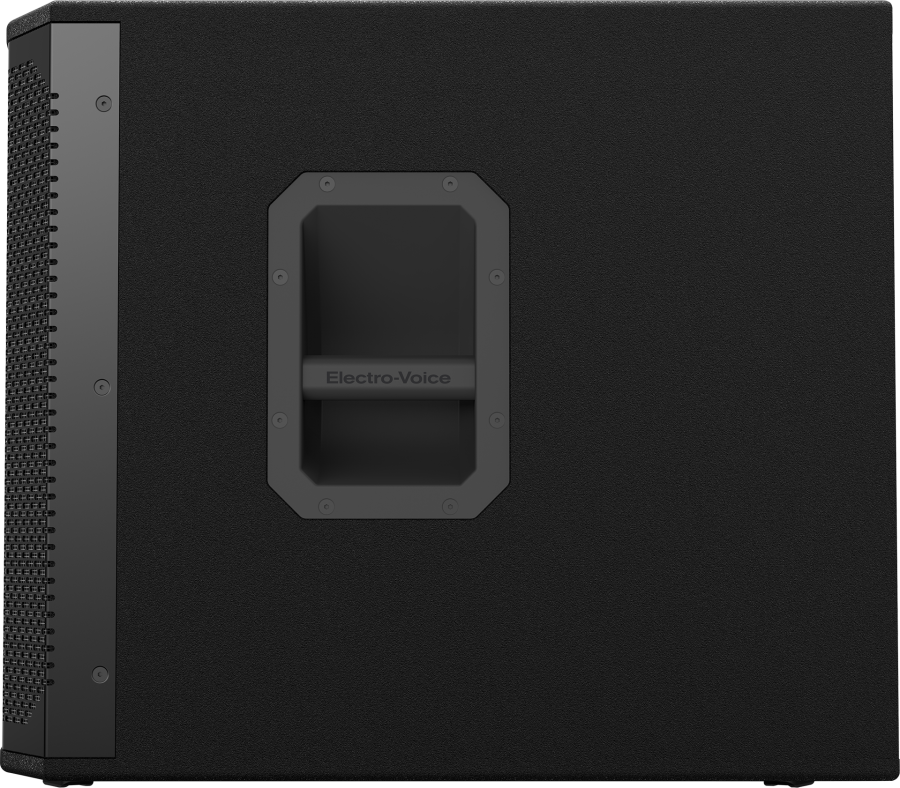

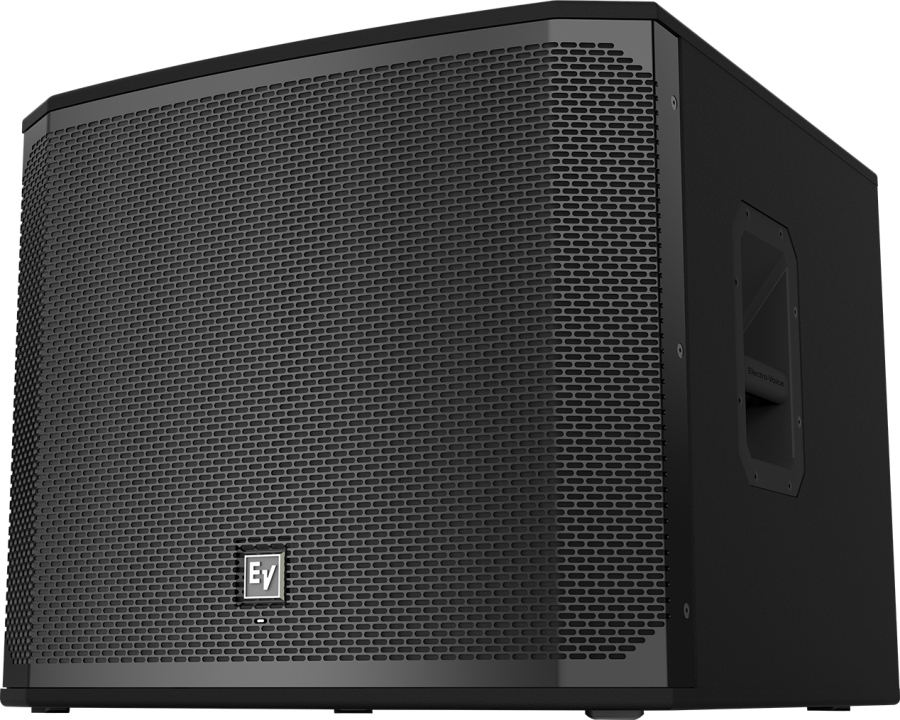

Electro-Voice EKX-18SP 18-Inch Powered Subwoofer

The EKX-18SP puts a 1300 W Class D amplifier behind an EVS-18C 18-inch driver and reaches 40 Hz at -3 dB. It is the cabinet to pick when the room has depth and the programme has real bottom - a DJ set, a band with keys and bass, a corporate ballroom that has to feel solid at the back.

QuickSmartDSP gives four selectable low-pass points and cardioid control technology, so a pair of cabinets can be configured to push energy forward and pull it off the stage. Two XLR/TRS combo inputs and two XLR link outputs pass signal to the tops. The plywood cabinet has slot ports, a reinforced steel grille and an M20 pole plate.

Type	18-inch powered subwoofer
Amplifier	1300 W Class D
Frequency response (-3 dB)	40 Hz - 150 Hz
Maximum SPL	134 dB peak
Transducer	EVS-18C 457 mm (18 in)
Low-pass frequency	Selectable 80 / 100 / 120 / 150 Hz
Processing	QuickSmartDSP with Cardioid Control Technology
Inputs / outputs	(2) XLR/TRS combo jacks, (2) XLR link outputs
Enclosure	15 mm plywood with EVCoat; 18 AWG steel grille
Dimensions (H x W x D)	520 x 606 x 612 mm (20 x 24 x 24 in)
Net weight	32.8 kg (72.4 lb)
Pole mount	M20 threaded pole mount plate
