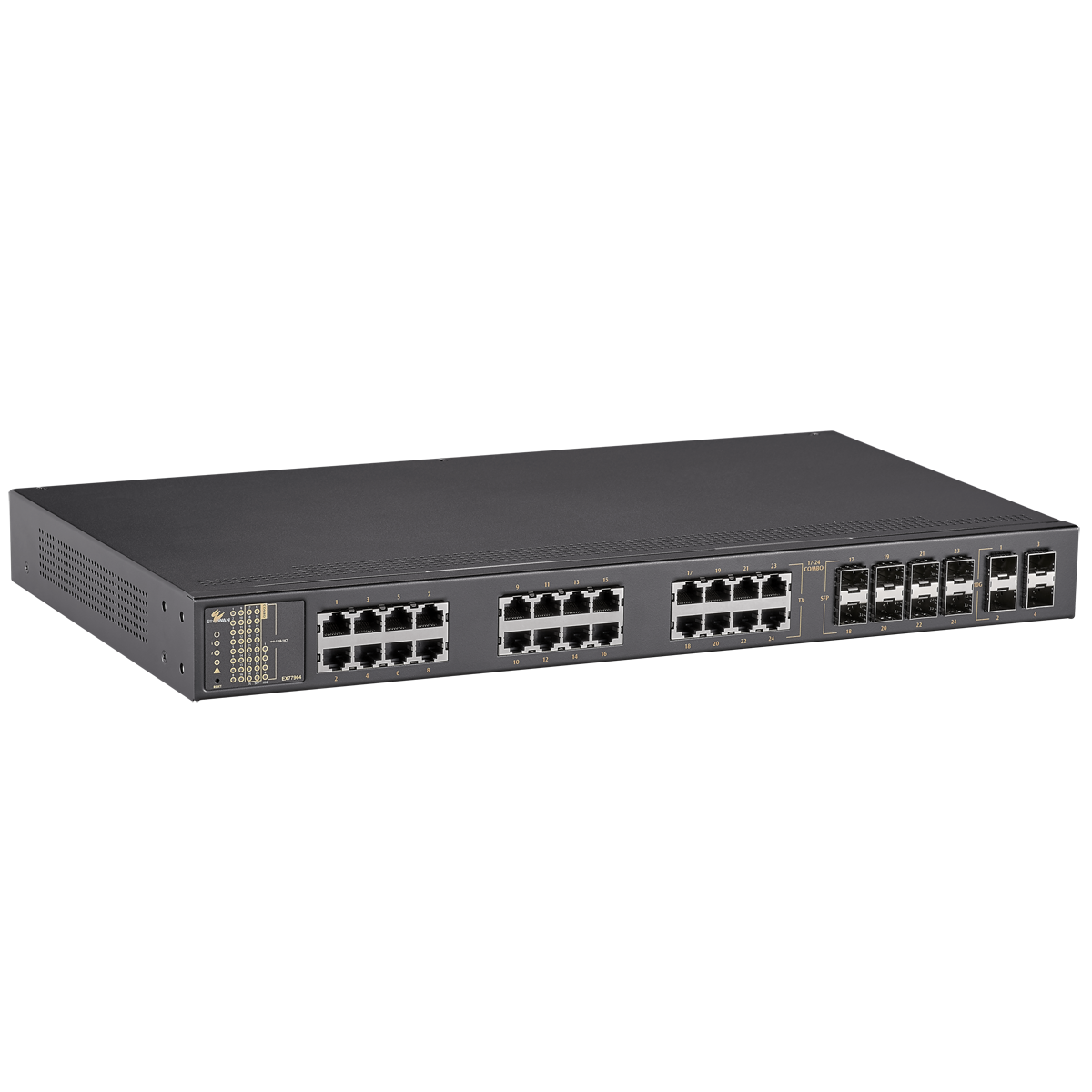

EtherWAN EX77964 16-Port 10/100/1000BASE-TX + 8-Port 100/1000BASE SFP Combo + 4-Port 1G/10G SFP+ (12-24VDC)

The EtherWAN EX77964 is a 16-port 10/100/1000BASE-TX + 8-port 100/1000BASE SFP Combo + 4-port 1G/10G SFP+ (12-24VDC).

EtherWAN publishes input 12-24VDC Redundant (Terminal block), dimensions 430 x 254 x 44.2mm (W x D x H); 16.9" x 10" x 1.74", installation Mounting brackets. Ordered as EtherWAN part number EX77964-8VB. Specifications and photography as published by EtherWAN at etherwan.com/products/ex77964. The switch draws 31.08 W, weighs 3.29 kg, and is UL 62368 listed. It forwards store-and-forward with auto-negotiation, and its 1U mounting brackets fit a 19 inch rack, where the four 10G SFP+ ports can uplink a floor of cameras or access points to the core.

Input12-24VDC Redundant (Terminal block)
Power Consumption31.08W
Dimensions430 x 254 x 44.2mm (W x D x H); 16.9" x 10" x 1.74"
Weight3.29Kg (7.25lbs)
InstallationMounting brackets
SafetyUL 62368
Processing TypeStore-and-Forward; Auto-negotiation; Half-duplex back-pressure and IEEE 802.3x Full-duplex flow control; Auto MDI/MDIX
