Elation Show Designer 2CF Stage

Name: Elation Show Designer 2CF Stage
Brand: Elation
Price: 1440.00 USD
Availability: LimitedAvailability

Manufacturer has discontinued this model. Call or email for remaining stock and lead time.

The Elation Show Designer 2CF is a stage lighting product from Elation. Rated compact flash drive: 64MB (2GB Max) FAT16 Formatted Cards ONLY, SanDisk, Kodak, or Canon brand Compact Flash Cards Recommended. Rated width: 11.75" (298.5mm).

Control / connections covers 2 Universes (1,024 DMX Channels), 48 Fixtures up to 32 DMX Channels each, 8 Sliding Faders x 4 Banks, 4 Rotary Wheels. Electrical is quoted at 120V/220V 9-12v DC/1200ma External Power Supply. Listed length: 20.25" (514.4mm). Ordering code SHOWDESIGNER2CF.

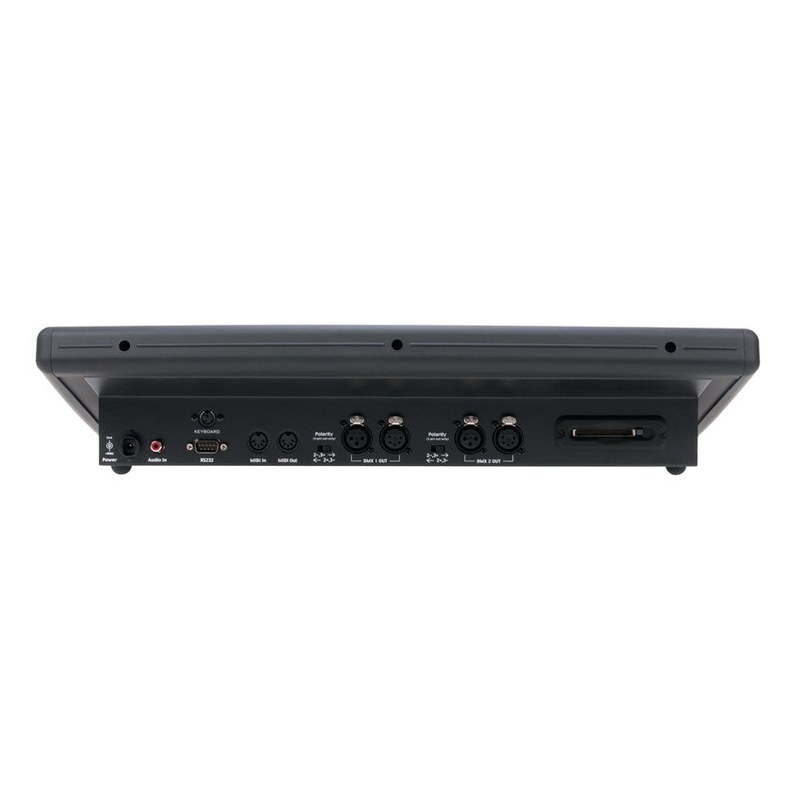

Control / Connections	2 Universes (1,024 DMX Channels), 48 Fixtures up to 32 DMX Channels each, 8 Sliding Faders x 4 Banks, 4 Rotary Wheels, 80 Character Backlit LCD Display, Pan/Tilt Joystick, 2 3pin XLR DMX...
Compact Flash Drive	64MB (2GB Max) FAT16 Formatted Cards ONLY, SanDisk, Kodak, or Canon brand Compact Flash Cards Recommended
Length	20.25" (514.4mm)
Width	11.75" (298.5mm)
Vertical Height	4.25" (108mm)
Weight	23.8 lbs. (10.8 kg)
Electrical	120V/220V 9-12v DC/1200ma External Power Supply
