Elation FLEX PIXEL DRIVER 1 LED Pixel Fixture,

Manufacturer has discontinued this model. Call or email for remaining stock and lead time.

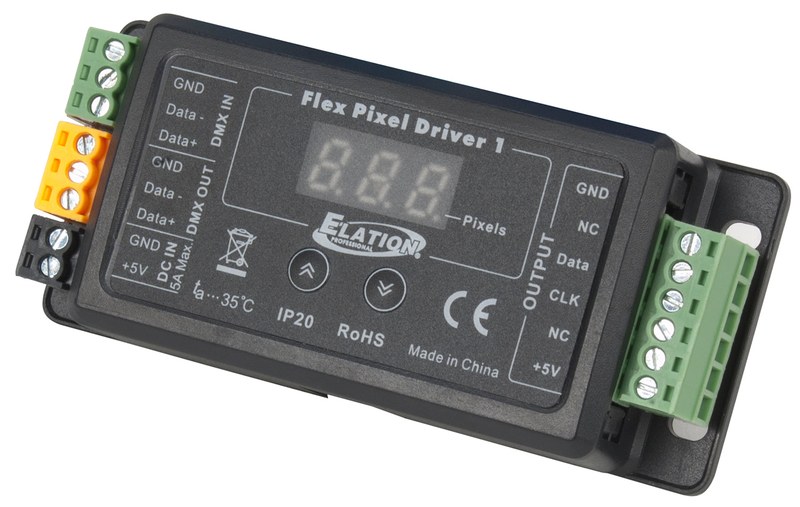

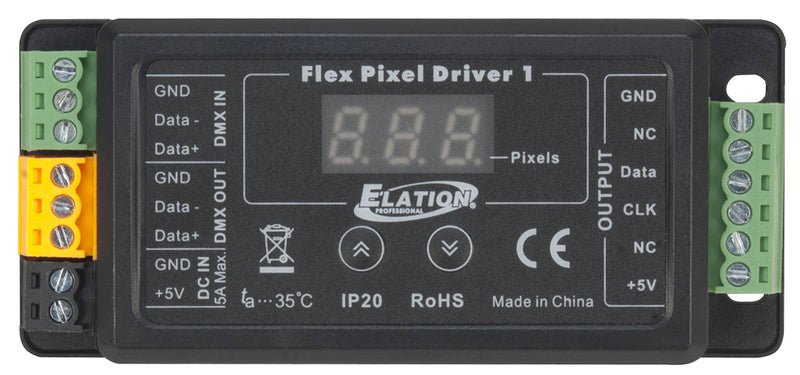

The Elation FLEX PIXEL DRIVER 1 is an LED pixel fixture from Elation. Rated width: 1.6" (40mm). Rated height: 0.8" (20mm).

Control / connections covers Up To 144 Pixels Max, Up To 432 DMX Channels, DMX IN via 3pin Terminal Block, DMX OUT via 3pin Terminal Block. Listed length: 3.5" (90mm). Ordering code FLEX PIXEL DRIVER1.

Control / ConnectionsUp To 144 Pixels Max, Up To 432 DMX Channels, DMX IN via 3pin Terminal Block, DMX OUT via 3pin Terminal Block, LED Tape Output via 6pin Terminal Block, POWER IN via 2pin Terminal Block
Length3.5" (90mm)
Width1.6" (40mm)
Height0.8" (20mm)
Weight0.12 lbs. (0.055kg)
ApprovalsCE | cETLus | RoHs | IP20
