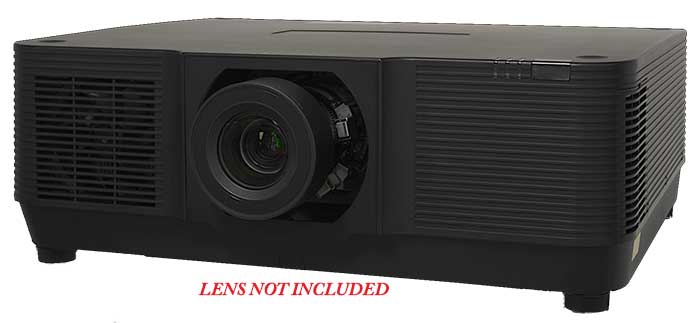

Eiki EK-1000LU 3LCD Laser Projector
The EK-1000LU is a large-venue 3LCD projector built around a blue-laser-and-phosphor light engine that pushes 10,000 center lumens at native WUXGA (1920 x 1200) resolution. Three 0.75-inch LCD panels keep color brightness equal to white brightness, and a dynamic 100,000:1 contrast ratio holds detail in dark scenes across an auditorium, house of worship, or lecture-hall screen. A built-in 4K scaler accepts higher-resolution sources and maps them cleanly onto the panel.
The sealed, filter-free optical engine and laser light source run for roughly 20,000 hours with essentially no maintenance, so the projector can live in a ceiling rig and be left alone. It ships without a lens so you can match the throw to the room; Eiki's EK-series power-zoom optics such as the AH-EC21020 and AH-EC24010 mount directly. HDMI inputs and wired LAN control feed and manage it from a rack or a distant source.
| Display | 3-chip 3LCD, 0.75 in panels |
|---|---|
| Resolution | WUXGA 1920 x 1200 (16:10) |
| Brightness | 10,000 center lumens |
| Contrast Ratio | Dynamic 100,000:1 |
| Light Source | Blue laser + phosphor, ~20,000 hours |
| Signal | 4K scaler, HDMI input |
| Lens | Interchangeable, not included |
