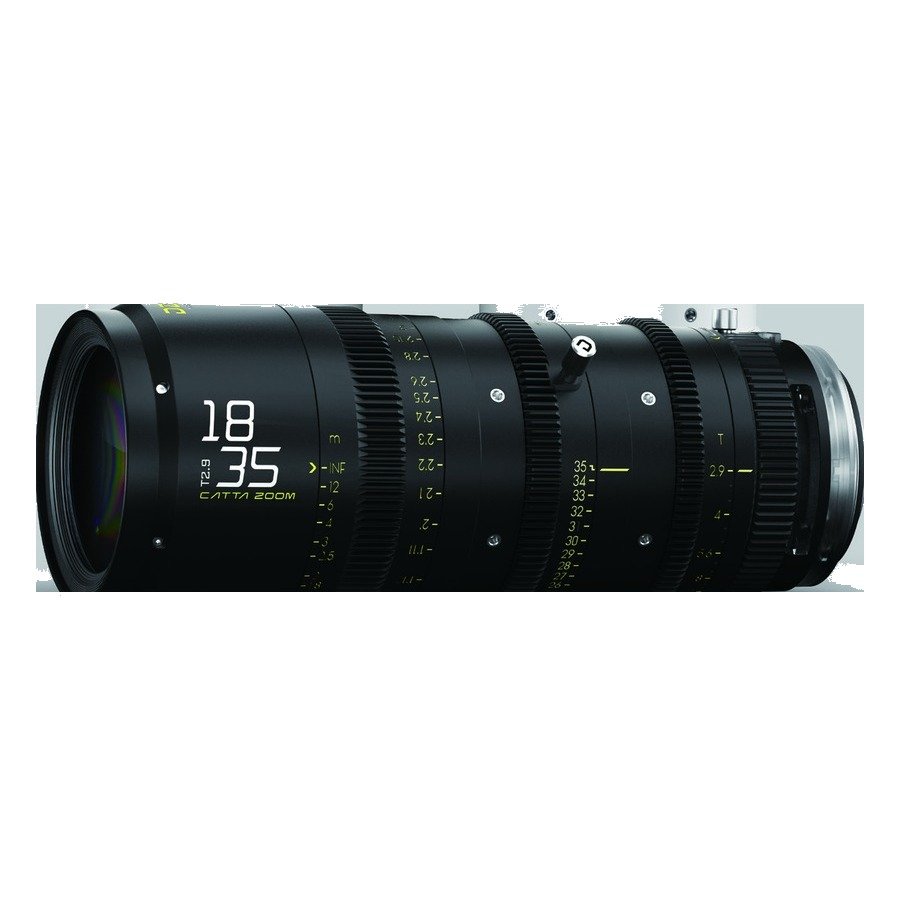

DZOFILM Catta Zoom 18-35mm T2.9 Full Frame Cine Zoom Lens (E Mount, Black)
Catta Zoom is DZOFILM's full frame cine zoom line for mirrorless cameras: short flange mounts, a constant T2.9 and a dia. 43.5mm image circle that covers full frame. The 18-35mm is the wide member of the three-zoom family and focuses to 0.51m from the sensor plane.
This is the black finish supplied in Sony E mount; the mount itself is user-interchangeable with DZOFILM's RF, L, X and Z kits, so one lens follows the camera package rather than the other way round. Front diameter is dia. 80mm with an M77 filter thread, focus rotation is 270 degrees and zoom rotation 100 degrees, on 0.8 Mod gears.
| Focal Length | 18-35mm |
|---|---|
| Aperture | T2.9-T22 |
| Image Circle | dia. 43.5mm (Full Frame) |
| Zoom Ratio | 1.9X |
| Close Focus (from sensor plane) | 0.51m / 1ft8in |
| Mount | E (interchangeable with RF / L / X / Z kits) |
| Flange Distance | E=18mm, L/RF=20mm, X=17.7mm, Z=17mm |
| Optical Construction | 20 Elements in 14 Groups |
| Iris Control | Manual (77 deg) |
| Focus Control | Manual (270 deg) |
| Zoom Control | Manual (100 deg) |
| Iris Blades | 16 |
| Front Diameter | dia. 80mm / 3.15in |
| Filter Size | M77 |
| Gear Pitch | 0.8 Mod |
| Housing Material | Aluminum Alloy |
| Colour | Black |
| Manufacturer Part Number | DZO-FF1835E-BLK |
