Datavideo ITC-300 Digital Intercom System

The ITC-300 is a wired digital intercom base station taking up to eight belt packs on direct connections, so a director can talk to all positions at once or to one at a time. Belt packs run up to 100m from the base, which covers a studio floor or a modest outside broadcast.

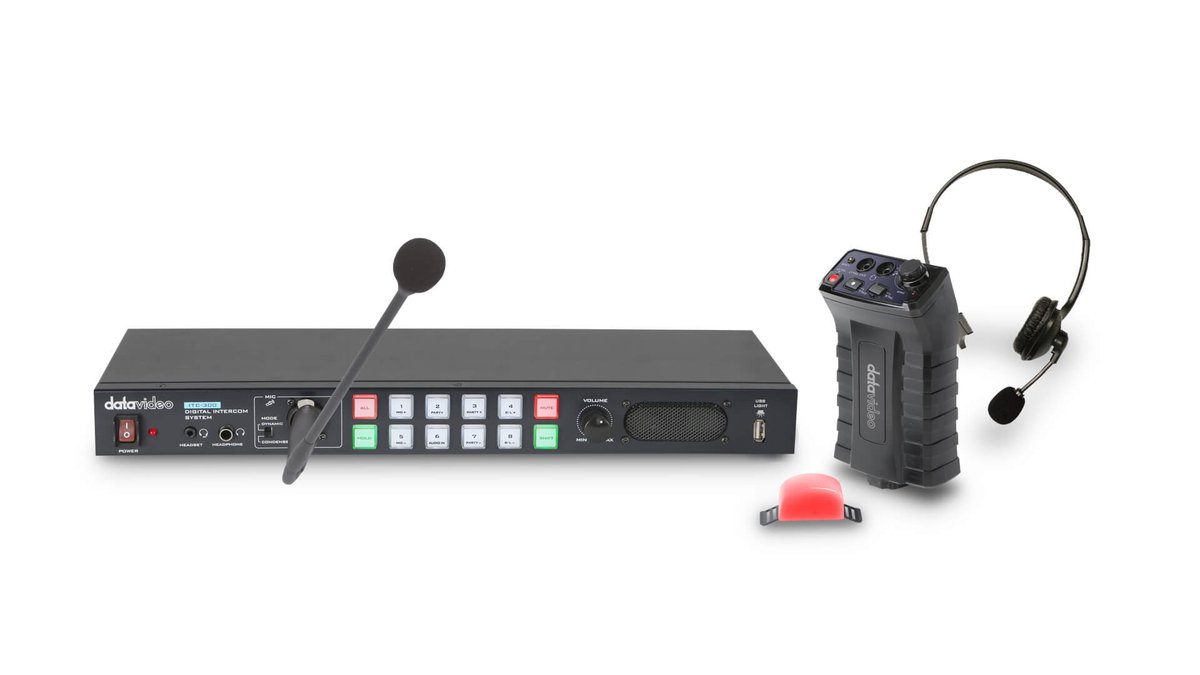

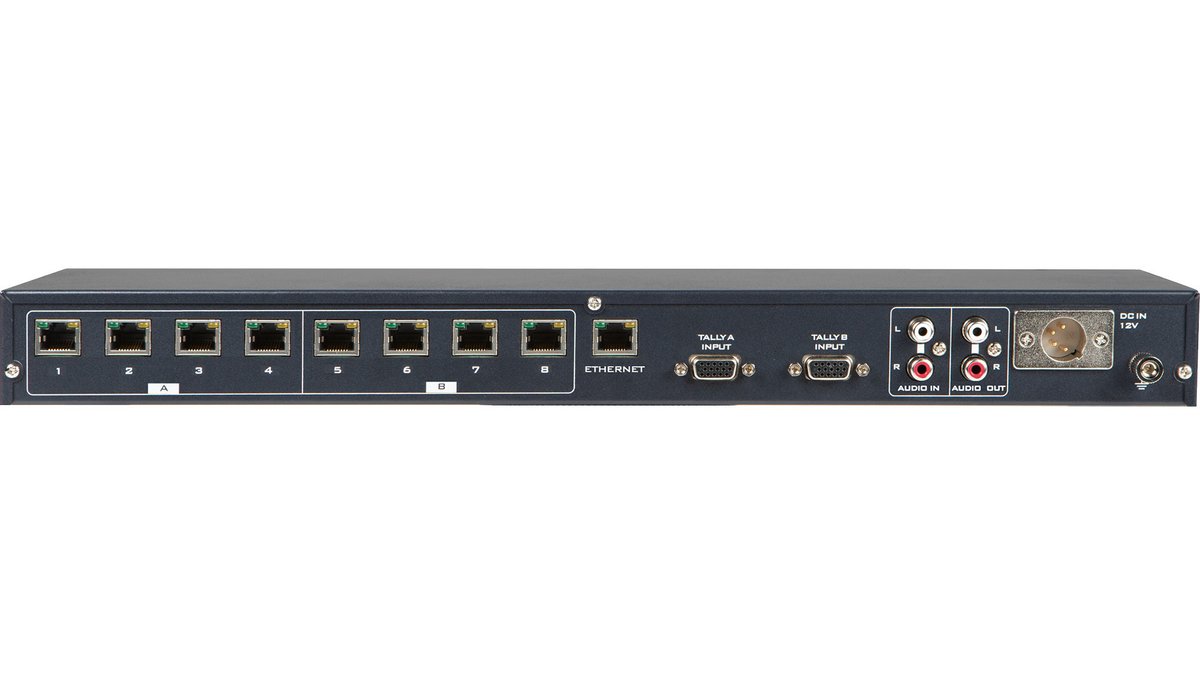

It is a standard 19 inch 1U chassis, so it racks alongside the switcher, and it integrates with Datavideo switchers including the SE-500HD and SE series through two 15-pin D-Sub tally connectors for tally A and tally B. The operator position takes a 3-pin XLR or 1/4 inch microphone, switchable between condenser and dynamic, plus a 3.5mm headset jack and a 1/4 inch headphone socket, with a 3W built-in speaker that mutes when a headset is plugged in. Audio response is 300 Hz to 7 KHz within 3 dB at better than 70 dB signal to noise.
