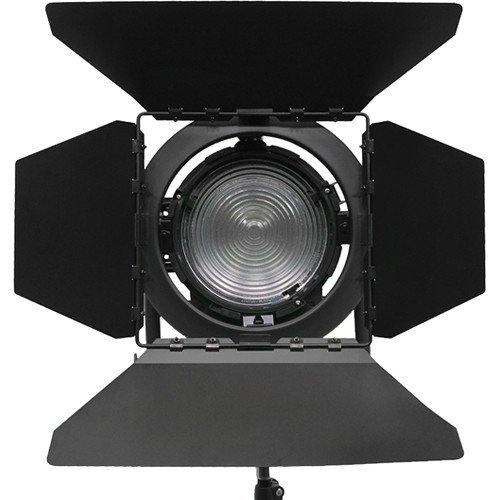

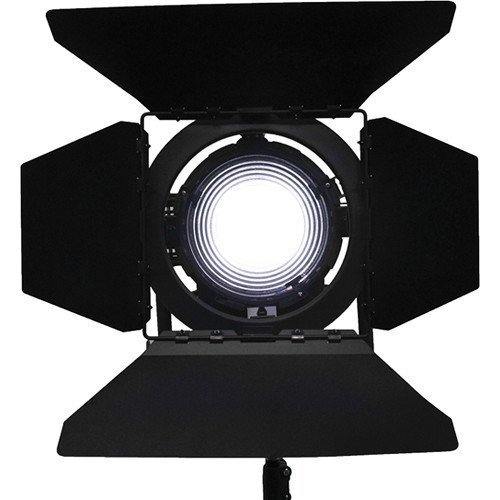

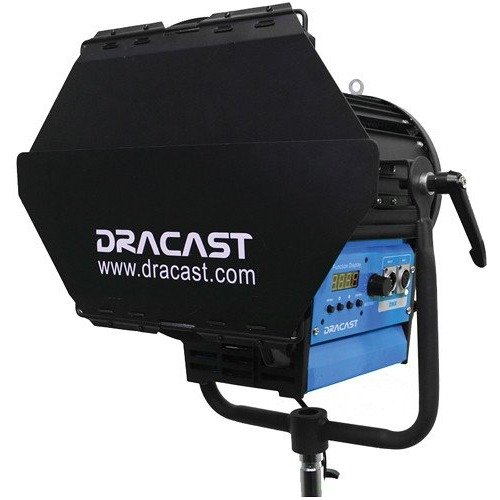

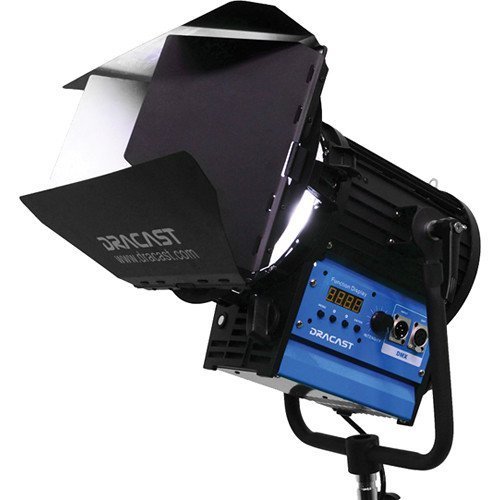

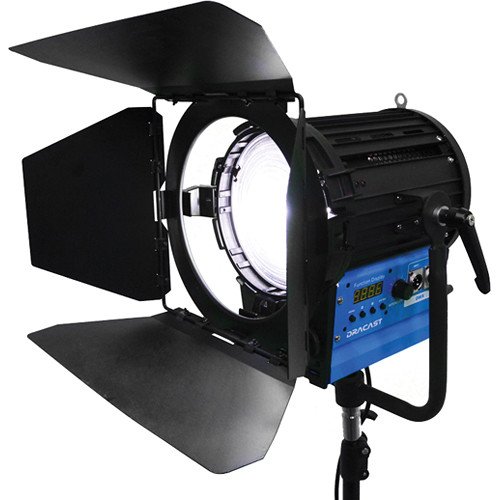

Dracast Fresnel Studio Series LED2000 Daylight Light
The Fresnel Studio LED2000 Daylight from Dracast is packed with the latest LED technology backed with solid construction, intuitive design and a wide 15-60 degree range of beam adjustment. The daylight balanced light has a Kelvin temperature or 5,600 for work outdoors or to match other light sources such as HMIs. Dimming from 0-100% is easily done locally on the unit or remotely via DMX.
The Fresnel Studio LED2000 is a high-output LED fixture that runs cool to the touch and consumes a fraction of the power of a traditional halogen fixture, resulting in lower HVAC running costs in the studio and a quick return on your investment. The light ships with a 100-240 VAC power adapter for worldwide use and, with an optional adapter, it also runs on 24 VDC in locations where mains power is unavailable. The Fresnel 2000 comes with a 5/8" receiver for hanging or stand mounting.
| Series | Studio Series |
|---|---|
| Manufacturer Part Number | DRDRLF2000D |
| DMX Control | DMX 512 |
| Beam Angle | 15 - 60 degrees |
| Color Temperature | 5600K |
| CRI | 90 |
| Lumens | 17,000 |
| Housing Material | Aluminum |
| Cooling System | None |
| Dimming | 0 to 100% |
| Fixture Dimensions | 20.4 x 18.9 x 13.0" (51.8 x 48.0 x 33.0 cm), including yoke and barndoors |
| Fixture Weight | 26.45 lb (12 kg), including yoke and barndoors |
| DMX Connector | 3-pin XLR |
| Lens | 7" Fresnel |
| Yoke Mount | TVMP / hex bolt |
| Fixture Mount | 5/8" receiver |
| AC Input | 100 to 240 VAC, 50/60 Hz |
| DC Input | 24 VDC at 10 A |
| IP Rating | IP21 |
