Deity V-Link 48V to Plug-In Power XLR Adaptor

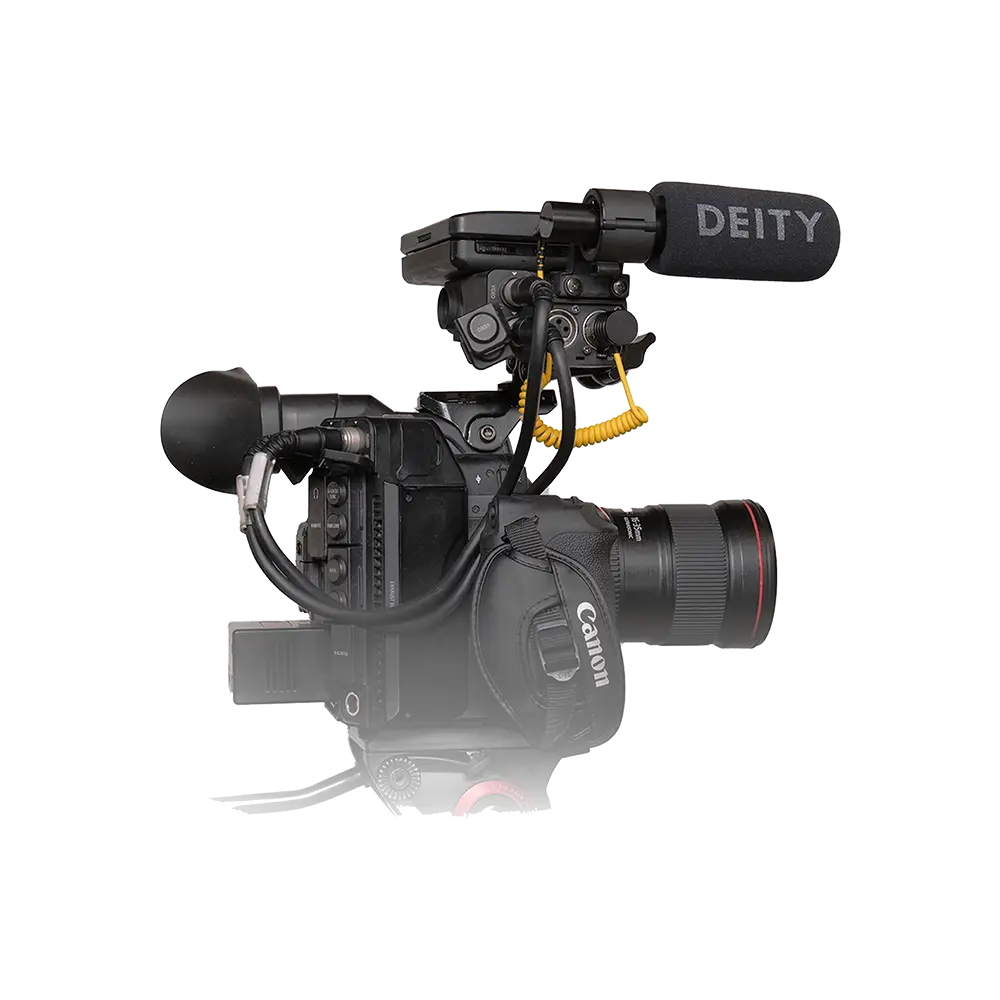

The V-Link lets a 3.5 mm video microphone run off an XLR input on a camera or field recorder. Passive 3.5 mm mics want plug-in power, not phantom, so wiring one to an XLR normally means an adaptor plus a converter plus two more failure points. The V-Link converts 48 V down to plug-in power in one piece.

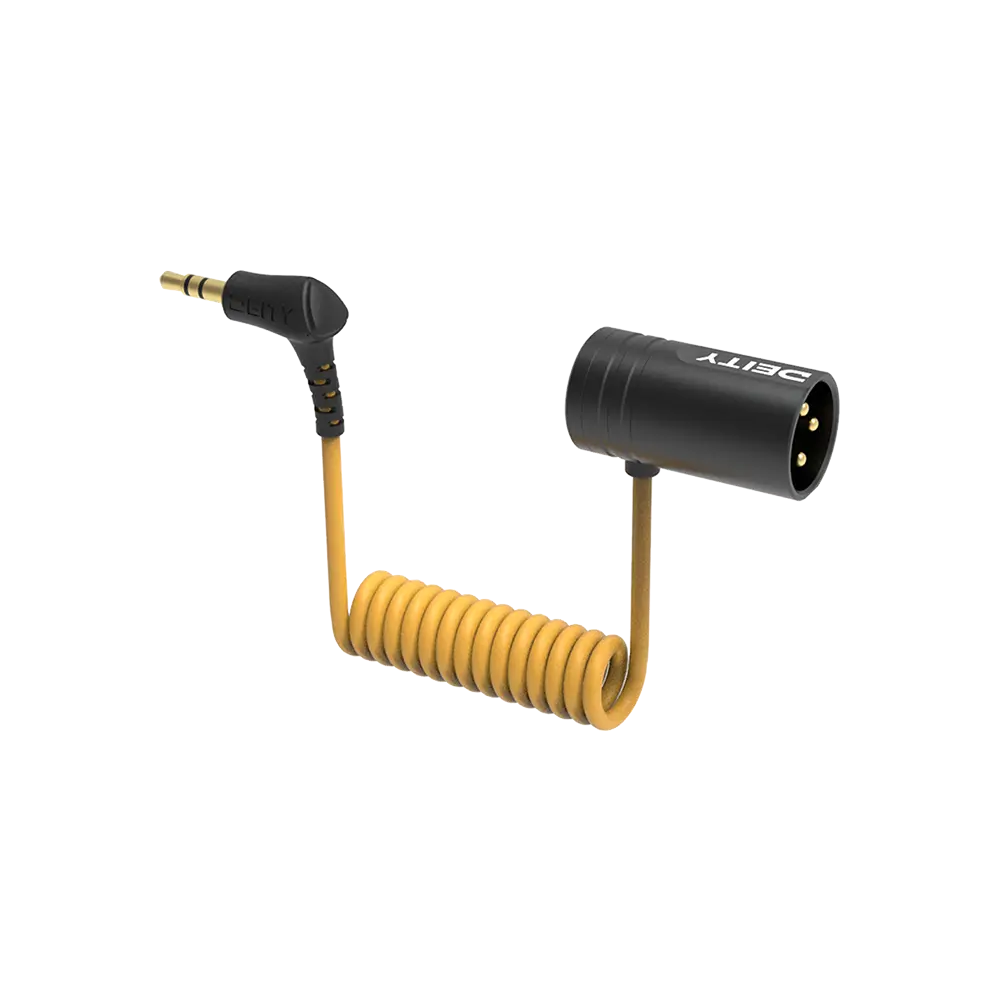

The XLR jack is a low-profile right angle so the cable turns flat against the body, and the 3.5 mm tail is coiled and captive, so there is no separate short cable to lose or to work loose. Deity rates it as adding no noise to the signal, and the body is metal.

Input48 V phantom power, XLR
OutputPlug-in power, 3.5 mm TRS
ConnectorLow-profile right-angle XLR
CableIntegrated coiled 3.5 mm lead
ConstructionMetal body
