dBTechnologies OPERA 12 2-Way Active Speaker
dBTechnologies builds the OPERA 12 for professional sound reinforcement. It is a 2-Way Active Speaker driven by a Amp SMPS Power supply dual range amplifier in Class D rated 600 W RMS and 1200 W peak for a maximum SPL of 129 dB. Response reaches 52 - 20.000 Hz. The low section uses 12 in, 2 in v.c. and the high section 1 in Exit, 1.4 v.c. crossing over at 2000 Hz.

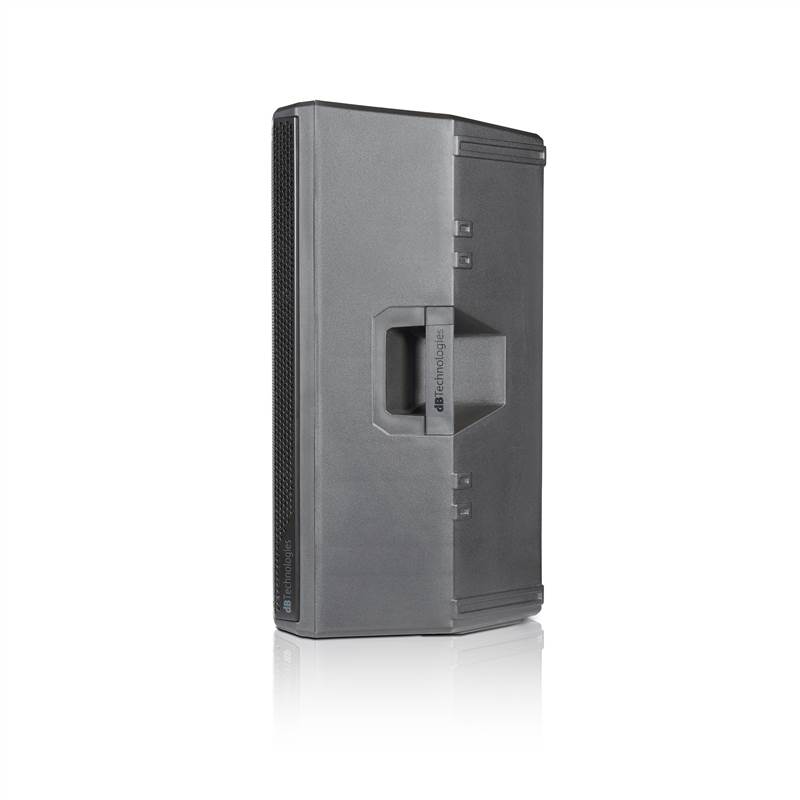

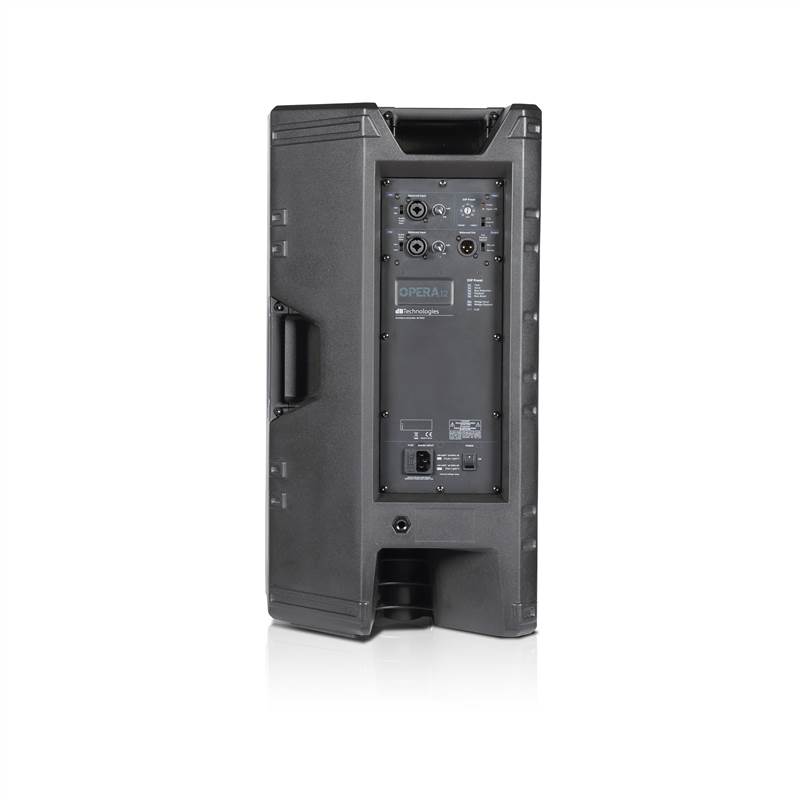

Inputs are 1xCombo (XLR/Jack 6.3 mm) MIC/Line with 1x XLR Male (CH1 Link/Mix OUT) on the output and Rotary Encoder (8 Presets) system presets. The enclosure is Polyporpylene PP. Handles are 1 on left Side, 1 on Top. It takes a D36 mm. Rigging is via 2XM10 on Top + 1x M10 on Back. It weighs 14.3 kg (31.53 lbs).
| Speaker Type | 2-Way Active Speaker |
|---|---|
| Frequency Response [-10dB] | 52 - 20.000 Hz |
| Frequency Response [- 3dB] | 67 - 19.600 Hz |
| Max SPL | 129 dB |
| HF | 1 in Exit, 1.4 v.c. |
| Type HF | Compression driver |
| Horizontal Directivity | 100 deg (85 deg up/120 deg down) |
| Vertical Directivity | 85 deg (+ 25 deg/-60 deg) |
