Datavideo Tally Light - 4 Piece Set

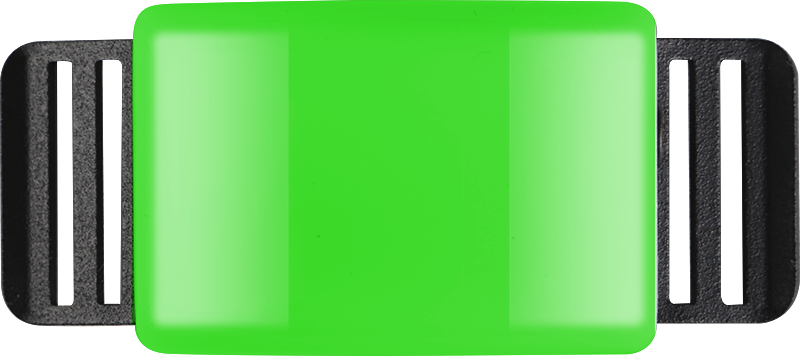

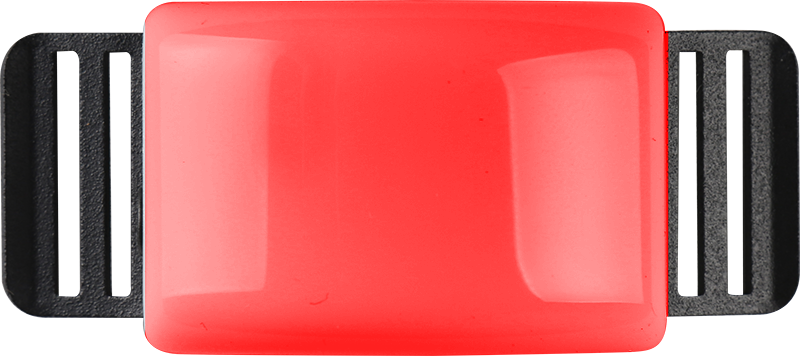

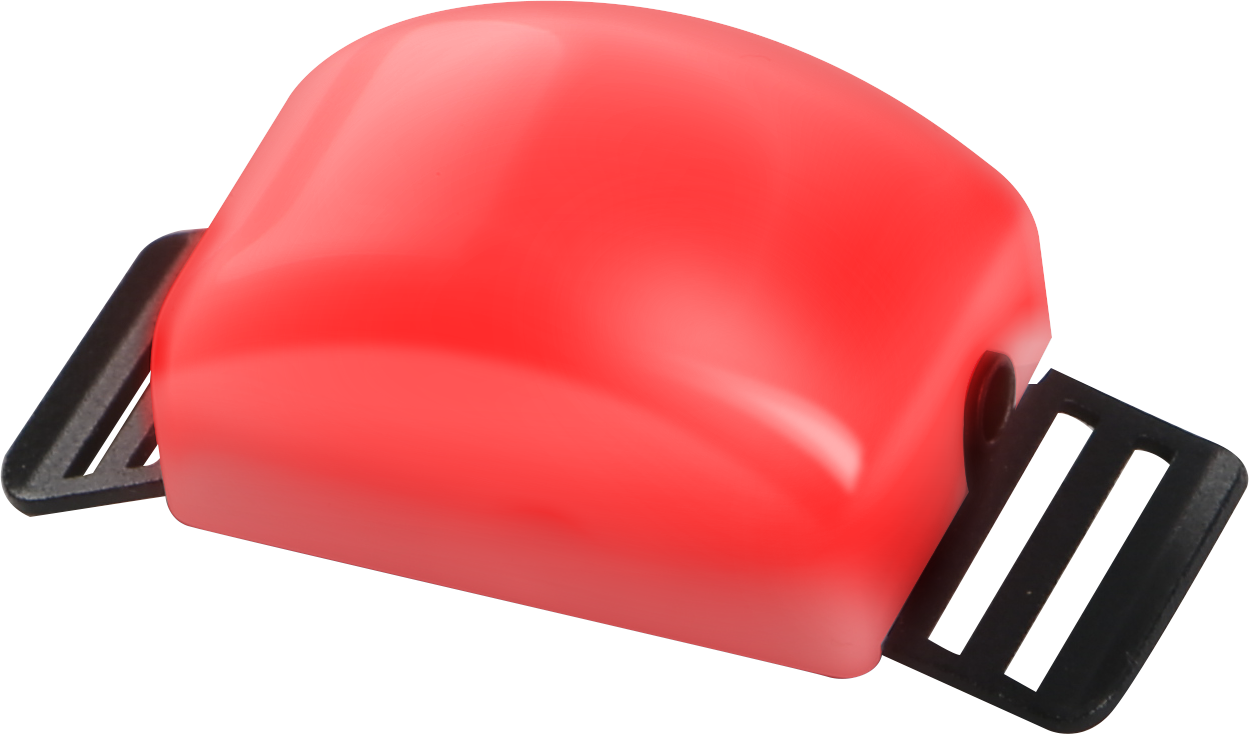

The TD-3 is a four-piece LED tally light set for Datavideo ITC-100 series intercom systems, giving on-air talent and camera operators an unmistakable at-a-glance cue. Each light shows green when a camera is cued and red when it is live, driven by the tally output of the intercom base station so the whole crew stays in sync during a multi-camera show.

The set ships with four CB-7 tally cables that carry the GPI signal on a 3.5 mm connection, plus Velcro straps to fasten the lights to cameras or rigs. Each light connects on a 3-pin XLR with 12V power and ground and draws only about 100 mA, making it an easy add-on to an ITC-100, ITC-200, or ITC-300 setup.

Set4 LED tally lights + 4 CB-7 tally cables
IndicationGreen (cued) or Red (live)
Tally CableCB-7, 1.2 m, 3.5 mm GPI
Light Connector3-pin XLR, 12V + ground
Power12V / 100 mA max per light
CompatibilityITC-100 / ITC-200 / ITC-300
Included4 tally lights, 4 GPI cables, Velcro straps
TD-3 Tally Lights and the Datavideo ITC-100 Intercom with an ATEM TV Studio
