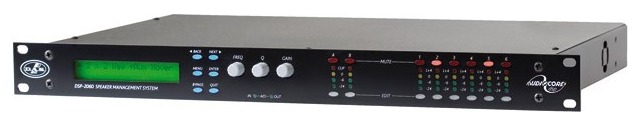

DAS Audio DSP-2060A Loudspeaker Management Processor
The DSP-2060A takes two inputs out to six outputs, sized for a 3-way active loudspeaker plus sub or a small multi-zone install. Every output carries 9 bands of parametric EQ and a 48 dB/octave crossover filter, and the unit stores up to 650 ms of delay per output for time-aligning drivers or zones.
Frequency response covers 20 Hz - 20 kHz at 116 dB dynamic range and 0.02% THD+N, with a front-panel 2 x 24-character LCD for local editing. It fits a 19-inch, 1U rack space, runs on a universal 60-250V supply, and connects to DAS AudioCore software over RS232 or RS485 for remote system control.
| Inputs / Outputs | 2 in / 6 out |
|---|---|
| Output EQ | 9 parametric bands + 48 dB/oct crossover |
| Frequency Response | 20 Hz - 20 kHz |
| Dynamic Range | 116 dB |
| THD+N | 0.02% |
| Maximum Delay | 650 ms |
| Dimensions (H x W x D) | 1.75 x 19.0 x 11.80 in |
| Net Weight | 7.28 lbs |
