CueScript TM Series On-Air Talent Monitor

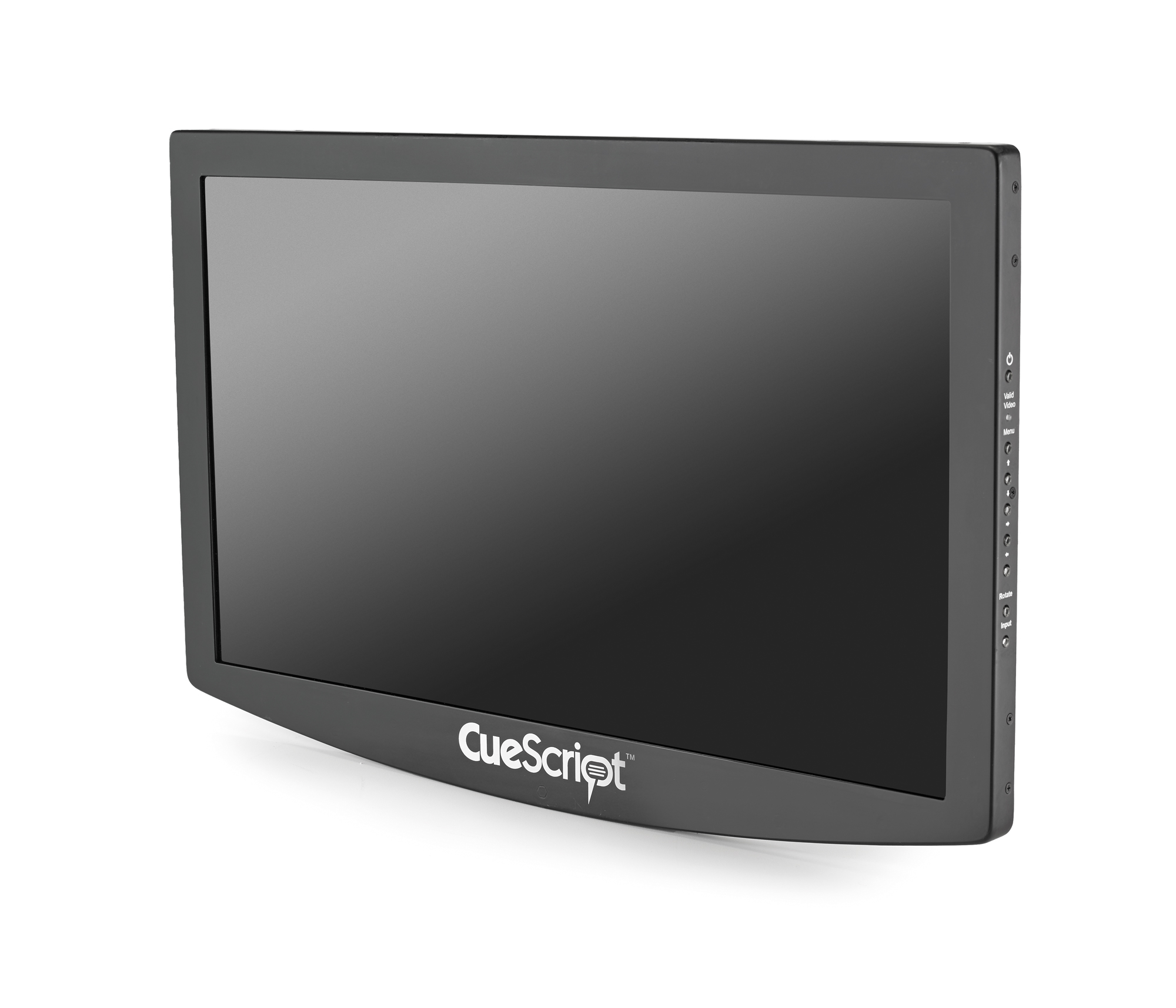

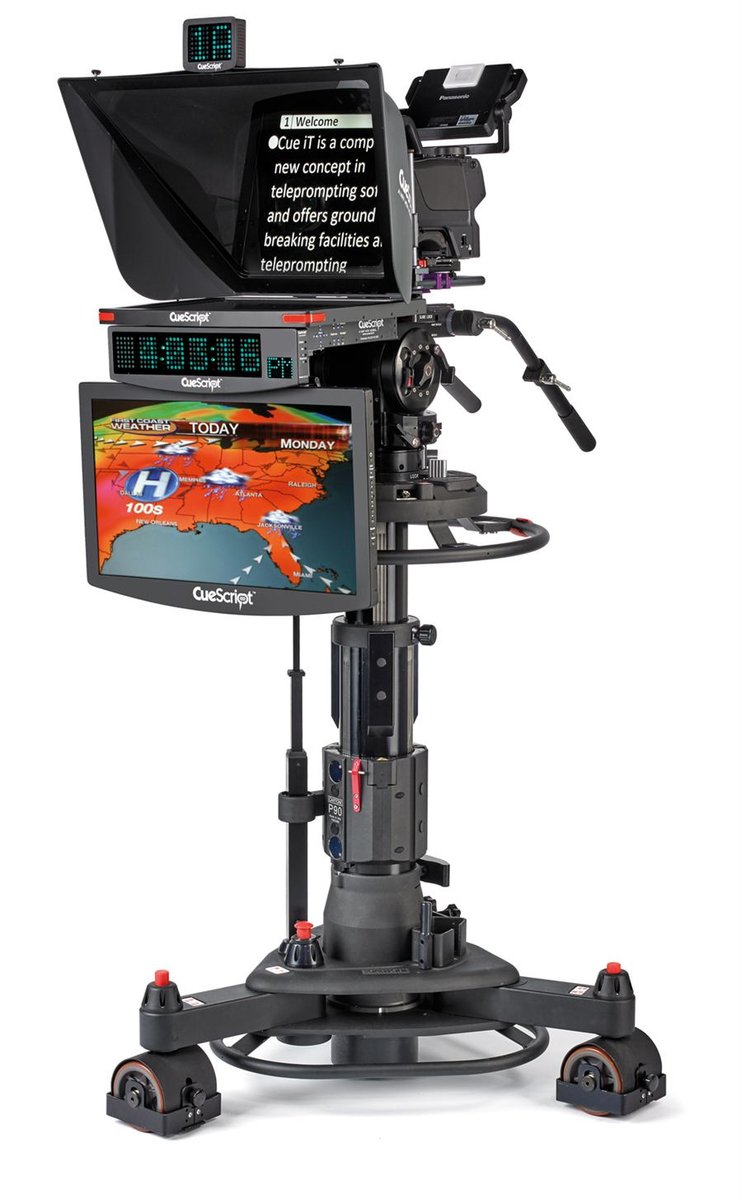

CueScript's TM series is an on-air talent monitor: a curved-face display that mounts to the back of a CSM or CSMV2 prompter monitor so talent can see a clean program or graphics feed while looking at the camera. The curved design and 174-degree viewing angle keep it readable at typical anchor-desk distances, and it draws power straight from the prompter monitor it is attached to.

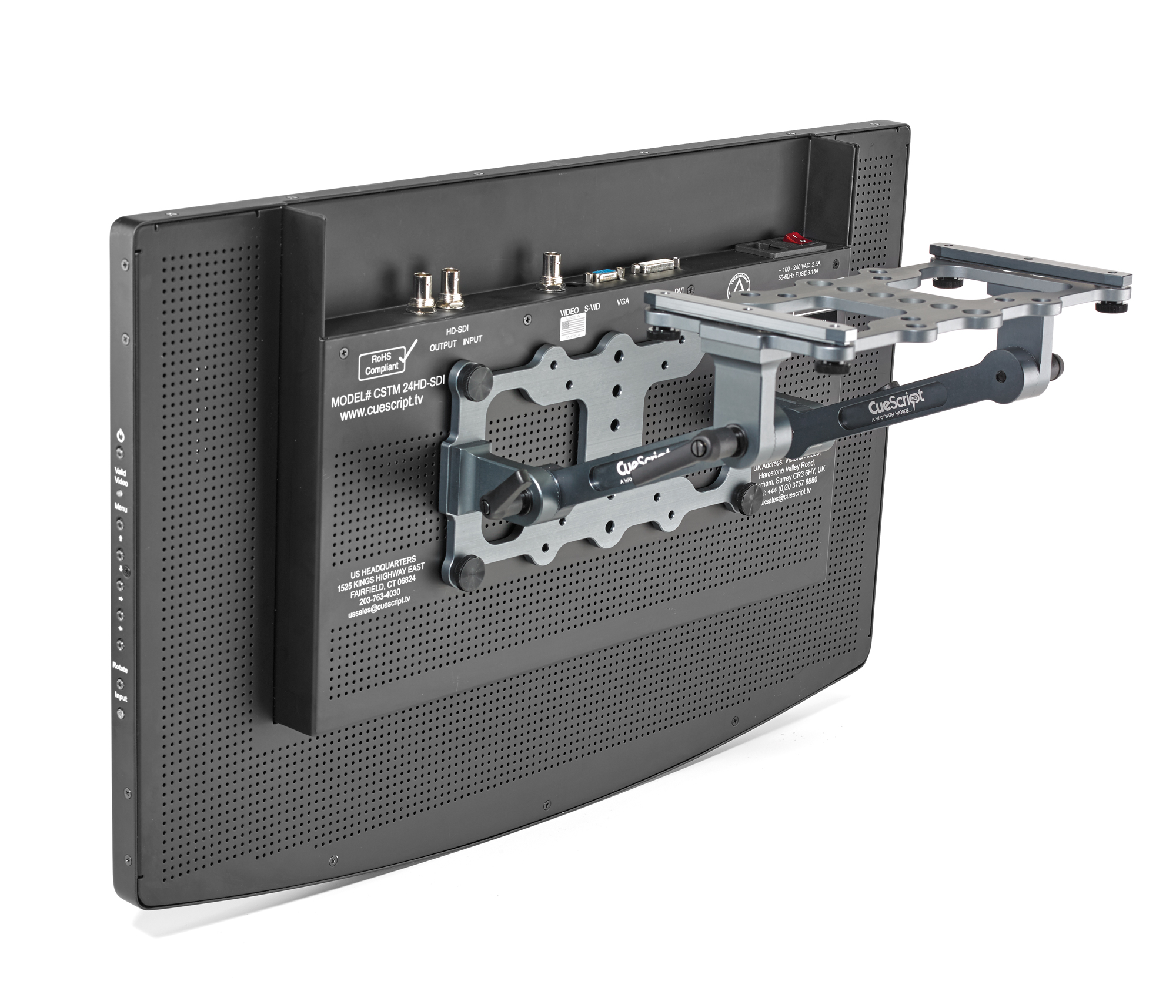

Both screen sizes are sold as a bare monitor or as a package with a talent monitor mount (CSTMM for 22-inch, CSTMML for 24-inch) and an XLR power cable included, so a studio can order exactly the hardware it needs to add a talent feed to an existing rig.
| Screen Size | 22 in (TM22/TMP22) or 24 in (TM24E/TMP24) diagonal |
|---|---|
| Resolution | 1920 x 1080 (24 in model) |
| Brightness | 1500 cd/m2 |
| Design | Curved face, 174-degree horizontal and vertical viewing angle, LED backlight |
| Connectivity | Autosensing PAL/NTSC/HD-SDI/SD-SDI/VGA/DVI/HD component, composite 75 ohm |
| Power | Powered from the CSM/CSMV2 prompter monitor it mounts to |
| Kit Contents (TMP models) | Talent monitor, mount (CSTMM/CSTMML) and XLR power cable |
