Crestron USB-EXT-3 KIT USB 3.2 Extender over CAT6a/7 Cable

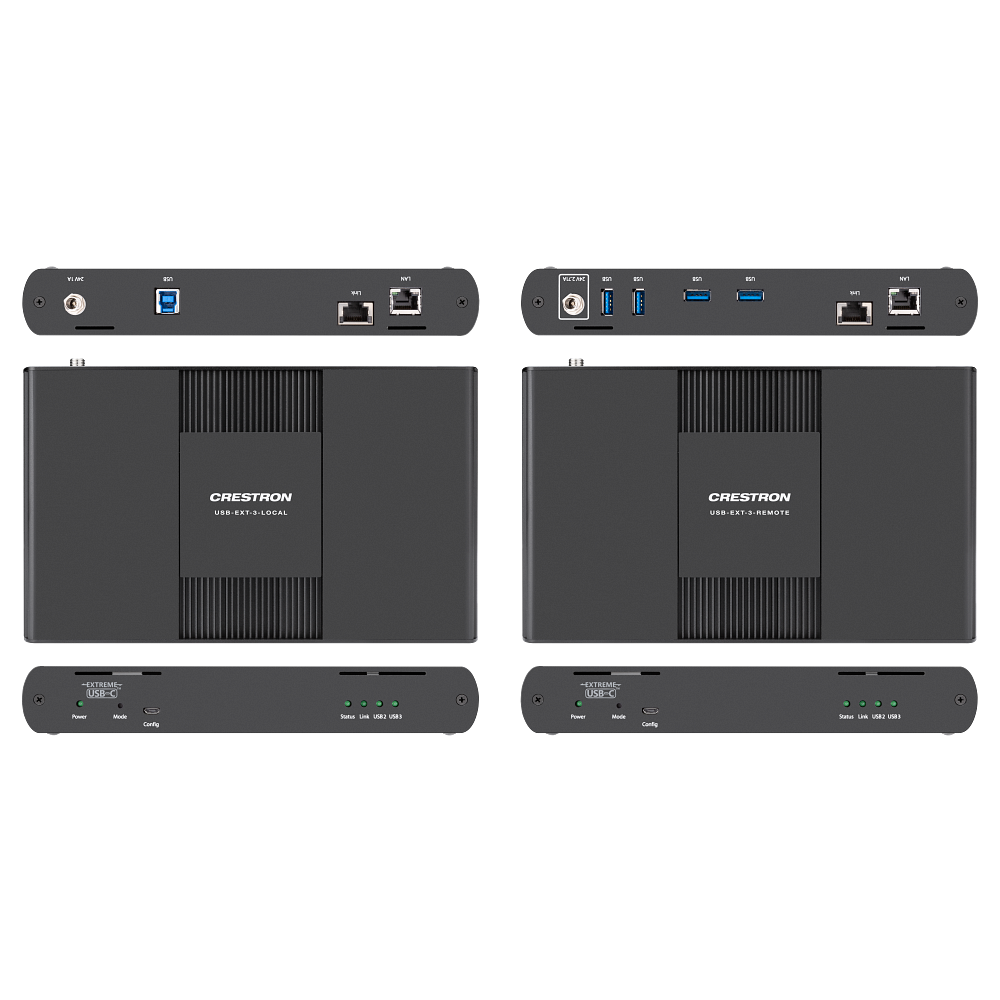

The USB-EXT-3 kit extends USB 3.2 Gen 1 at up to 5 Gbps, along with USB 2.0 and 1.1 simultaneously, up to 330 ft over CAT6a or CAT7 cable. It is specified for cameras and video capture devices using isochronous transport, which is exactly the traffic that ordinary USB extenders drop frames on.

Both endpoints also carry a 100BASE-TX/1000BASE-T LAN passthrough port, so one cable run serves the USB device and the network device at the far end. The local box presents a USB Type-B host port; the remote supports up to 30 devices through a maximum of three hubs. Power packs are included at both ends, 1 A at 24 VDC locally and 2.71 A remotely, the chassis are black anodised aluminium, and the system is fanless with no acoustic noise.

USB SpeedsUSB 3.2 Gen 1 up to 5 Gbps, USB 2.0 up to 480 Mbps, USB 1.1 up to 12 Mbps
ReachUp to 330 ft (100 m) over CAT6a or CAT7 cable
Maximum Devices30 devices using 1 USB port on the remote endpoint with a maximum of 3 hubs
Ethernet100BASE-TX/1000BASE-T LAN passthrough at both endpoints

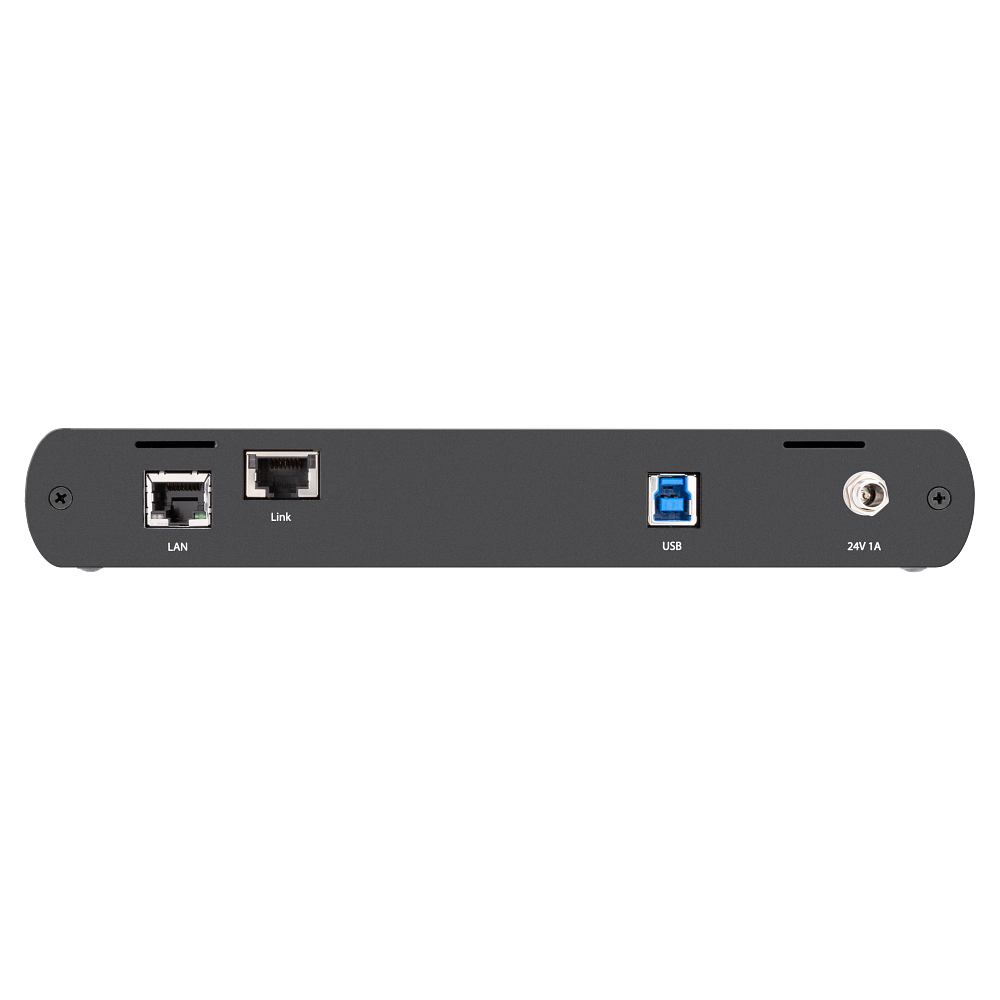

Local Connectors(1) USB Type-B host port, (1) RJ-45 link, (1) RJ-45 LAN, 24 VDC power input
PowerLocal 1 A at 24 VDC, 24 W; remote 2.71 A at 24 VDC, 41 W; power packs included
EnvironmentalOperating 32 to 122 degrees F (0 to 50 degrees C), fanless, no acoustic noise

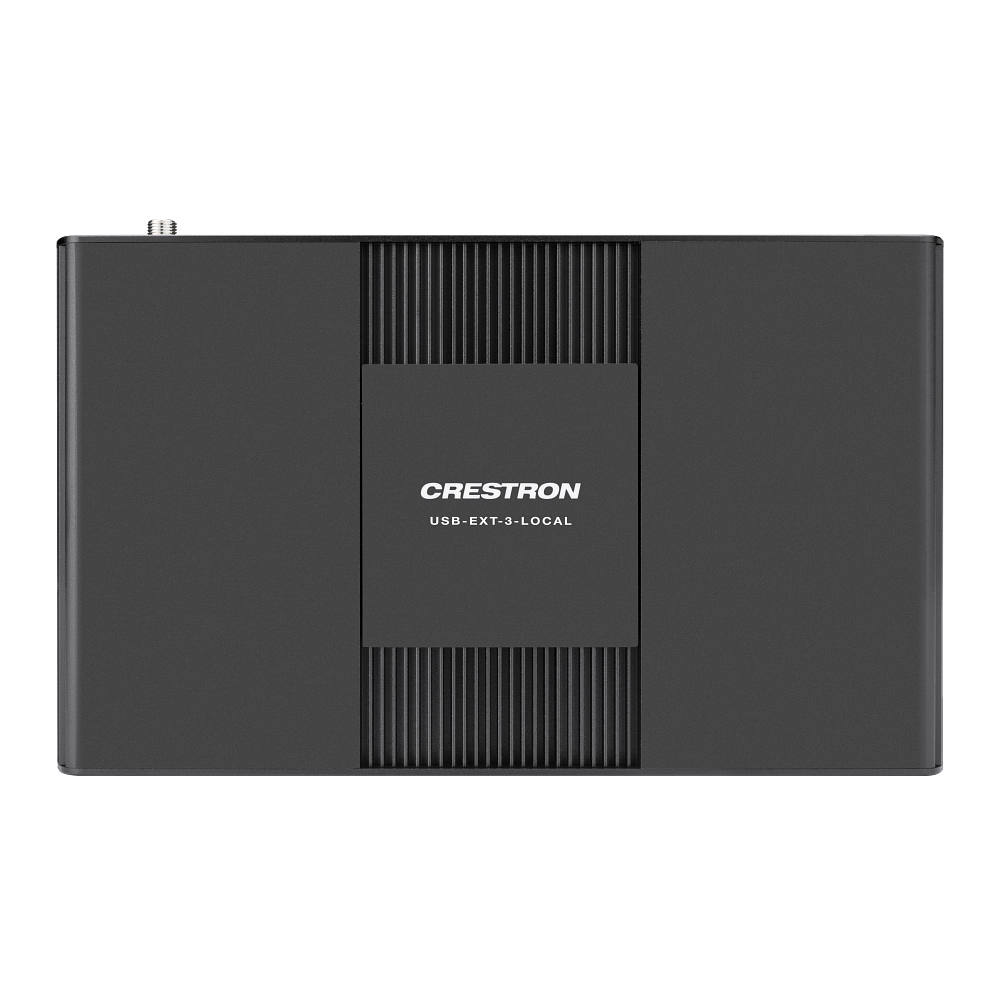

EnclosureBlack anodized aluminum, freestanding or surface mountable, mounting kit included
