Crestron TSW-770-LB Room Availability Light Bar for TSW-770 Series

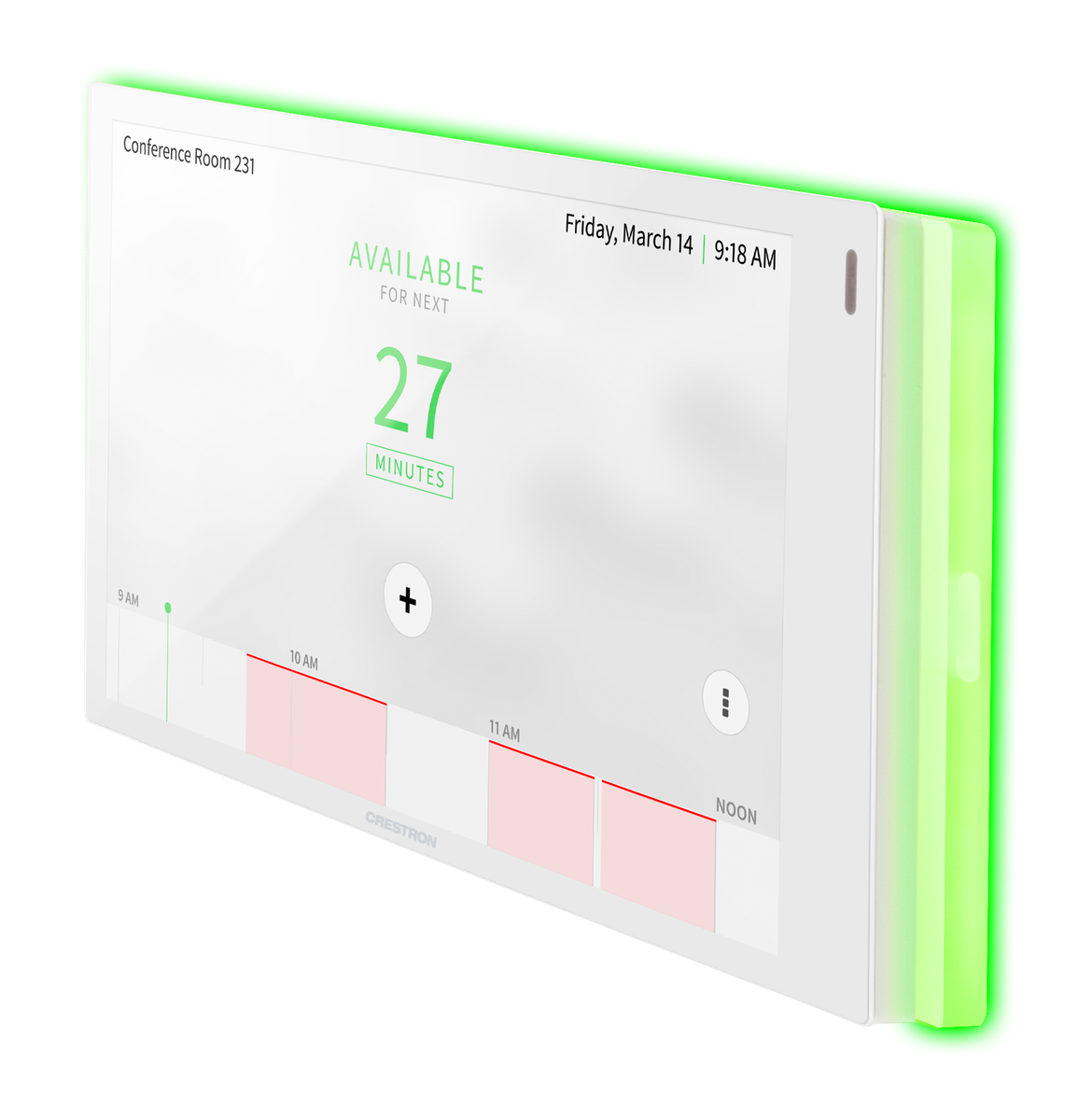

The TSW-770-LB is what makes a room status readable from the end of a corridor rather than only at the door. It mounts to a TSW-770 or TSS-770 series touch screen and casts 180 degrees of RGB light, green when the room is available and red when it is reserved. Colour mixing is configurable from the touch screen or from a control program, so a site can use its own scheme.

It is a two-piece assembly: a control module that screws to the back of the panel and a light-diffusing plastic bar that sandwiches between the panel and the wall, which is why it needs 1-5/8 in. of mounting depth. Power and data are one attached USB Type-A lead into the panel host port, drawing 2.5 W and running at 1.1 W typical. The touch screen must be on a PoE+ source when a light bar is fitted.

Function	Room availability light bar for TSW-770 and TSS-770 series touch screens
Illumination	RGB LED, 180 degree visibility, alternating red and green availability
Connection	(1) attached lead with USB Type-A male connector into the touch screen host port
Power	2.5 W USB power, 1.1 W typical consumption, 5 BTU/hr
Construction	Two-piece: control module plus light-diffusing plastic light bar panel
Mounting Depth	1-5/8 in. (41 mm) minimum
Dimensions	4.17 in. H x 7.03 in. W x 2.26 in. D (106 x 179 x 57 mm)
