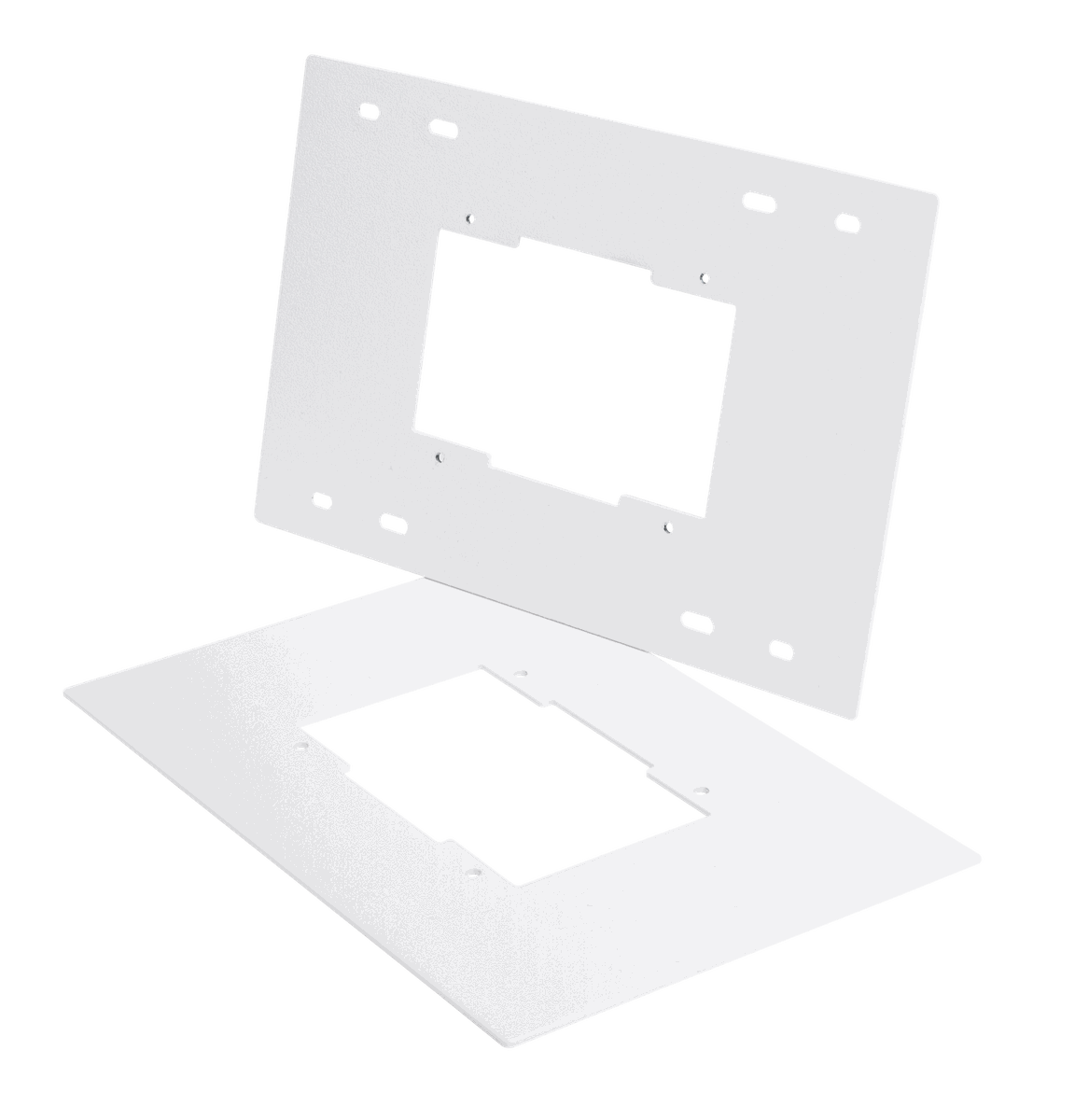

Crestron TSW-770/1070-RMB Retrofit Mounting Bracket

Replacing an older wall panel usually means an oversized hole and a drywall repair. These retrofit brackets take that job off the schedule: each one mounts over the existing back box or cutout with the hardware provided and presents a clean face for a current TSW-770, TSS-770, TSW-1070, or TSS-1070 touch screen.

Pick the bracket by what is coming off the wall. The RMB-1 converts an APAD, CT-1000, LC-1000, or TPS-2000L installation; the RMB-2 converts a TPS-4L. Both are metal brackets with a cover plate and sit about 0.70 in. proud of the wall with a 770 series screen, 0.72 in. with a 1070.

Compatible ModelsTSW-770, TSS-770, TSW-1070, and TSS-1070
RMB-1 Converts FromAPAD, CT-1000, LC-1000, or TPS-2000L
RMB-2 Converts FromTPS-4L
MaterialMetal mounting brackets and cover plate
MountingMounts over an existing back box or wall cutout using provided mounting hardware
Dimensions (RMB-1 with TSW-770)4.80 in. H x 7.43 in. W x 0.70 in. D (122 x 189 x 18 mm)
Dimensions (RMB-2 with TSW-770)4.49 in. H x 7.12 in. W x 0.70 in. D (114 x 181 x 18 mm)
Dimensions (with TSW-1070)5.87 in. H x 9.46 in. W x 0.72 in. D (149 x 240 x 18 mm)
