Crestron TSW-570/770-RMK-1 Rack Mount Kit for TSW-570 and TSW-770 Series

The TSW-570/770-RMK-1 mounts a TSW-570 or TSW-770 series touch screen into a standard 19 in. EIA rack, taking 3U of front panel space. It is the answer for a rack room, a head end, or a portable system that needs a local touch interface where there is no wall.

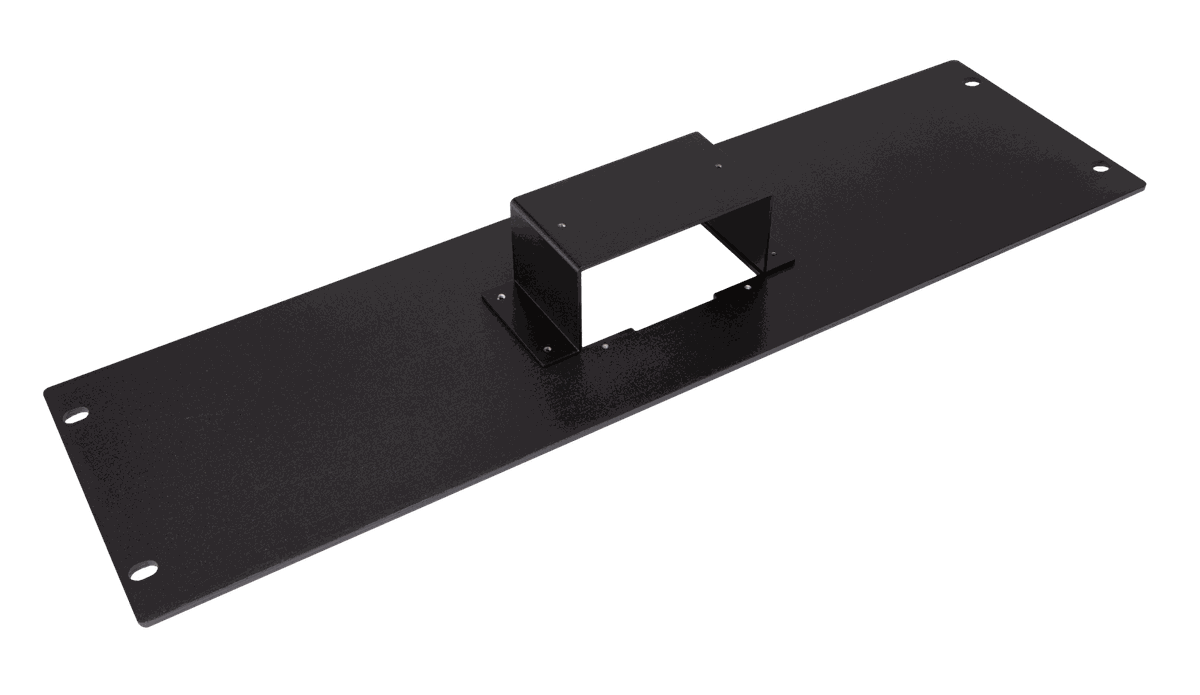

The plate is metal and, with a panel installed, the assembly is 5.23 in. tall by 19.00 in. wide, projecting 0.56 in. behind the rails with a TSW-570 or 0.58 in. with a TSW-770. Rack screws are not included.
