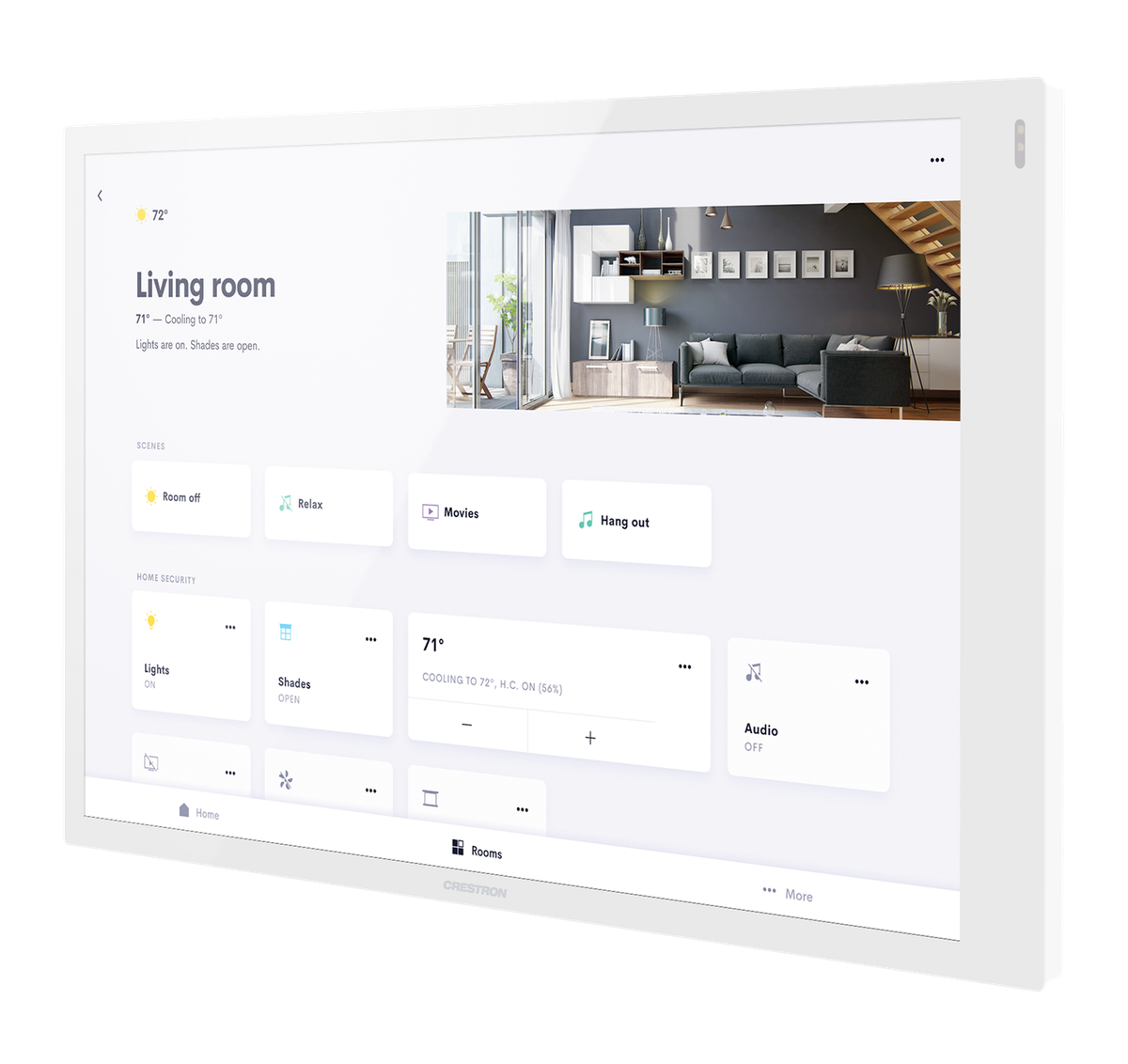

Crestron TSW-1070R-W
The TSW-1070R-W is the white version of the Crestron Home 10.1 inch wall mount touch screen, identical in hardware to the black TSW-1070R-B. It ships running the Crestron Home OS application, so it drops into a Crestron Home residential system as a wall interface for lighting, shades, climate, audio, and video without custom programming. The high-resolution WUXGA display keeps the Crestron Home interface sharp, and H.265 and H.264 streaming video bring a camera or intercom feed onto the panel.
Installation is a single Ethernet run, with PoE+ supplying power over one cable and Wi-Fi available for wireless network connections. The screen is compatible with Wall-Smart flush mounting accessories, and the white finish suits lighter walls and living spaces.
| Operating System | Crestron Home OS |
|---|---|
| Display | 10.1 in. (257 mm) TFT active matrix color LCD |
| Resolution | 1920 x 1200 pixels, 16:10 WUXGA |
| Brightness | 400 nits |
| Video | H.265 and H.264 streaming; Rava SIP intercom |
| Network | 100BASE-TX Ethernet with PoE+, dual-band 802.11a/b/g/n/ac Wi-Fi |
| Dimensions | 5.87 x 9.46 x 2.01 in. (149 x 240 x 51 mm) |
| Weight | 1.61 lb (730 g) |
