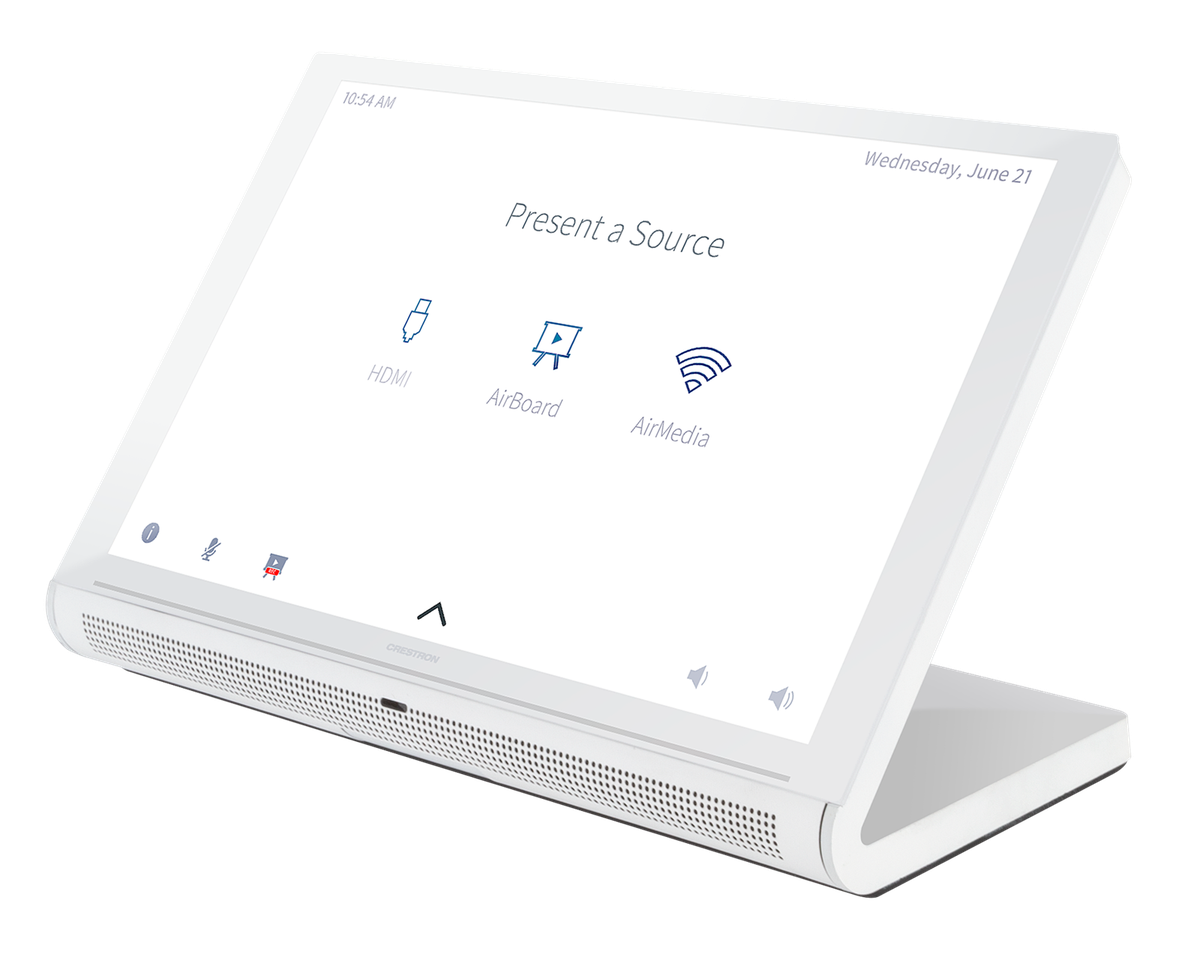

Crestron TS-1070-GV 10.1 in. Tabletop Touch Screen, Government Version
The TS-1070-GV is the government build of the 10.1 in. TS-1070 tabletop touch screen. Crestron strips the microphone, the Bluetooth communications beacon, and Wi-Fi from the standard model so the panel can be deployed where an open radio or open microphone is not allowed. The 1920 x 1200 WUXGA capacitive display, the graphics engine, and the mounting footprint are otherwise the same as the standard TS-1070.
That leaves a wired-only panel: one Ethernet run supplies control, PoE+ power, and H.265 or H.264 streaming video from an IP camera, an encoder, or a DigitalMedia switcher. Built-in speakers carry touch feedback and program audio, a USB 2.0 Type-A port takes supported Crestron accessories, and the panel is available in black smooth or white smooth to match the rest of the estate.
| Display | 10.1 in. (257 mm) TFT active matrix color LCD |
|---|---|
| Resolution | 1920 x 1200 pixels, 16:10 WUXGA |
| Brightness | 400 nits (cd/m2), 1000:1 contrast |
| Touch Screen | Projected capacitive, 5-point multitouch capable |
| Omitted for Security | No microphone, no Bluetooth beacon, no Wi-Fi |
| Video | H.265, H.264 (MPEG-4 part 10 AVC), MJPEG |
| Network | 100 Mbps Ethernet with PoE+ PD, IEEE 802.1X |
| Housing | Plastic, smooth black or white finish, edge-to-edge glass |
| Dimensions | 5.29 in. H x 9.63 in. W x 4.67 in. D (134 x 245 x 119 mm) |
